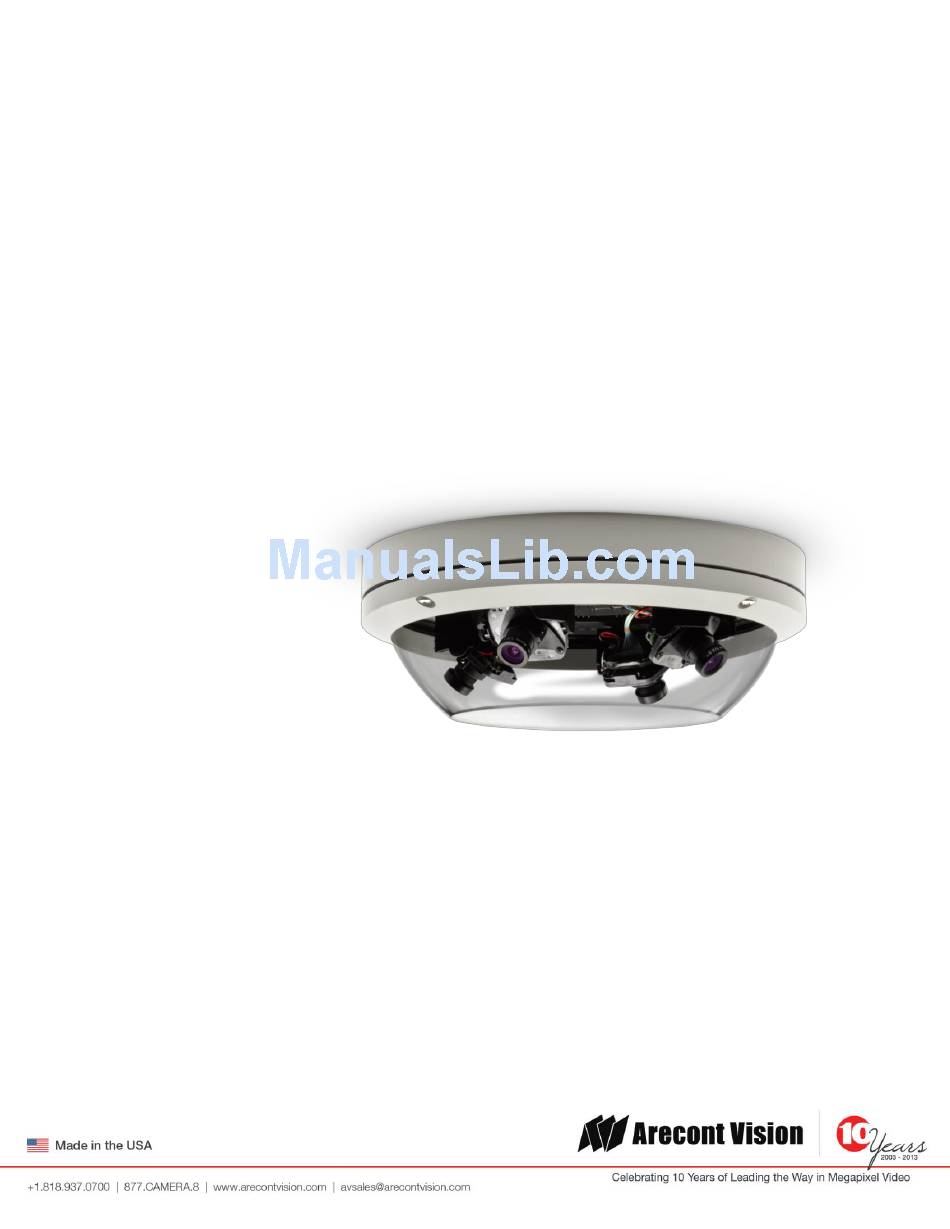

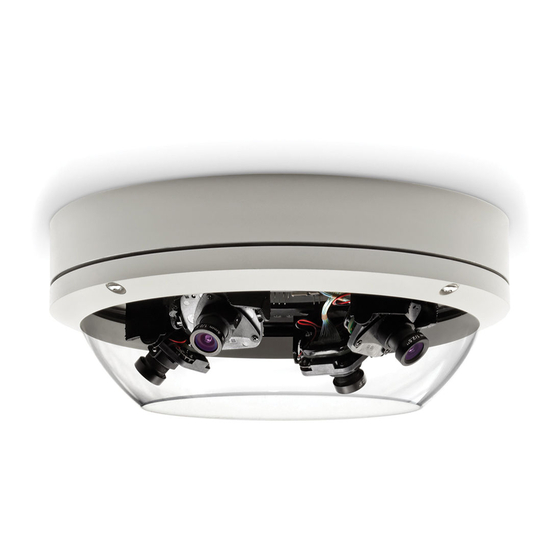

- Page 1 SurroundVideo® Omni INSTALLATION MANUAL AV12176DN-NL AV12176DN-28 AV12176DN-08 AV20175DN-NL AV20175DN-28 AV20175DN-08...
-
Page 2: Table Of Contents
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual MicroDome™ Surface Mount Installation Contents Package Contents ............................... 3 Warranty Information ..............................4 Installation Overview ..............................5 Camera Setup ................................6 Camera Adjustment ..............................7 Camera Alignment ..............................9 Installation ................................10 Changing the Lens .............................. -
Page 3: Package Contents
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Package Contents Item Description MegaPixel Camera SurroundVideo® Omni Mounting Kit Ceiling template 3x Mounting Screws (#6x1” for wood or sheet metal) 3x Drywall/Masonry Mounting Anchors Ceiling Gasket Network Patch Cable Security Torx Tool... -
Page 4: Warranty Information
3 Year Limited Warranty ARECONT VISION warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that: (a) each Product shall be free from material defects in material and workmanship for a period of thirty-six (36) months from the date of shipment (the “Warranty Period”);... -
Page 5: Installation Overview
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Installation Overview Ceiling Gasket NPT Port Camera Housing Camera Gimbals (4X) Mounting Screws Gasket Dome Cover Captive Fasteners Page | 5 support@arecontvision.com... -
Page 6: Camera Setup
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Camera Setup The SurroundVideo® Omni is user configurable. Each individual sensor can be positioned in a variety of ways. Below are some example configurations (top left to bottom right) 1. 270° 2. Straight Line 3. 360° or Hallway 4. -
Page 7: Camera Adjustment
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Camera Adjustment To position a sensor simply loosen the captive fastener to release the camera assembly from the track plate. #4-40 Screw Captive Fastener Track Plate Next, position the camera in the desired location on the track plate. Screw holes around the circumference are spaced in 5 degree increments. - Page 8 SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Sensor numbering is indicated on the track plate. The number on the track plate corresponds to the sensor number in the camera software. Sensor positioning and alignment should be considered before camera installation. It is easier to adjust the individual camera positions before the camera is installed into a ceiling.
-
Page 9: Camera Alignment
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Camera Alignment Alignment of the individual cameras is critical to setup. The individual cameras when placed on the Tech circumference of the track must be in a counterclockwise sequence to create proper alignment when viewing the camera. -
Page 10: Installation
6. After plugging in the network cable check that the indicator LED’s are indicating the desired conditions (see LED Indicator table). 7. Use Arecont Vision software AV200 located on the CD or available for download at our website (www.arecontvision.com) for camera discovery and setup (see Instruction Manual located on CD or available on our website). -
Page 11: Changing The Lens
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Focusing the Cameras 1. Open a live view of the camera from your web browser or the AV Software provided (AV200). 2. Loosen the lens lock screw using a phillips head screwdriver (if necessary). Only do so if lens seems very tight when turning. -
Page 12: Accessing The Digital Input And Output Connector
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Focusing Alternate Lenses When focusing the 6mm, 8mm, 12mm or 16mm lens options you will encounter a focus shift when using the bubble. To account for this follow these steps: 1. Focus the camera without the bubble. -
Page 13: Digital Input And Output
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Digital Input and Output Use 4 position connector inside camera housing to interface with Digital I/O. DIGITAL I/O BLACK IN - WHITE IN + YELLOW OUT - ORANGE OUT + Electrical Characteristics... -
Page 14: Auxiliary Power
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Auxiliary Power If the camera is powered by a separate outside AC or DC power source, run the supplied power cable through the access hole on the camera housing and connect the power cable to the 2-position connector on the main camera board. -
Page 15: Led Indicators
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual LED Indicators Status Description Yellow Flashing Link has been established. Solid Normal Operation. None No connection. Green Flashing Camera has been accessed. Normal operation. Solid None No Connection. Page | 15... - Page 16 Swap the “troubled” camera with a known good camera to see if the problem follows the camera or stays at the location. Contact Arecont Vision Technical Support one of three ways: Online Portal : Support.ArecontVision.com Phone : 1.818.937.0700 (option #1) Email : support@arecontvision.com...
-
Page 17: Installation Best Practice
SurroundVideo® Omni Installation Best Practice Adding Teflon thread sealing Wind Vinyl electrical Begin Installation tape on all cables tape to all male threads connections Connect ¾” NPT conduit pipe to junction box adapter Does conduit pipe go through the wall? Tighten all camera Make sure position of conduit hole is at the lower side screws and ¾”... - Page 18 Arecont Vision SurroundVideo Omni Installation Manual Camera Discovery, Setup, and Configuration For camera discovery and setup please use Arecont Vision software AV200 which you can find on the CD included with your camera or at: http://www.arecontvision.com/softwares.php The user manual for the AV200 software is included on the CD and is also located on our website.
-
Page 19: Wall Mount Accessory (Av-Wmjb)
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Wall Mount Accessory (AV-WMJB) Gasket -1.5” NPT Gasket Installation Notes: 1. 4x mounting screws are #10x1” wood or sheet metal screws (4x mount anchors also included). 2. Always ensure gaskets are properly seated. -
Page 20: Pendant Mount Accessory (Av-Pmjb)
SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Pendant Mount Accessory (AV-PMJB) Gasket Installation Notes: Gasket 1. 4x mounting screws are #10x1” wood or sheet metal screws (4x mount anchors also included). 2. Always ensure gaskets are properly seated. - Page 21 SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Mount Template Page | 21 support@arecontvision.com...
- Page 22 SurroundVideo® Omni ® Arecont Vision SurroundVideo Omni Installation Manual Contact Arecont Vision Technical Support one of three ways: Online Portal : Support.ArecontVision.com Phone : 1.818.937.0700 (option #1) Email : support@arecontvision.com Page | 22 support@arecontvision.com...
