SurroundVideo®   O mni   G 2
3. Remove the dome cover and set aside. Remove the protective foam and discard.
4. If mounting the camera outside or in a wet environment, thread the camera cable through the
hole on the supplied rubber gasket and align with the three holes on the top of the housing.
Ensure the gasket is properly seated flush with the camera housing.

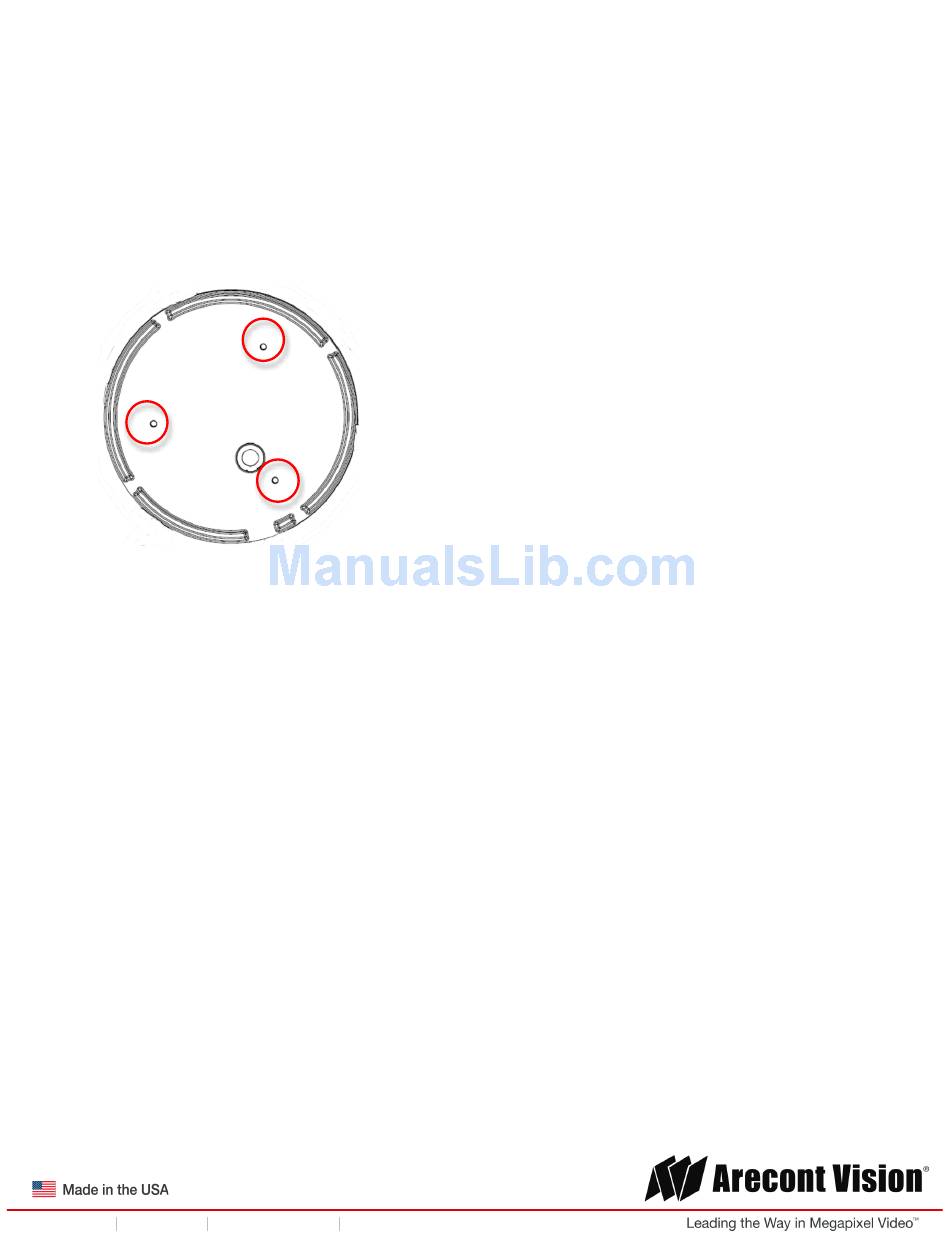

Figure 2: Mount the Surface mount to the wall or ceiling using the three holes on the housing
NOTE: If you use the side connection of the NPT port, remove the cap covering the side
entrance, otherwise; leave the cap in place. If using the NPT port, always use Teflon tape
around the threads to ensure proper sealing. The conduit fits ¾" NPT standard. Ensure NPT
port is facing downward.
5. Using the three holes on the top of the camera housing, use the supplied screws and attach to
the mounting surface.
Page | 14
