SurroundVideo® O mni G 2
After connections are made, ensure that the watertight compartment is tightly closed and cables and
conduits are properly sealed to prevent ingress of water.

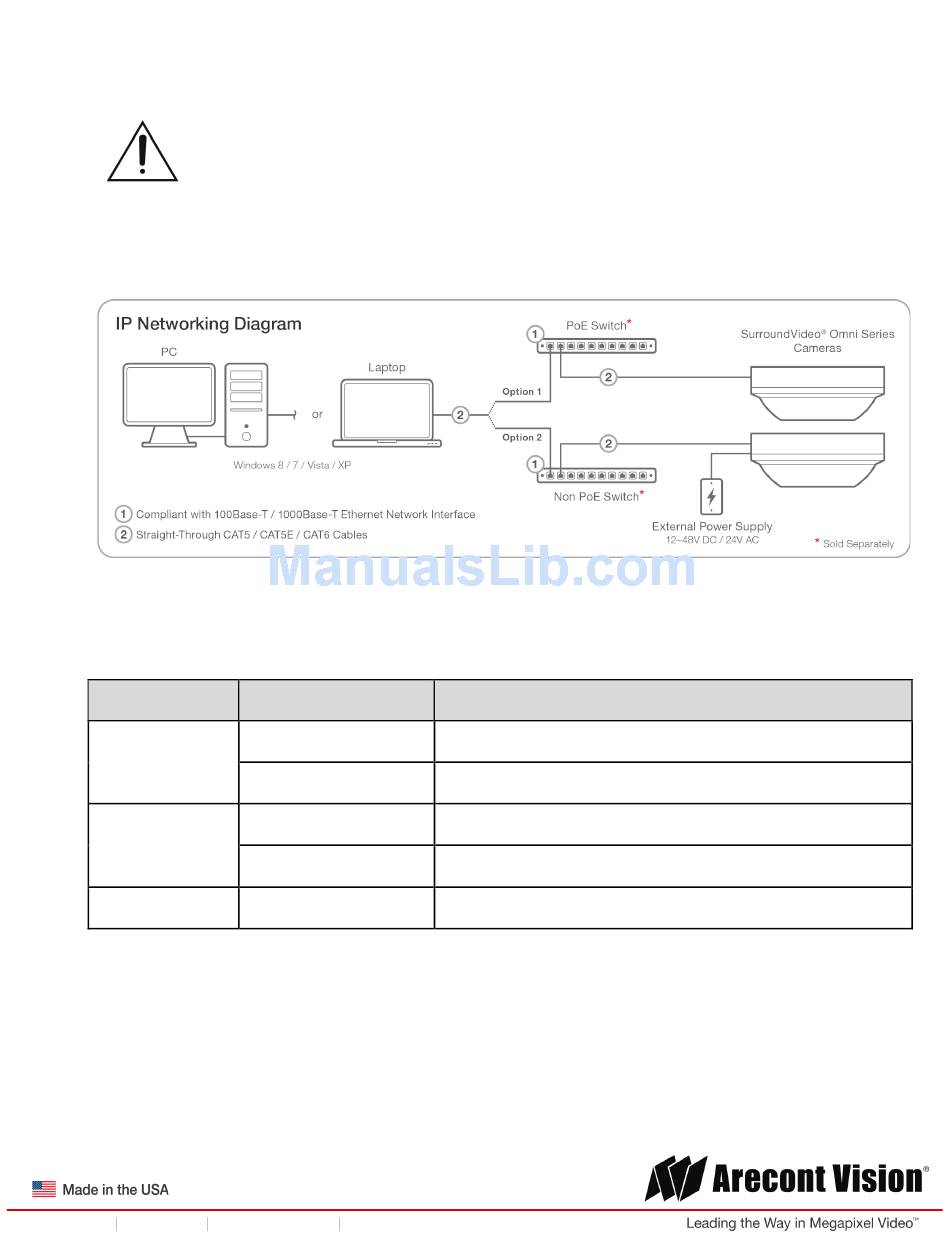

3. Connect the PoE switch to your computer's network port using an Ethernet cable.
NOTE: A yellow LED on the rear of the camera illuminates after a few seconds.
The flashing yellow LED indicates that a link to your computer has been established.
•
A green LED will blink when the camera has been accessed.
•
LED
Yellow
Green
None
NOTE: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and
with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized
wire suitable for the application.
Page | 34 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8
CAUTION! Make the connections inside a watertight compartment. Isolate unused power
wires individually.
Status
Flashing
Solid
Flashing
Solid
None
www.arecontvision.com avsales@arecontvision.com
Description
Link has been established.
Normal Operation.
Camera has been accessed. Normal operation.
N/A
No Connection.
