- Page 1 SurroundVideo® Omni SX Installation Manual Models: 12 Megapixel • AV12975DN-NL • AV12975DN-28 • AV12975DN-08 • AV12976DN-NL • AV12976DN-28 • AV12976DN-08 20 Megapixel • AV20975DN-NL • AV20975DN-28 • AV20975DN-08...
-
Page 2: Table Of Contents
SurroundVideo® Omni SX Installation Manual Contents Package Contents ..............................3 In-ceiling Mount ..............................10 Pendant Mount ..............................12 Surface Mount................................ 14 Wall Mount ................................17 Pole Mount ................................18 Corner Mount ................................. 20 Electrical Box Adapter ............................22 Setting up the Cameras ............................23 Aligning the Cameras ............................ -
Page 3: Package Contents
This equipment should be unpacked and handled with care. The original packaging is the safest container in which to transport the unit and can be used if returning the unit for service. The packaging contains: • One (1) Arecont Vision Camera • One (1) mounting template •... - Page 4 Product that (i) has been modified or altered without ARECONT VISION COSTAR’s written authorization; (ii) has not been used in accordance with applicable documentation; (iii) has been subjected to unusual stress, neglect, misuse, abuse, improper storage, testing or connection;...

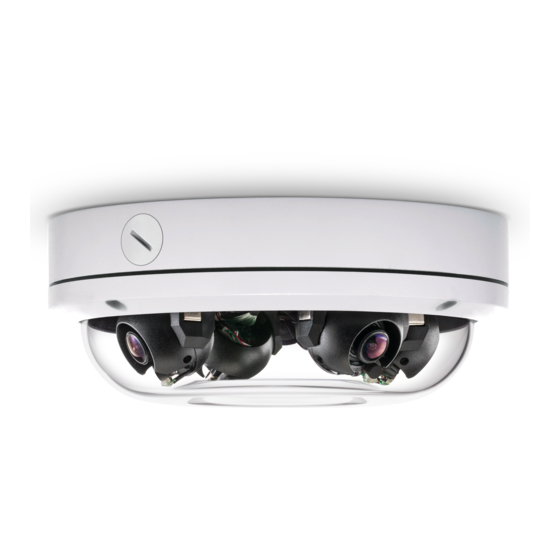

- Page 5 SurroundVideo® Omni SX Installation Manual Camera Overview The SurroundVideo® Omni SX, next generation multi-sensor, multi-megapixel dome camera pushes the ease of installation even further providing users with four (4) remote focus lens options on a unique 360° magnetic track encompassed in a single indoor/outdoor, impact-resistant housing. The customization of this camera is unparalleled offering a range of interchangeable lens options for each individual sensor including 2.1, 2.8, 4, 6, 8, 12 and 16mm options.
- Page 6 SurroundVideo® Omni SX Installation Manual Installation 1. Determine a secure location to mount the camera. 2. Use the supplied security L-key, to loosen the four (4) screws securing the dome cover. 3. Remove the dome cover and protective foam. Do not remove screws from the dome cover. The SurroundVideo®...
- Page 7 SurroundVideo® Omni SX Installation Manual Ensure you have the proper compatible mounting parts prior to starting your installation: Pendant mount Reference # Pendant Mount Components Required Pendant mount (AV-PMJB-W) with integrated junction box SurroundVideo® Omni SX camera SO-CAP-W mounting cap Wall mount Reference # Wall Mount Components Required...
- Page 8 SurroundVideo® Omni SX Installation Manual Pole mount Reference # Mount Type Pole Mount Components Required AV-WMJB-W wall mount SO-CAP-W mount cap Pole mount SurroundVideo® Omni SX camera AV-PMA-W pole mount adapter Corner mount Reference # Mount Type Corner Mount Components Required AV-WMJB-W wall mount SO-CAP-W mount cap Corner mount...
- Page 9 NOTE: It is recommended to conduct periodic inspections of the installation. Rust on the metal parts or screws may result in damage to the camera. 4. Use the Arecont Vision software AV IP Utility located on the CD or available for download at our website (www.arecontvision.com) for camera discovery and setup (see Instruction Manual located on the CD or available on our website).
-
Page 10: In-Ceiling Mount
SurroundVideo® Omni SX Installation Manual In-ceiling Mount To properly flush mount the SurroundVideo® Omni SX to a drop ceiling or similar surface, a flush mount adapter kit (SO-FMA) is required (sold separately). Reference # Description SO-FMA flange plate support arm SO-FMA flush mount bracket assembly Lever screw SurroundVideo Omni SX camera... - Page 11 SurroundVideo® Omni SX Installation Manual 1. Cut a 9” diameter hole in the ceiling using the template provided. 9” 2. Remove existing Dome cover from Omni SX camera and remove gasket from Bubble. 3. Attach Flush mount bracket assembly to Omni SX camera as shown and fasten a safety cable to one of the 3 holes in the bracket assembly.
-
Page 12: Pendant Mount
SurroundVideo® Omni SX Installation Manual 5. Snap bubble (without gasket) into flush mount trim ring and attach the trim ring to the flush mount adapter by rotating until it magnetically snaps in place then tighten the trim ring screws. 6. To configure the camera, reference the set-up section. Pendant Mount For a proper pendant mount installation, the AV-PMJB-W pendant mount and SO-CAP-W mount cap are required (sold separately). - Page 13 SurroundVideo® Omni SX Installation Manual Figure 2: Attach the camera to the SO-CAP-W with the supplied screws 5. To configure the camera, reference the camera discovery, set-up and configuration section. Page | 13 support@arecontvision.com +1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com...
-
Page 14: Surface Mount
SurroundVideo® Omni SX Installation Manual Surface Mount The SurroundVideo® Omni SX can be directly attached onto hard ceilings or walls including wood, plastic, metal and concrete. 1. Use the template, anchors, and screws provided to prepare the mounting provisions for the camera installation. - Page 15 SurroundVideo® Omni SX Installation Manual 3. Remove the dome cover and set aside. Remove the protective foam and discard. 4. If mounting the camera outside or in a wet environment, thread the camera cable through the hole on the supplied rubber gasket and align with the three holes on the top of the housing. Ensure the gasket is properly seated flush with the camera housing.
- Page 16 SurroundVideo® Omni SX Installation Manual Reference # Description Install 3 supplied dry wall anchors using the supplied mounting template Attach supplied (optional) tether plate Attach supplied rubber gasket to the camera housing by threading the camera cable through the hole in the gasket (ensure the gasket is seated properly) Align 3 supplied screws with the dry wall anchors and screw camera into place Attach the dome cover, ensuring the rubber gasket is properly seated, with the tamper resistant screws...
-
Page 17: Wall Mount
SurroundVideo® Omni SX Installation Manual Wall Mount For a proper wall mount installation, the AV-WMJB-W wall mount and SO-CAP-W wall mount cap are required (sold separately). A wall mount should only be attached onto hard ceilings including wood, plastic, metal, and concrete. 1. -
Page 18: Pole Mount
SurroundVideo® Omni SX Installation Manual Pole Mount For a pole mount installation, the AV-WMJB-W wall mount, AV-PMA-W pole mount, and SO-CAP-W mount cap are required (sold separately). A pole mount should only be attached onto hard ceilings including wood, plastic, metal, and concrete. 1. - Page 19 SurroundVideo® Omni SX Installation Manual Figure 2: Attach wall mount adapter to pole mount adapter Reference # Description Steel straps with compression screws AV-WMJB-W wall mount SO-CAP-W mount cap Conduit AV-PMA-W pole mount AV-JBA-W Junction box Apply Teflon water seal tape to the thread of ¾” NPT pipe to avoid water leakage 7.
-
Page 20: Corner Mount
SurroundVideo® Omni SX Installation Manual Corner Mount For a corner mount installation, the AV-WMJB-W wall mount, AV-CRMA-W corner mount, and SO- CAP-W mount cap are required (sold separately). A corner mount should only be attached onto hard corner surfaces including wood, plastic, metal, and concrete. 1. - Page 21 SurroundVideo® Omni SX Installation Manual Figure 2: Attach corner mount adapter to exterior corner wall Reference # Description Attach corner mount adapter to exterior 90° corner wall AV-WMJB-W wall mount SO-CAP-W mount cap Conduit AV-CRMA-W corner mount adapter AV-JBA-W Junction box Apply Teflon water seal tape to the thread of ¾”...
-
Page 22: Electrical Box Adapter
SurroundVideo® Omni SX Installation Manual Electrical Box Adapter The AV-EBAR-W electrical box adapter is used to attach the camera to a common single, double or square electrical box. 1. Using the AV-EBAR-W’s supplied machine screws, match the mounting holes on the adapter with the threaded holes on the electrical box. -
Page 23: Setting Up The Cameras
SurroundVideo® Omni SX Installation Manual Setting up the Cameras The SurroundVideo® Omni SX is user configurable. Prior to installing the camera, thought should be given to the sensor positions. It is always easier to make adjustments before the camera is installed. The camera lenses are shipped in a 360º... - Page 24 SurroundVideo® Omni SX Installation Manual Reference # Description 180° configuration Random configuration 270º configuration Assembly line configuration Random configuration Page | 24 support@arecontvision.com +1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com...
-
Page 25: Aligning The Cameras
SurroundVideo® Omni SX Installation Manual Aligning the Cameras Properly aligning each camera is essential during setup. Each camera must be placed in a counterclockwise sequence on the circumference of the track to ensure proper viewing of each camera. Figure 1: Place cameras in counterclockwise position on the track Reference # Description Sensor 1... -
Page 26: Adjusting The Pan, Tilt And Focus
SurroundVideo® Omni SX Installation Manual Adjusting the Pan, Tilt and Focus 1. Remove the dome cover by loosening the captive fasteners with the supplied Philips head screwdriver. 2. Power on the camera to adjust the pan, tilt and focus. 3. Adjust the pan and tilt to obtain the desired field of view. Then, lock the camera head in place by tightening at least two of the three set-screws with the supplied flat-head screwdriver (Figure 1). -
Page 27: Changing The Lens
SurroundVideo® Omni SX Installation Manual NOTE: Positioning the lens motor to close to the board may cause interference with the magnetic Omni track. Ensure each lens motor is positioned away from the board. Incorrect Correct Changing the Lens 1. Remove the dome cover by loosening the captive fasteners with the supplied L-key. 2. -
Page 28: Auxiliary I/O Functions
Both the SSR and optocoupler have an isolation voltage of 1500 VRMS between the external terminals and internal camera circuitry. The input is further protected with a serial 250Ω resistor and a debouncing circuit. Arecont Vision AUX I/O ALARM OUT+... -
Page 29: Output Relay Control And Function
SurroundVideo® Omni SX Installation Manual OUTPUT Relay Control and Function The camera has an output for activating an external device. The camera supports both transient and continuous relay operation. You can operate the relay during an active connection using the API command set. -
Page 30: Input Alarm Control And Detection
Installation Manual INPUT Alarm Control and Detection The input optocoupler supports two ways to connect external unsupervised alarms to Arecont Vision camera. Only one of the following two schemes should be used at any given time. OPTION-1: UNSUPERVISED ALARM DETECTION In this scheme the IN+ &... - Page 31 SurroundVideo® Omni SX Installation Manual OPTION-2: INPUT VOLTAGE DETECTION In this scheme the IN- & GND terminals can be tied to an external power source. The camera can detect a range of voltage to trigger an internal alarm on|off condition. 0-12VDC 50mA (max)
- Page 32 SurroundVideo® Omni SX Installation Manual Camera Power Up This product should be installed by a qualified service technician in accordance with the National Electrical Code (NEC 800 CEC Section 60) or applicable local code. Make sure that your installation of wires complies with Electrical Code of the local government where the camera is installed and no bare wires are exposed.
- Page 33 SurroundVideo® Omni SX Installation Manual CAUTION! Make the connections inside a watertight compartment. Isolate unused power wires individually. After connections are made, ensure that the watertight compartment is tightly closed and cables and conduits are properly sealed to prevent ingress of water. 3.
-
Page 34: Camera Discovery, Setup, And Configuration
AV IP Utility tool is efficient and convenient for mass or single camera uploads. The AV IP Utility tool is compatible with all Arecont Vision® megapixel cameras. The user manual for the software is included on the CD that came with your camera or available on our website. -
Page 35: General Remote Focus
Figure 2: Type the camera IP address 2. Scroll to the Focus Tab section. ® NOTE: Additional information regarding the Arecont Vision web interface is found separately in the AV IP Utility Web Browser Manual via the Arecont Vision website. Page | 35 support@arecontvision.com +1.818.937.0700 877.CAMERA.8 www.arecontvision.com... - Page 36 SurroundVideo® Omni SX Installation Manual 3. Click the “Select Channel” and choose channel 1. 4. Click the Full-range Focus button. The camera begins to autofocus with the lens stopping at the best overall point of focus. Please complete the same action for Channel 2, 3, and 4 by following steps 2 to 5. Page | 36 support@arecontvision.com +1.818.937.0700...
-
Page 37: Av Ip Utility Focus Tab
SurroundVideo® Omni SX Installation Manual AV IP Utility Focus Tab Menu Feature Description Select Channel Allows user to change settings of each channel. All the parameter settings in “Settings” Menu only apply to the selected channel. Manual Focus: Numbers indicate the level of focusing in order to adjust the field-of- +20, +5, +1, - view. -
Page 38: Troubleshooting
SurroundVideo® Omni SX Installation Manual Troubleshooting Before troubleshooting, visit http://www.arecontvision.com/ to ensure your camera has the most current firmware version. Problem Possible Cause Solution • • Lens faces the bubble’s Ensure the lens faces the bubble crease. perpendicularly. Reflection on •... -
Page 39: Surroundvideo Omni Mounting Template
SurroundVideo® Omni SX Installation Manual SurroundVideo Omni Mounting Template Page | 39 support@arecontvision.com +1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com... -
Page 40: Support
Swap the “troubled” camera with a known good camera to see if the problem follows the camera or stays at the location. 3. Contact Arecont Vision Technical Support one of three ways: 1. Online Portal: Support.ArecontVision.com 2. Phone: 1.818.937.0700 (option #1) 3.
