SurroundVideo® O mni G 2

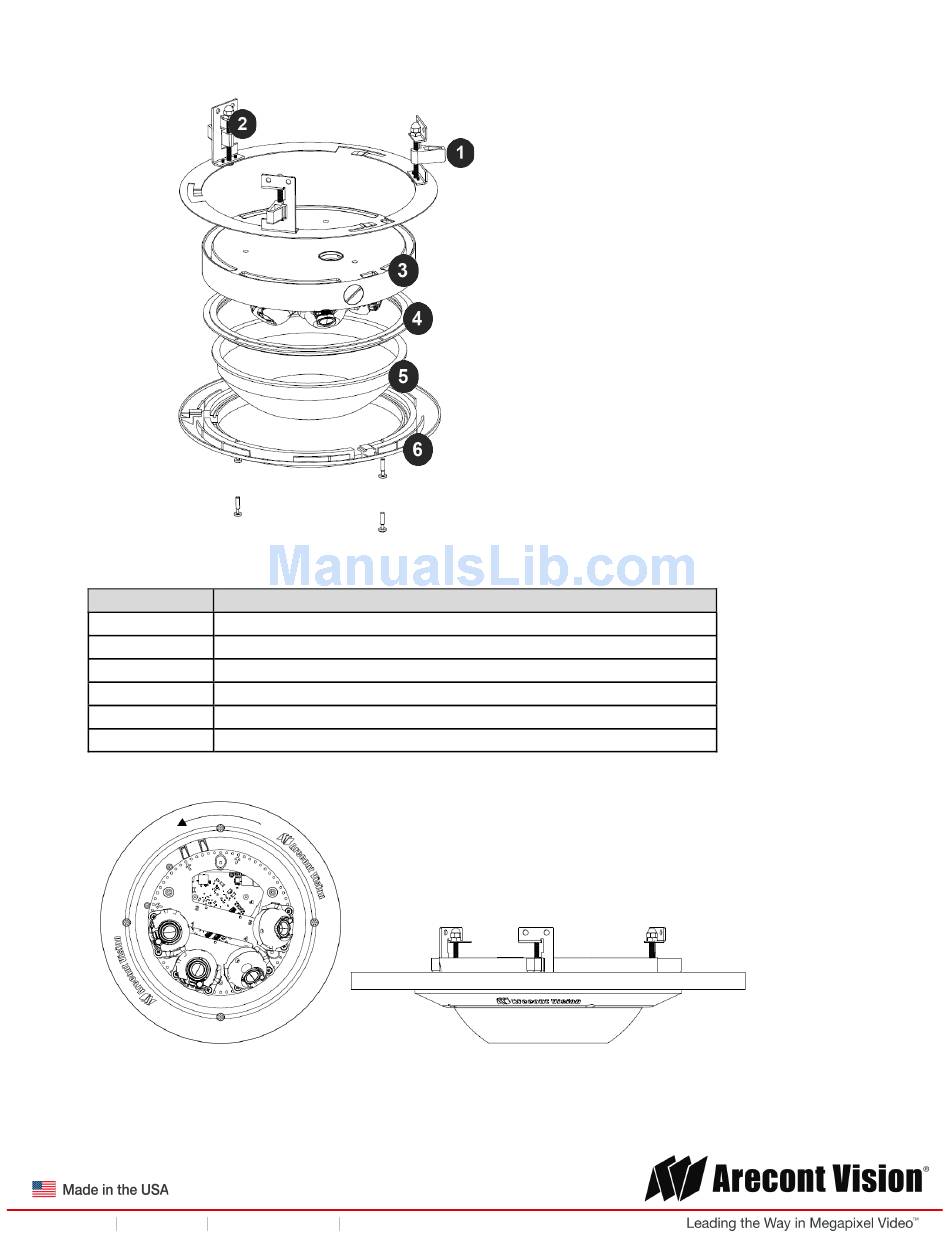

Figure 3: Compress the mounting surface with lever screws
Reference #
1
2
3
4
5
6
4. Attach the trim ring to the flush mount adapter by rotating counter clockwise (Figure 4).
Figure 4: Attach trim ring to the flush mount adapter counter clockwise
5. To configure the camera, reference the set-up section.
Page | 11 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8
Description
SO-FMA flange plate support arm
Lever screw
SurroundVideo Omni G2 camera
Rubber gasket
Dome cover
SO-FMA trim ring
