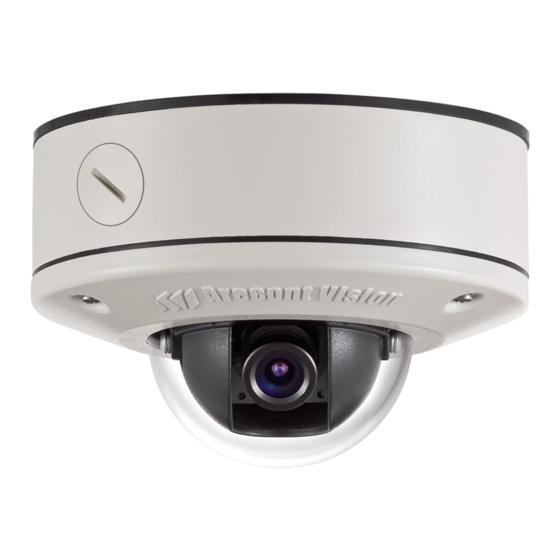

Arecont Vision MicroDome Specifications

1.3–5 Megapixels
MicroDome
H.264 All-in-One Ultra Low Profile Day/Night Indoor or Indoor/Outdoor IP Cameras
PoE
Ultra Low Profile
All-in-One PoE
Design
and Integrated Lens
Features:
Ultra Low Profile Design / Small Size
•
Very Easy Installation / Factory Focused
•
All-in-One H.264 Total Power over Ethernet (PoE) Solution with
•
Integrated 4mm Lens
Optional True WDR up to 100dB at Full Resolution Available on Some
•
1080p and 3MP Models: See Clearly in Shaded and Bright Light
Conditions Simultaneously
Multiple Lens Options Available (sold separately)
•
Integrated Microphone (-F Models)
•
Casino Mode Guarantees Continuous 30fps Frame Rate Required by
™
•
Gaming Industry Regulations (AV2455 Models)
Binning Mode for Strong Low Light Performance in 3MP and 5MP
•
Resolutions
Model Specific Features
AV1455DN 1.3MP 1280 x 1024
AV2455DN 1080p 1920 x 1080
AV2456DN 1080p 1920 x 1080
AV3455DN 3MP 2048 x 1536
AV3456DN 3MP 2048 x 1536
AV5455DN 5MP 2592 x 1944
-F Flush Mount -S
Made in the USA
®
Integrated
True Day/Night
with Mechanical Microphone
IR Cut Filter (-F Models) IK-10 and IP66 Rated
42fps - -
31fps - Casino Mode
30fps WDR -
21fps - -
21fps WDR -
14fps - -
Surface Mount (Example: AV2456DN-F)
Arecont Vision introduces MicroDome megapixel IP cameras.
These small, ultra low profile cameras offer the great features of
Arecont Vision megapixel technology like superior image quality,
excellent compression and fast frame rates. MicroDome is available
in both recessed and surface mount configurations. An innovative
spring arm design makes recessed installation a snap: simply
slide the camera through the hole and secure the magnetized
cover ring with a single screw. Every model comes equipped
with a mechanical day/night switcher, and pixel binning on 3- and
5-megapixel models deliver excellent low-light capabilities. Add
optional true Wide Dynamic Range (WDR) and difficult lighting
conditions are overcome with MicroDome.
Vandal and Pixel Binning Mode
Weather Proof on 3 and 5MP Models
True Day/Night Functionality with Mechanical IR Cut Filter (DN Models)
•
Tamper-Resistant Housing
•
IP66 (-S Models) and IK-10 Vandal-Resistant Housing
•
Dual Encoder H.264/MJPEG
•
Privacy Mask, 1024 Zone, Motion Detection, Flexible Cropping, Bit Rate
•
Control, Multi-Streaming and Forensic Zooming
Fast Frame Rates
•
PSIA Conformant
•
New User-Friendly Webpage
•
Reduced Overall System Cost
•
Made in the USA
•
-
-
™
-
Binning
Binning
Binning
Surface Mount (-S)
+1.818.937.0700 | 877.CAMERA.8 | www.arecontvision.com | avsales@arecontvision.com
Wide Dynamic Range Casino Mode™
Available on AV2456 and Maintains at Least 30fps
AV3456 Models on AV2455 Models
Flush Mount (-F)
Dual Encoder
H.264/MJPEG
