Wall Mount - Arecont Vision AV12275DN-NL Installation Manual

SurroundVideo® O mni G 2

Wall Mount

For a proper wall mount installation, the AV-WMJB wall mount and SO-CAP wall mount cap are
required (sold separately). A wall mount should only be attached onto hard ceilings including wood,
plastic, metal, and concrete.
1. Using the Mounting template, prepare the mounting provisions for the camera installation.
2. Connect wall mount cap and wall mount as shown in Figure 1.

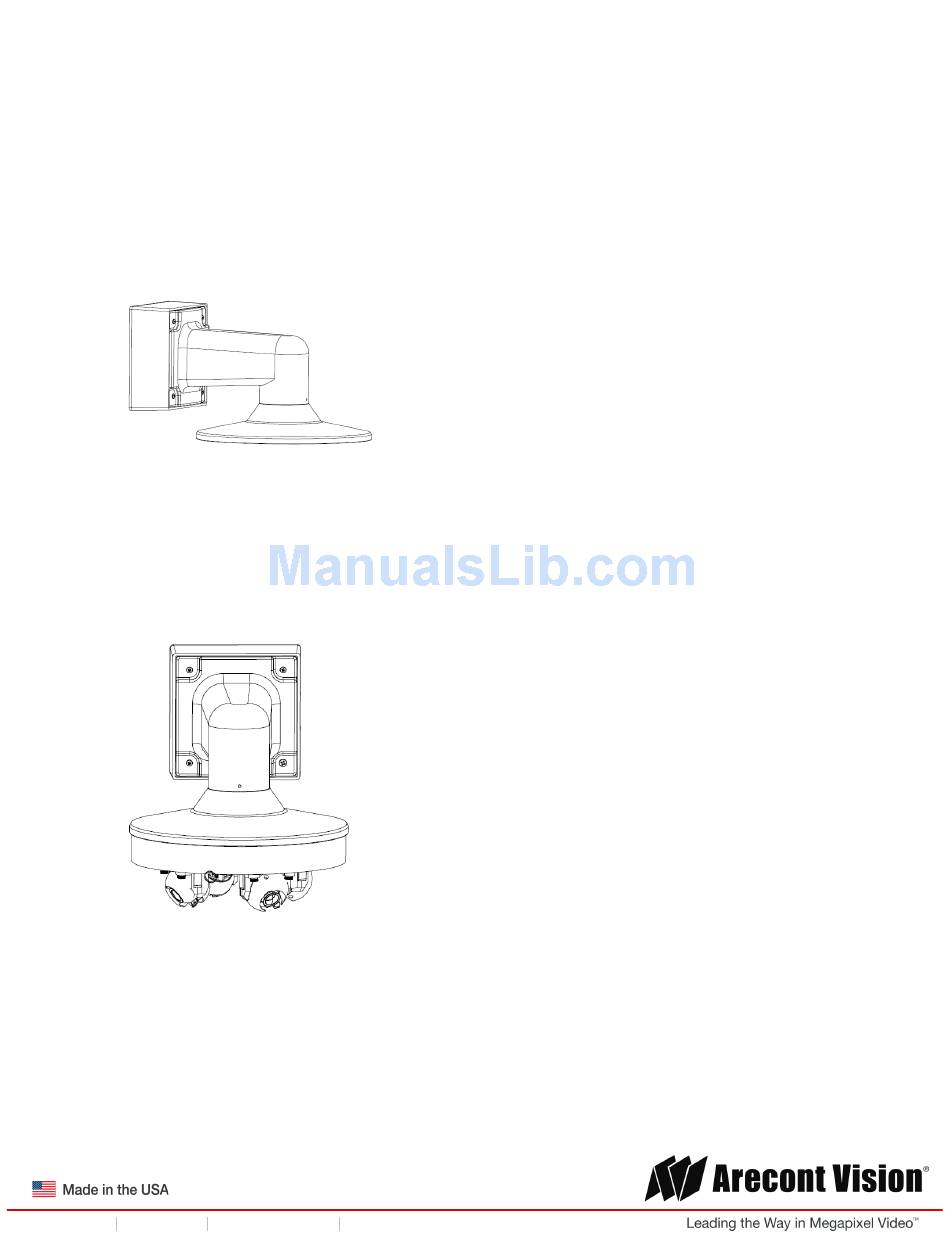

Figure 1: Attach wall mount cap to the wall mount
NOTE: The thread size for Top shield, pendant pole and mount is 1.5" NPT.
3. Run Ethernet Cable and outside power cable (if necessary) through the supplied rubber gasket
and then through the wall mount. Ensure the gasket is seated properly.
4. Attach the wall mount to the wall using drywall screws or any optional hardware suitable for the
mounting surface.
Figure 2: Attach the camera to the SO-CAP with the supplied screws
5. To configure the camera, reference the camera discovery, set-up and configuration section.
Page | 16 support@arecontvision.com
