Changing The Lens - Arecont Vision AV12275DN-NL Installation Manual

SurroundVideo® O mni G 2

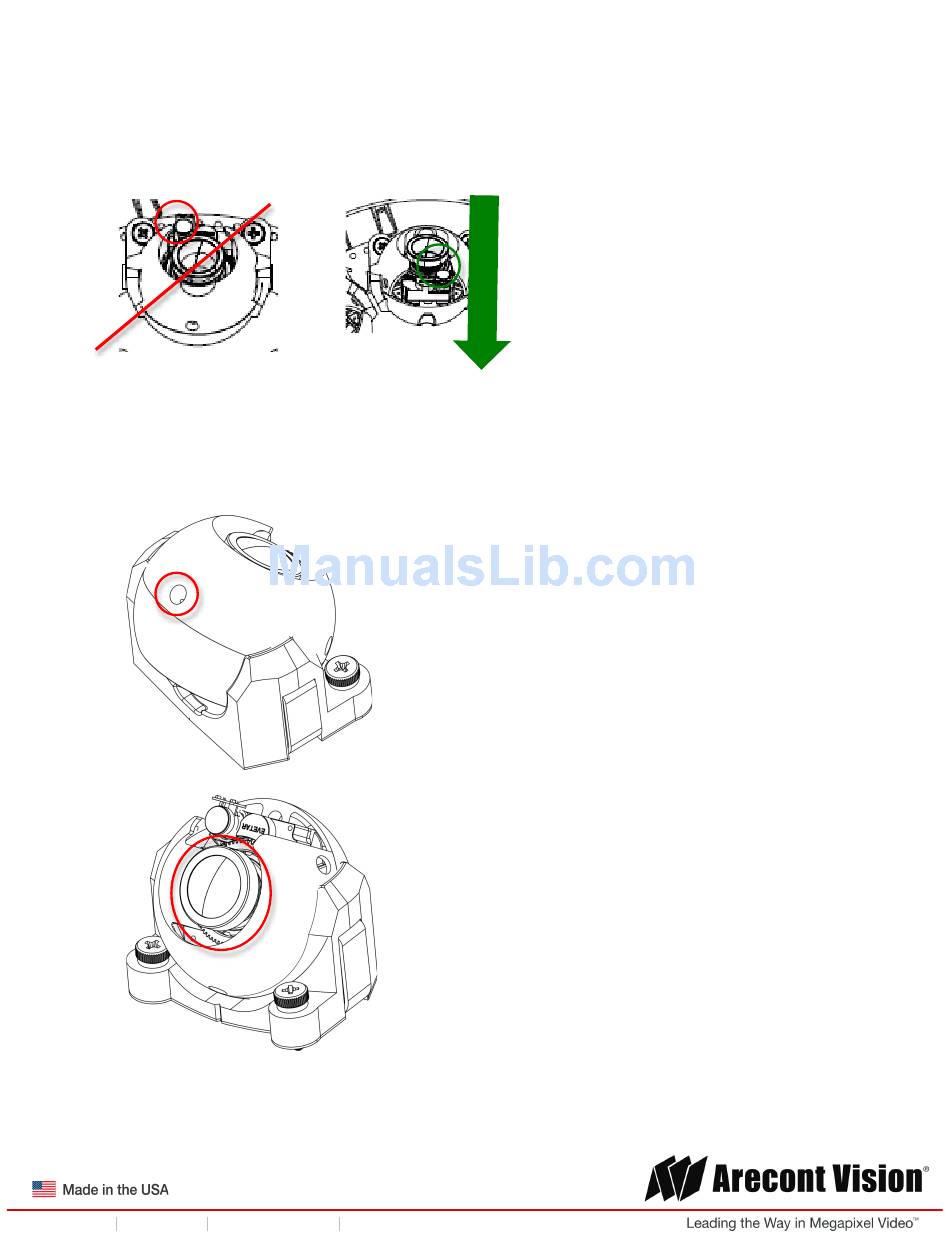

NOTE: Positioning the lens motor to close to the board may cause interference with the magnetic Omni
track. Ensure each lens motor is positioned away from the board.
Incorrect

Changing the Lens

1. Remove the dome cover by loosening the captive fasteners with the supplied L-key.
2. Loosen the lens lock screws (3) using the supplied flat-head screwdriver (if necessary). Only do
so if the lens seems very tight when turning.
3. Manually unscrew the lens counter clockwise, this may take several seconds.
4. Screw the replacement lens clockwise until you feel some resistance and hit a hard stop.
5. Retighten the lens lock screws (3) if necessary per instructions outlined above. Do not over
torque the screws.
Page | 26 support@arecontvision.com
+1.818.937.0700 877.CAMERA.8
Correct
www.arecontvision.com avsales@arecontvision.com
Installation M anual
