Aligning the Cameras

Properly aligning each camera is essential during setup. Each camera must be placed in a
counterclockwise sequence on the circumference of the track to ensure proper viewing of each camera.

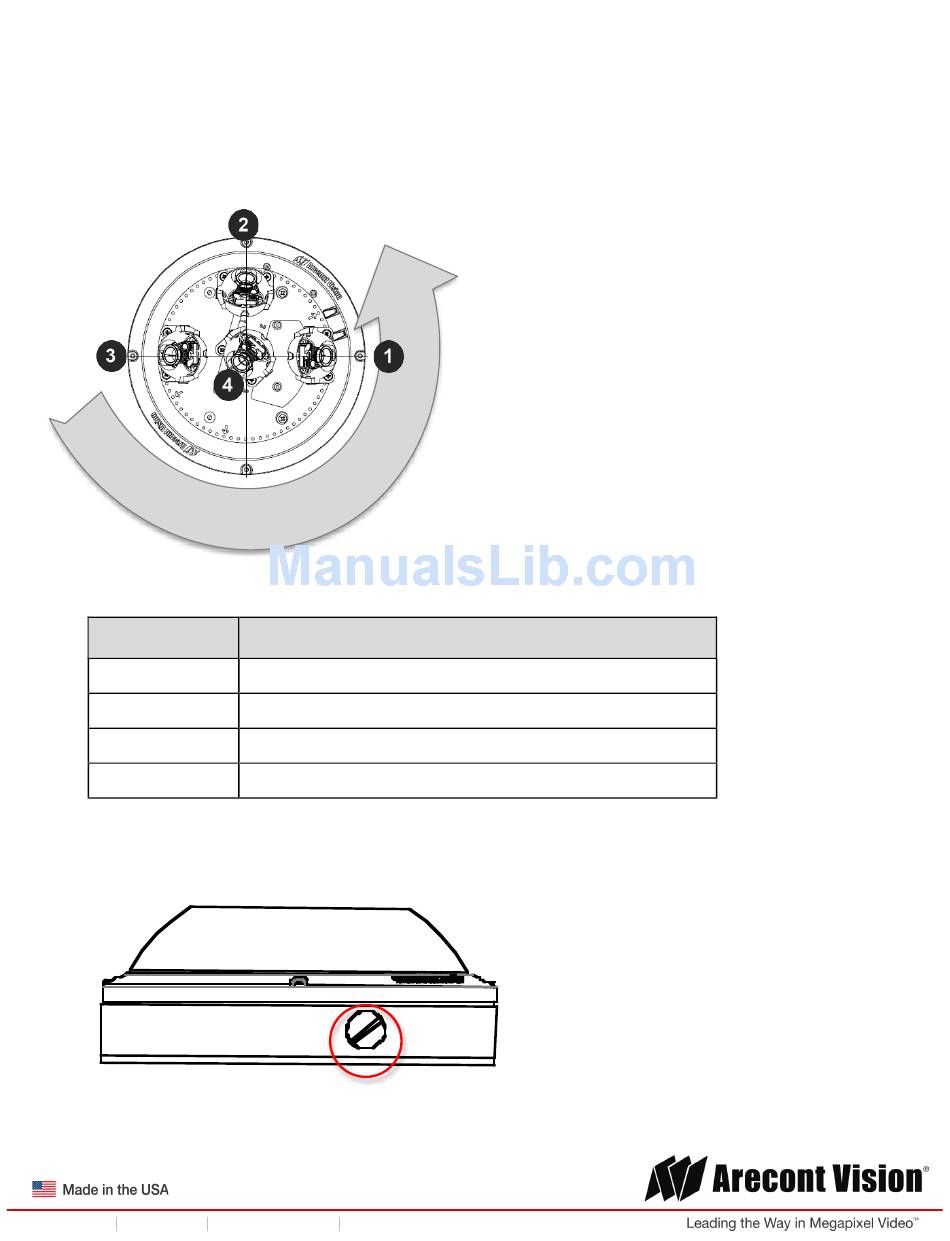

Figure 1: Place cameras in counterclockwise position on the track
Reference #
1
2
3
4
When positioning the sensors, ensure the conduit mounting hole does not obstruct the cable when
positioning the sensor.
