Transducer Connection - Simrad GO XSE Installation Manual

28
The Network Interface is available from your BEP dealer. For more
information please refer to the BEP web site www.bepmarine.com.

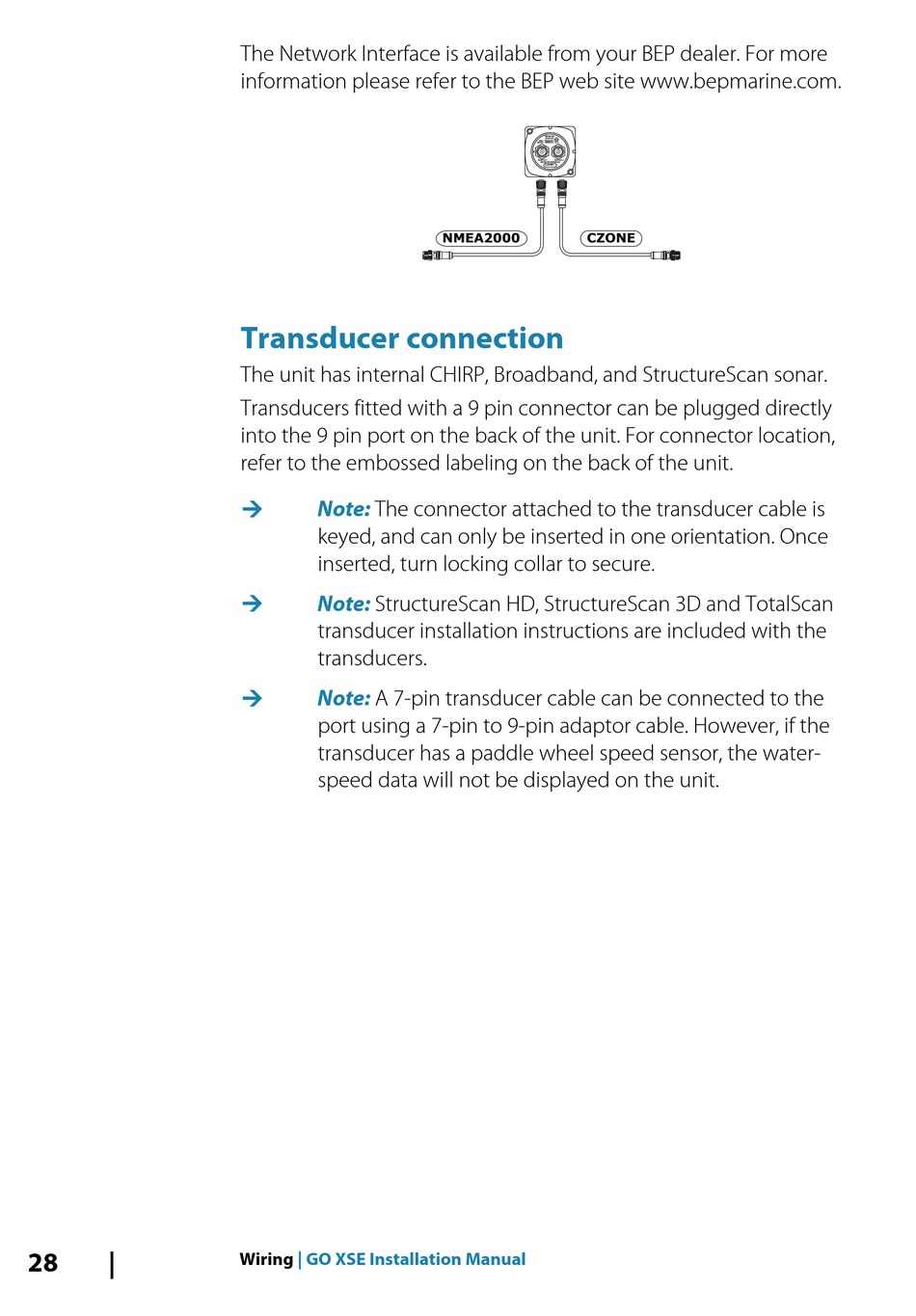

Transducer connection

The unit has internal CHIRP, Broadband, and StructureScan sonar.
Transducers fitted with a 9 pin connector can be plugged directly
into the 9 pin port on the back of the unit. For connector location,
refer to the embossed labeling on the back of the unit.
Note:
Ú The connector attached to the transducer cable is
keyed, and can only be inserted in one orientation. Once
inserted, turn locking collar to secure.
Note:
Ú StructureScan HD, StructureScan 3D and TotalScan
transducer installation instructions are included with the
transducers.
Note:
Ú A 7-pin transducer cable can be connected to the
port using a 7-pin to 9-pin adaptor cable. However, if the
transducer has a paddle wheel speed sensor, the water-
speed data will not be displayed on the unit.
Wiring | GO XSE Installation Manual
NETWORK
Network 1 Network 2
NETWORK INTERFACE
CZONE
NMEA2000 CZONE
