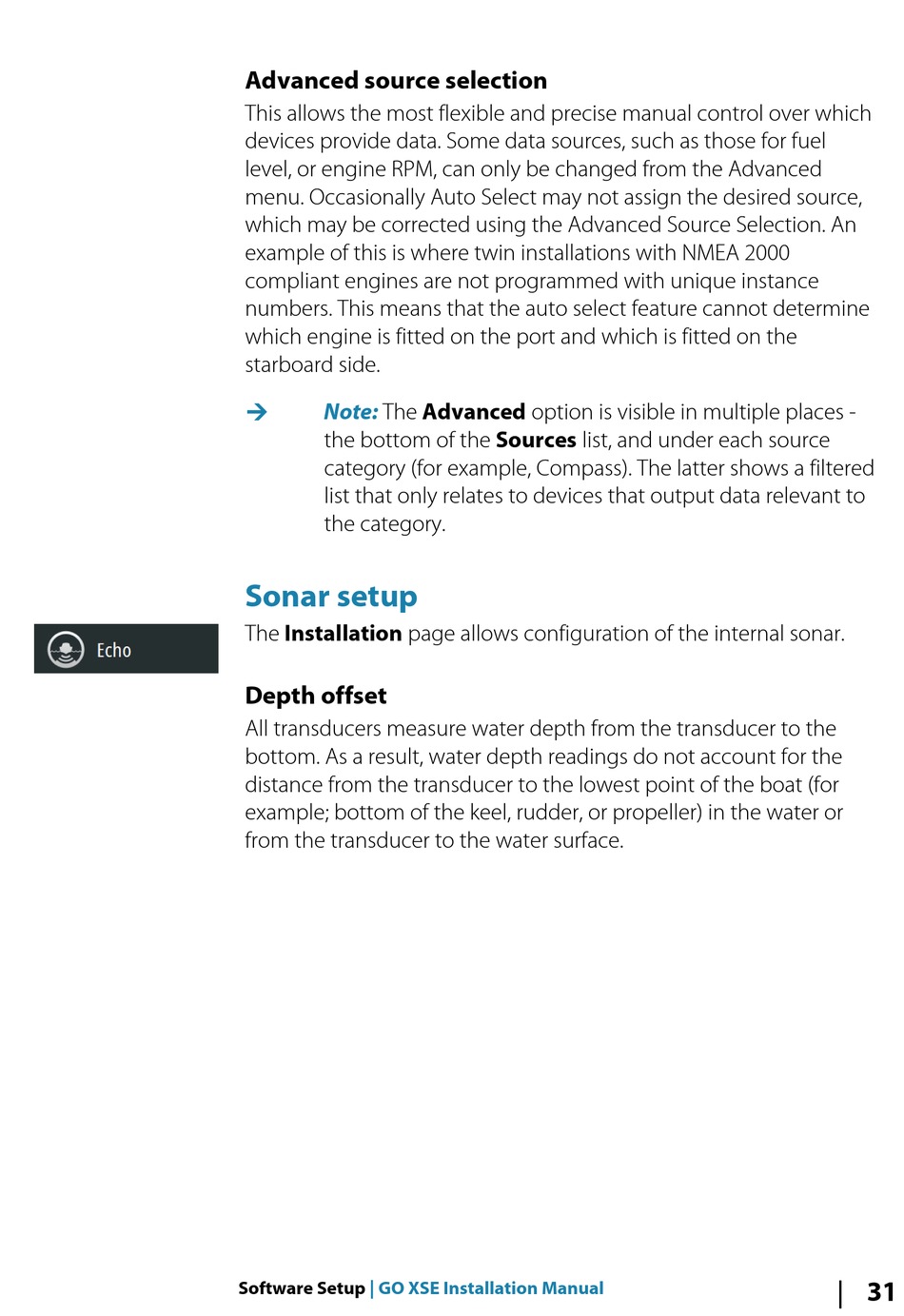

Advanced source selection
This allows the most flexible and precise manual control over which
devices provide data. Some data sources, such as those for fuel
level, or engine RPM, can only be changed from the Advanced
menu. Occasionally Auto Select may not assign the desired source,
which may be corrected using the Advanced Source Selection. An
example of this is where twin installations with NMEA 2000
compliant engines are not programmed with unique instance
numbers. This means that the auto select feature cannot determine
which engine is fitted on the port and which is fitted on the
starboard side.
Note: The Advanced option is visible in multiple places -
Ú
the bottom of the Sources list, and under each source
category (for example, Compass). The latter shows a filtered
list that only relates to devices that output data relevant to
the category.

Sonar setup

The Installation page allows configuration of the internal sonar.
Depth offset
All transducers measure water depth from the transducer to the
bottom. As a result, water depth readings do not account for the
distance from the transducer to the lowest point of the boat (for
example; bottom of the keel, rudder, or propeller) in the water or
from the transducer to the water surface.
