Dimensional drawings

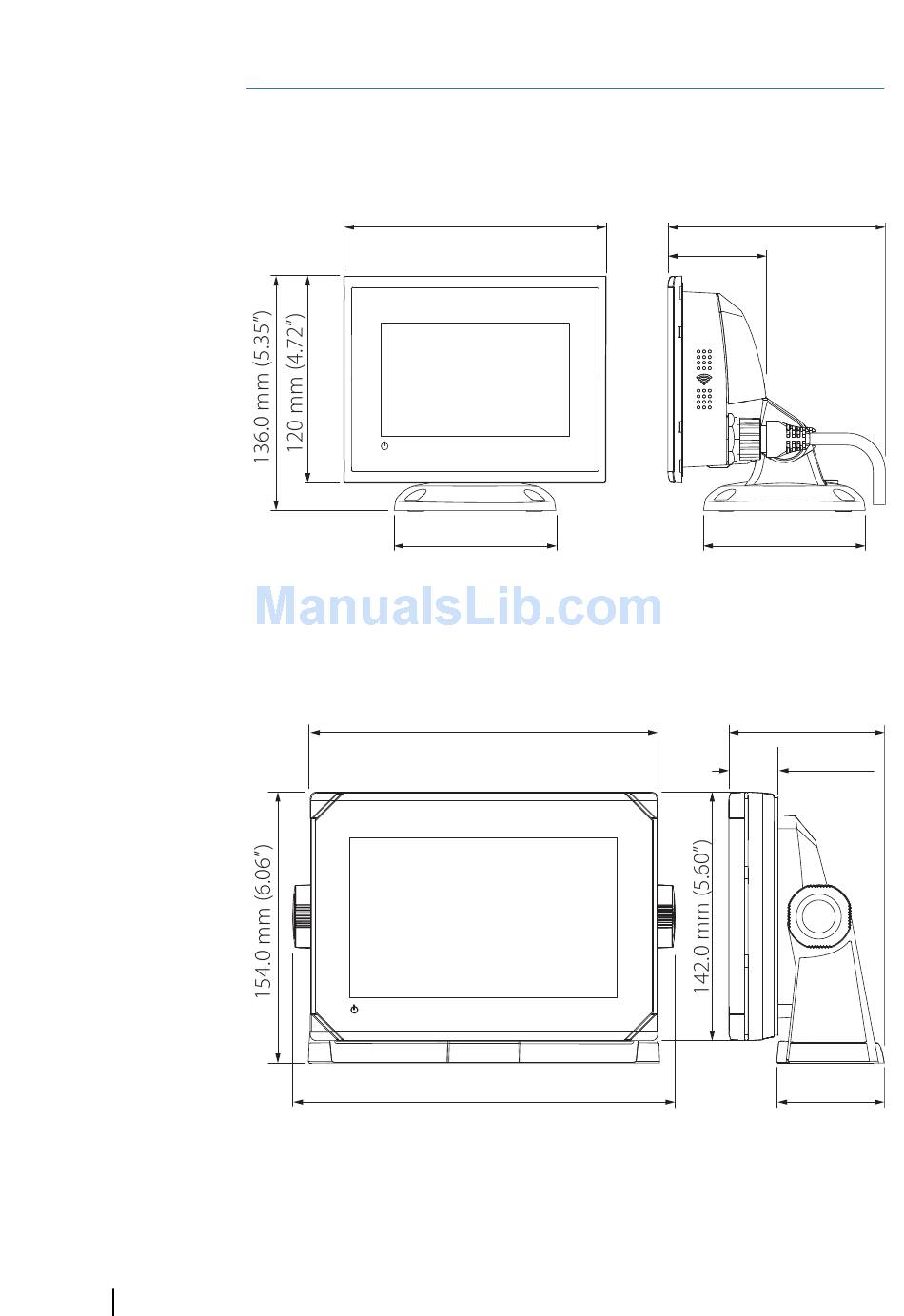

GO5 XSE Dimensional drawings
152.0 mm (5.98")
117.5 mm (4.62")
58.0 mm
(2.28")
94.0 mm (3.70")
94.0 mm (3.70")
GO7 XSE Dimensional drawings
199.0 mm (7.84")
65.0 mm (2.60")
28.5 mm
(1.12")
220.00 mm (8.66")
37.0 mm
(1.45")
64
Dimensional drawings
| GO XSE Installation Manual
