Overview - Simrad GO XSE Installation Manual

2

Overview

The unit has a built-in CHIRP/Broadband and StructureScan sonar.
The GO5 XSE and GO7 XSE can network over NMEA 2000, this allows
access to sensor data.
The unit has built-in high speed GPS receiver (10Hz) and supports
Insight charts from Navico including Insight Genesis. The system
also supports charts from Navionics and Jeppesen as well as
content created by a variety of third party mapping providers in the
AT5 format. For a full selection of available charts, visit
gofreeshop.com, c-map.jeppesen.com, or navionics.com.
The unit may be mounted to the vessel with the supplied mounting
bracket, or panel mounted on the dash.
The unit is intended for 12 V DC operation and will accept the
moderate fluctuations commonly seen in DC systems.

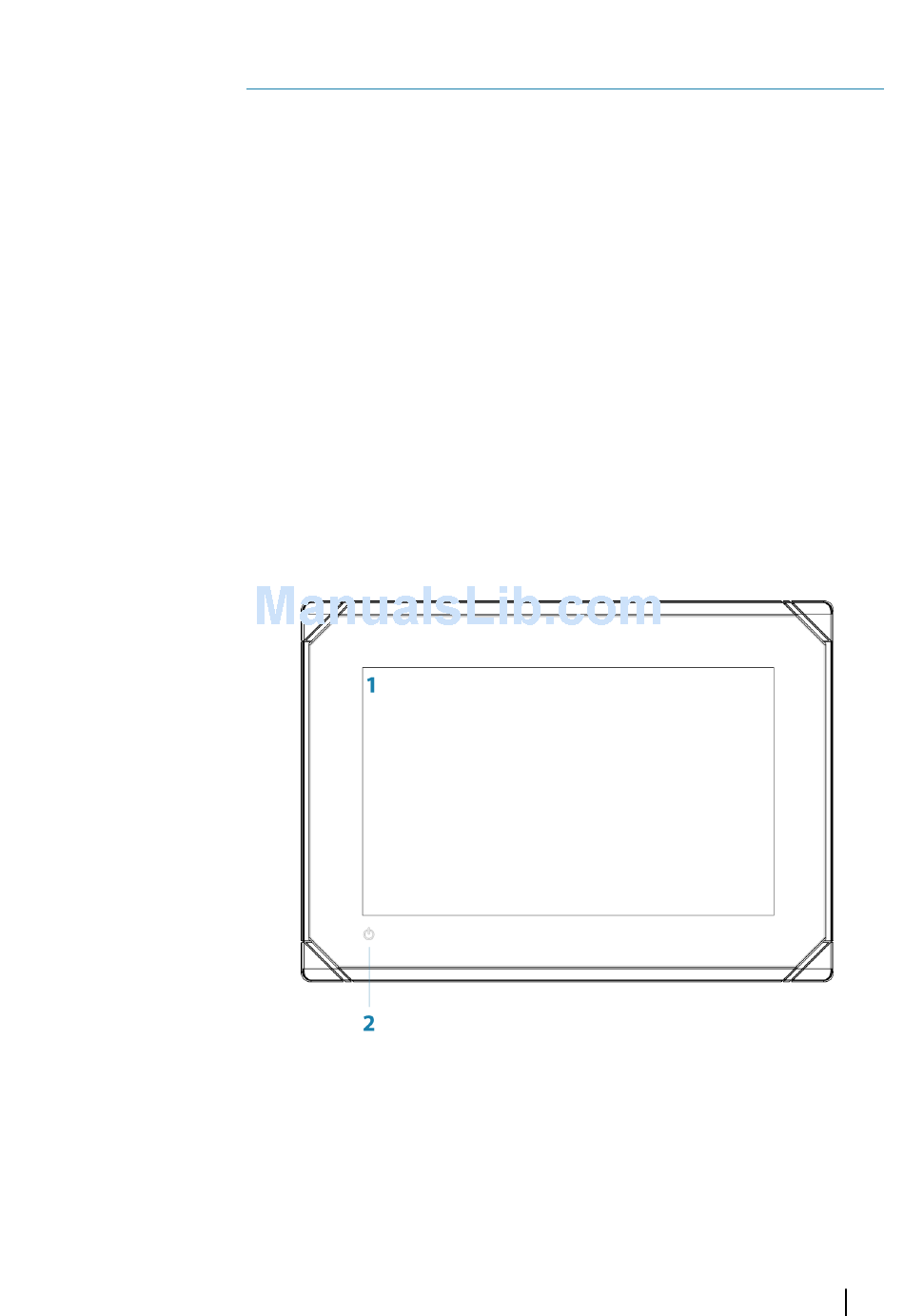

Front controls
1 Touch screen
2 Power button
Press and hold to turn the unit ON/OFF.
Press once to display the System Controls dialog.
Overview | GO XSE Installation Manual
13
