M A N U A L

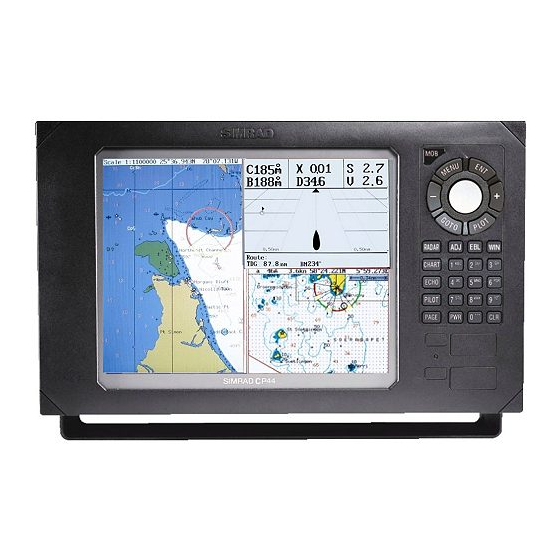

Simrad CP44/54
Chartplotter
183-3402-102 English 03101.10
Note!
Insert or remove C-MAP cartridges ONLY through SETUP menu or when
unit is off. All electronic navigation equipment is subject to external factors
beyond the control of the manufacturer. Therefore such equipment must be
regarded as an aid to navigation. The prudent navigator will, for that reason,
never rely on a single source for position fixing and navigation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP54 and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad CP54

Summary of Contents for Simrad CP54

  • Page 1 M A N U A L Simrad CP44/54 Chartplotter 183-3402-102 English 03101.10 Note! Insert or remove C-MAP cartridges ONLY through SETUP menu or when unit is off. All electronic navigation equipment is subject to external factors beyond the control of the manufacturer. Therefore such equipment must be regarded as an aid to navigation.
  • Page 2 MOB ‘MAN OVERBOARD’ function In case someone falls overboard, press the [MOB] key and hold for 2 seconds (or activate an external MOB switch - hold for 5 seconds). Press [CLR] to confirm and reset the alarm if activated by mistake. Before pressing [ENT] to start MOB navigation: •...

  • Page 3: Table Of Contents

    CP44/54 Chartplotter Table of contents MOB ‘MAN OVERBOARD’ function ......back of front cover Chapter 1 Introduction and safety summary Introduction and system familiarization ........1-1 Safety summary ................1-2 How to get started ................ 1-3 1.3.1 Dedicated function keys ............... 1-3 1.3.2 Chart and chart functions.............
  • Page 4 Table of contents CP44/54 Chartplotter 3.5.1 Display modes in the chart setup ..........3-18 3.5.2 Description of chart features ............3-20 Chapter 4 Echo menu Echo menu ..................4-1 Depth & temperature diagram ............. 4-1 Custom screen ................4-3 Chapter 5 Pilot menu & navigation examples Pilot menu..................
  • Page 5 CP44/54 Chartplotter Table of contents Chapter 7 Waypoint / route menu Waypoint / route menu ..............7-1 Waypoints stored in the memory ..........7-1 7.1.1 Delete waypoints via menu ............7-2 Routes stored in the memory............7-3 7.2.1 Delete route via menu..............7-6 7.2.2 Make new route from WP list ............
  • Page 6 Table of contents CP44/54 Chartplotter Appendix A Glossary of terms ..............A-1 Appendix B List of datum ................B-1 Appendix C C-MAP attributes..............C-1 Index Declarations of conformity International warranty List of Simrad distributors...

  • Page 7: Introduction And System Familiarization

    How to use this manual? This manual is written for the products: CP44 and CP54, which share the same type of software. From hereon, these models will be referred to as: CPXX. It is a good idea if you make yourself familiar with the key functions, menu structure and rotation of pages (screens) described in chapter 2 before you start out, and then proceed with section 2.7 Initial start-up.

  • Page 8: Safety Summary

    The lifetime of the internal battery is minimum 5 years. If not exchanged before it goes flat, all data in the unit’s memory will be lost. We strongly recommend that you frequently store your data on a Simrad DataCard. For exchange of battery, call your local Simrad workshop.

  • Page 9: How To Get Started

    CP44/54 Introduction and safety summary Chapter 1-3 1.3 How to get started Press and hold the [PWR] key until you have a picture on the screen PAGE Press [PAGE] to scroll through a quick guide which informs of the use of the keys and where you can enter owner’s setup - the quick guide is also accessible via [MENU], [6], [6].
  • Page 10 Chapter 1-4 CP44/54 Introduction and safety summary Long press will toggle between: ECHO Depth & temp. diagram Custom screen Short press will toggle between: PILOT Highway Position Dual Speed Set & Drift When navigation mode is active, these two displays will be included: ETA &...

  • Page 11: Chart And Chart Functions

    CP44/54 Introduction and safety summary Chapter 1-5 1.3.2 Chart and chart functions Press the [CHART] key to call up the chart display in full screen. CHART Press again to toggle between the chart shortcut series - see chart examples in section 1.3.1. C-MAP cartridges (standby) Press [MENU], [6], [CHART] whenever inserting or removing a C-MAP card.
  • Page 12 Chapter 1-6 CP44/54 Introduction and safety summary How to plot or insert waypoints and marks • With cursor OFF (press [CLR]) Press [PLOT] and choose from: [PLOT] Plot ship’s position as mark. Insert ship’s position. You can change the lat/lon figures, the symbol and the symbol’s size and color.

  • Page 13: Cp44/54 Introduction And Safety Summary Chapter

    CP44/54 Introduction and safety summary Chapter 1-7 How to edit a route - rubberbanding • To move a point on the chart: 1. Place cursor on the point you wish to move. 2. Press [ENT], [1], [2]. 3. Move cursor to new location. 4.
  • Page 14 Chapter 1-8 CP44/54 Introduction and safety summary Advance or stop navigation • Press [GOTO], [1] to advance to next point in the route. • Press [GOTO], [3] to stop navigation. Start and stop track 1. Press [TRACK] to call up ‘Start track’ window. 2.

  • Page 15: Fundamentals Of The Display And

    CP44/54 Fundamentals & initial start-up Chapter 2-1 2.1 Fundamentals of the display and page system The CP44/54 Chartplotter has a multi-function screen and data pres- entation system with full screen and different types of split screens. The series of pages under the function keys (situated in the left column of the keypad) will in most situations be sufficient informa- tion for the operator.

  • Page 16: Example Of How To Exchange A Page In The

    Chapter 2-2 CP44/54 Fundamentals & initial start-up Long press on the [PAGE] key will start a rotation of the three pages in intervals of 5 seconds (increase/decrease the time in [MENU], [6], [1]). Press any key to stop rotation. 2.1.1 Example of how to exchange a page in the PAGE system The three pages in the PAGE system are collected from the CHART, ECHO and PILOT menus in the sequence of which the function keys appear on the keypad ie.

  • Page 17: Key Functions

    CP44/54 Fundamentals & initial start-up Chapter 2-3 Highlight a function e.g. Route calculation in the WP/RTE menu. Press [WIN] several times to check the screen image (situated to the far right in the top line of the menu bar) which windows the function can be placed into Press [ENT] to enter the highlighted function into the highlighted window...
  • Page 18 Chapter 2-4 CP44/54 Fundamentals & initial start-up Shortcut to Chart function. Single press will toggle between differ- CHART ent data fields on chart. Long press will toggle between Chart in full screen, Dual Chart, and two custom screens. Shortcut to Depth and temperature diagram, and a custom screen. ECHO Shortcut to Pilot displays.

  • Page 19: Menu Bar

    CP44/54 Fundamentals & initial start-up Chapter 2-5 2.3 Menu bar Toggles the menu bar on/off MENU To fit the complete menu bar across the screen, some of the menus have been abbreviated. However, the last selected menu will be high- lighted, and if it’s an abbreviation of the menu, then the complete menu title is written above the menu bar.

  • Page 20: Menu Layout

    Chapter 2-6 CP44/54 Fundamentals & initial start-up 2.4 Menu layout CHART ECHO PILOT Chart Depth & temp.diagram Highway Dual Chart Custom screen Position Dual Speed Custom screen 1 Custom screen 2 ETA & AVN Trim & Highway Set & Drift Custom screen 1 Custom screen 2 MISC...

  • Page 21: Choice Of Symbols

    CP44/54 Fundamentals & initial start-up Chapter 2-7 2.5 Choice of symbols Waypoints and other points appearing on the screen can be marked by one of 18 symbols + 8 event marks in small or large symbols: 2.6 Naming of routes, points etc. First select the key with the desired letter, then you can either repeat the keystrokes, which will toggle between e.g.

  • Page 22: Turn Power Off

    Chapter 2-8 CP44/54 Fundamentals & initial start-up The unit will now perform a fully automatic start-up and find the correct position without further data entries. The start-up phase is completed when the position coordinates stop flashing in the posi- tion display, meaning, the system now has a valid position - see section 5.3.

  • Page 23: Chart Menu

    CP44/54 Chart menu and INFO windows Chapter 3-1 3. Chart menu CHART Chart The displays obtained from this menu can easily be accessed from the main Dual Chart function key [CHART] - Custom screen 1 see section 3.1. Custom screen 2 For safety reasons, navigation with electronic charts should always be combined with authorized paper charts.

  • Page 24: Data Field On Chart

    Chapter 3-2 CP44/54 Chart menu and INFO windows From any display: CHART Long press on the [CHART] key will toggle between: Chart Dual Chart Custom screen 1 Custom screen 2 From full chart display: CHART Short press on the [CHART] key will toggle between different pres- entations of the data field on the chart e.g.: 3.1.1 Data field on chart Chart range indicator...

  • Page 25: Ship Symbol

    CP44/54 Chart menu and INFO windows Chapter 3-3 long, compass and depth indication, bearing and distance to either approach- ing point or cursor position; together with time and date in local or UTC. *)Refer to section 5.3 Status indicator and accuracy. 3.1.2 Ship symbol The ship symbol indicates the present position on the chart and the vector informs of the actual heading (input from compass) or true...

  • Page 26: Range Or Zoom Function

    Chapter 3-4 CP44/54 Chart menu and INFO windows 3.1.4 Range or zoom function With chart display active: Press one of the numeric keys to quickly change the chart scale: [1] = 1:600 [2] = 1:2,000 [3] = 1:6,000 [4] = 1:20,000 [5] = 1:60,000 [6] = 1:200,000 [7] = 1:600,000...

  • Page 27: Dual Chart Display

    CP44/54 Chart menu and INFO windows Chapter 3-5 3.2 Dual Chart display It is possible to have two charts in different scales on the screen at the same time, one for detail and one for overview. Each chart can be operated individually, and each will have its own cursor and indi- vidual chart setup.

  • Page 28: Chart Custom Screens

    Chapter 3-6 CP44/54 Chart menu and INFO windows 3.3 Chart custom screens The two custom screens in the chart menu consist of multiple window combinations e.g.: The displays, which are not related to the chart function, can be exchanged with a different one. It is also possible to change the right half of the screen from two quarter windows to half screen window, and vice versa.

  • Page 29: Chart Quick Menu

    CP44/54 Chart menu and INFO windows Chapter 3-7 3.4 Chart quick menu Access the chart quick menu from active chart display. The func- tions available depends on the actual situation - refer to sections 3.4.1 to 3.4.7. 3.4.1 Cursor inactive With chart in active window, and with cursor off, press [ENT] to call up the quick menu with the following to choose from: Scale: 1:6600000...

  • Page 30: Cursor Active But Not Placed On Any Object Or Data

    Chapter 3-8 CP44/54 Chart menu and INFO windows 3.4.2 Cursor active but not placed on any object or data With chart in active window, and cursor active but not placed on any object or user data, press [ENT] to call up the quick menu with the following to choose from: Scale: 1:6600000 Actual chart scale...

  • Page 31: Cursor Placed On Waypoint

    CP44/54 Chart menu and INFO windows Chapter 3-9 3.4.3 Cursor placed on waypoint With chart in active window, and cursor placed on a waypoint, press [ENT] to call up the quick menu with the following to choose from: WP found Name: WP 1 LAT 57°15.504N LON 9°17.249E...

  • Page 32: Cursor Placed On Route Leg Or Line Section

    Chapter 3-10 CP44/54 Chart menu and INFO windows 3.4.4 Cursor placed on route leg or line section With chart in active window, and cursor placed on a route leg or line section, press [ENT] to call up the quick menu with the following to choose from: Route leg found: Name: RTE 1...

  • Page 33: Cursor Placed On Routepoint Or Linepoint

    CP44/54 Chart menu and INFO windows Chapter 3-11 3.4.5 Cursor placed on routepoint or linepoint With chart in active window, and cursor placed on a routepoint or linepoint, press [ENT] to call up the quick menu with the following to choose from: Routepoint found Name: RTE 1 From start:...

  • Page 34: Cursor Placed On Trackpoint

    Chapter 3-12 CP44/54 Chart menu and INFO windows 3.4.6 Cursor placed on trackpoint Trackpoints are not as easily recognized as Routepoints, you may have to move the cursor along on the track to locate a trackpoint. With chart in active window, and cursor placed on a trackpoint, press [ENT] to call up the quick menu with the following to choose from: Trackpoint found...

  • Page 35: Cursor Placed On Target

    CP44/54 Chart menu and INFO windows Chapter 3-13 3.4.7 Cursor placed on target With chart in active window, and cursor placed on a target symbol, press [ENT] to call up the quick menu with the following to choose from: Target found Name: TARGET 1 LAT 57°02.825N LON 7°45.555E...

  • Page 36: Goto Menu

    Chapter 3-14 CP44/54 Chart menu and INFO windows 3.4.8 GOTO menu Call up the GOTO menu with access to navigation modes: GOTO Select NAV mode To select “Cursor” navigation will require that the chart cursor is active. Cursor “Waypoint”, “Route” and “Track” navi- Waypoint gation requires that a waypoint, route or Route...

  • Page 37: Plot Menu

    CP44/54 Chart menu and INFO windows Chapter 3-15 3.4.9 PLOT menu The CPXX is designed to make navigation easy and safe. Waypoints can easily be plotted with a single keystroke, or be inserted via the keypad. Making routes and drawing lines are done directly on the chart.
  • Page 38 Chapter 3-16 CP44/54 Chart menu and INFO windows changes made will be new presets for plotting/insertion of the cursor position. - From active chart display with cursor on: Same options as above, except that the zeroes in the position coordinates have been exchanged with the cursor position.

  • Page 39: Chart Setup

    CP44/54 Chart menu and INFO windows Chapter 3-17 3.5 Chart setup The settings are dedicated to the chart in the active window i.e smaller range or greater range chart, and does not affect the other chart. Load chart setup related to active chart Display mode FULL General...

  • Page 40: Display Modes In The Chart Setup

    Chapter 3-18 CP44/54 Chart menu and INFO windows 3.5.1 Display modes in the chart setup There are six different display modes to choose from: FULL (default), CUSTOM, SIMPLE, FISHING, LOW and GRID. When a function or level is shown in grey text it means that it is not available in the selected display mode. The default settings in the various display modes are: Level: General The available functions are according to display example on previous page for...
  • Page 41 CP44/54 Chart menu and INFO windows Chapter 3-19 Level: Depth The default settings in this level are fixed in all display modes, except for *Custom where it is possible by the user to alter the features. These C-MAP features are not available in GRID display mode. C-MAP features Full *Custom...

  • Page 42: Description Of Chart Features

    Chapter 3-20 CP44/54 Chart menu and INFO windows Level: User data The default settings in this level are the same for all display modes and any change of the default settings can be carried out individually in all display modes. Chart features Defaults and choice of settings Waypoints...
  • Page 43 CP44/54 Chart menu and INFO windows Chapter 3-21 Cursor 5 min. time-limit - can be set ON or OFF. When set to ON, the chart cursor will automatically turn off if not used in a period of five minutes. Declutter - when set to ON there will be no overlapping text on the chart e.g. Names, Spot soundings etc.
  • Page 44 Chapter 3-22 CP44/54 Chart menu and INFO windows US - will present NavAids in simplified shapes and real colors (as generally found on NOAA paper charts). US SIMPLIFIED - the NavAids will be shown in generic symbols for mini- mum visual clutter on-screen. OFF - will shown no Nav-Aids on the chart.

  • Page 45: Echo Menu

    CP44/54 Echo menu Chapter 4-1 4. Echo menu ECHO Depth & temperature diagram Custom screen 4.1 Depth & temperature diagram MENU Call up the menu bar, and... activate Depth & temperature diagram Present water temperature and depth. Depth over time or dis- tance.
  • Page 46 Chapter 4-2 CP44/54 Echo menu Setup for Depth: Scale for depth: 0 -> Color for depth: Scale for temperature: 0 -> 20 °C Color for temperature: Interval of screen: TIME Time interval: 5 MIN. Go to the function you wish to change Key in new figures, or...

  • Page 47: Custom Screen

    CP44/54 Echo menu Chapter 4-3 4.2 Custom screen MENU Call up the menu bar, and... call up the custom screen from Echo menu The displays, which are not related to the Echo function i.e. all dis- plays except the Depth & temperature diagram in the top left quarter of the screen, can be exchanged with a different one.
  • Page 48 Chapter 4-4 CP44/54 Echo menu...

  • Page 49: Pilot Menu

    CP44/54 Pilot menu & navigation examples Chapter 5-1 5. Pilot menu PILOT Highway - see section 5.2 & 5.2.1 Position - see section 5.3 Dual Speed - see section 5.4 ETA & AVN - see section 5.5 Trim & Highway - see section 5.6 Set &...
  • Page 50 Chapter 5-2 CP44/54 Pilot menu & navigation examples Press the [PILOT] key from any display to call up a display in the pilot-series, and: PILOT Long press on the [PILOT] key will toggle between (default): Highway Custom screen 1 Custom screen 2 From one of the pilot displays i.e.

  • Page 51: Highway Display And Navigation Setup

    CP44/54 Pilot menu & navigation examples Chapter 5-3 5.2 Highway display and Navigation setup MENU Call up the menu bar, and... load Highway display When there is no navigation mode active, you will receive the legend: NAVIGATION IS OFF. Before starting out in one of the navigation modes, it may be a good idea to check out the Navigation setup display and see if the default settings will suit your need.
  • Page 52 Chapter 5-4 CP44/54 Pilot menu & navigation examples The waypoint alarm will be activated when you reach the circle or the perpendicular line - WP line alarm - crossing through the waypoint. When “Auto waypoint shift” is set to “WP-circle” it will override the “WP circle alarm”...

  • Page 53: Highway Display When Navigation Mode Is Active

    CP44/54 Pilot menu & navigation examples Chapter 5-5 5.2.1 Highway display when navigation mode is active MENU Call up the menu bar, and... load Highway display With navigation mode active, the highway display will provide a graphical steering display: Intended track between two waypoints.

  • Page 54: Position Display

    Chapter 5-6 CP44/54 Pilot menu & navigation examples 5.3 Position display MENU Call up the menu bar, and... load the Position display Datum currently selected. Trip log 1 and 2. Position with three decimals in minutes. Speed over ground. Course, magnetic or true.
  • Page 55 CP44/54 Pilot menu & navigation examples Chapter 5-7 Status indicator and accuracy Small letters (a,b,c,) indicate that SA is active, and the position accuracy is expected to be better than 100 meters in 95% of the time. Capital letters indicate that SA is OFF, and the position accuracy is then expected to be 15 meters or better in 95% of the time.
  • Page 56 Chapter 5-8 CP44/54 Pilot menu & navigation examples Key in new values, or... Toggle between available values Confirm editing and return to the Position display Datum - is preset to WGS 1984 (World Geodetic System 1984), but can be changed to any of the 118 datums listed in Appendix B e.g. to match old paper charts or trackplotter data from RS2500/RS4000 (datum #002 European 1950).

  • Page 57: Dual Speed Display (Trawling Speed Display)

    CP44/54 Pilot menu & navigation examples Chapter 5-9 5.4 Dual speed display (trawling speed display) The analogue differential speed indicator will show how much the present speed varies from the average speed. If the difference exceeds +/- 3 knots (or km/h or miles/h), an arrow will appear which will be pointing out of the scale.

  • Page 58: Eta & Avn Display

    Chapter 5-10 CP44/54 Pilot menu & navigation examples 5.5 ETA & AVN display MENU Call up the menu bar, and... load the ETA & AVN display -to receive any data will require that navigation mode is active. ETA - Estimated Time of Arrival - refers to the inserted local time, and can be calculated to any point used for navigation.

  • Page 59: Trim & Highway Display

    CP44/54 Pilot menu & navigation examples Chapter 5-11 Go to AVN, and... Insert time and date Confirm entry 5.6 Trim & Highway display Some of the readings rely on data from external log and compass. The Trim & Highway display will provide information on actual and mean speed, velocity and water speed - see also section 5.7 Set &...

  • Page 60: Set & Drift Display

    Chapter 5-12 CP44/54 Pilot menu & navigation examples 5.7 Set & Drift display The readings rely on data from external log and compass. MENU Call up the menu bar, and... load the Set & Drift display Relative direction. True direction. Speed.

  • Page 61: Pilot Custom Screens

    CP44/54 Pilot menu & navigation examples Chapter 5-13 5.8 Pilot custom screens The two custom screens in thepilot menu consist of multiple window combinations e.g.: The displays presented in the example above are the default displays for Custom screen 1 under the PILOT menu. Top left quarter window shows the Highway display, which can be exchanged with a different display from the pilot menu, either by single press on the [PILOT] key which will toggle through all the...

  • Page 62: Navigation Examples

    Chapter 5-14 CP44/54 Pilot menu & navigation examples 5.9 Navigation examples 5.9.1 Chart/cursor navigation. 5.9.2 Waypoint navigation. 5.9.3 Route navigation. 5.9.4 Track navigation. Relevant for all navigation modes are: - the highway display with graphical steering - section 5.2.1. - the ETA & AVN display with Estimated Time of Arrival and Approximate Velocity Necessary to reach a given point at a specific time - section 5.5.

  • Page 63: Waypoint Navigation

    CP44/54 Pilot menu & navigation examples Chapter 5-15 Next destination: While on the way, you can easily move the cursor to the next destination, and when ready to change navigation leg... GOTO Call up the GOTO menu Restart to approaching point - a new course line will be drawn from ship’s position to destination.

  • Page 64: Route Navigation

    Chapter 5-16 CP44/54 Pilot menu & navigation examples 5.9.3 Route navigation To start Route navigation will require that at least one route is stored in the memory. Refer to section 3.4.9 PLOT menu. There are two ways to start Route navigation: •...

  • Page 65: Track Navigation

    CP44/54 Pilot menu & navigation examples Chapter 5-17 routepoint. Pressing [GOTO] from chart display during navigation will activate GOTO an INFO window with the following functions to choose from: 1. Advance (to next routepoint) 2. Restart to approaching point (in case you have drifted off course) 3.
  • Page 66 Chapter 5-18 CP44/54 Pilot menu & navigation examples This will activate the pop-up window “Navigate in track” from where you can choose which track you wish to select for navigation: Scroll up/down in the track list until the correct track number / name appears Use the cursor to move around in the window if anything needs to be changed - such as Direction in track, etc.

  • Page 67: Anchor Guard

    CP44/54 Pilot menu & navigation examples Chapter 5-19 5.10 Anchor guard GOTO Call up the GOTO menu, and... activate the anchor guard function -the chart display will provide an impression of the vessel’s position in relation to the alarm circle. To check/change the preset alarm distance: MENU Call up the menu bar, and...
  • Page 68 Chapter 5-20 CP44/54 Pilot menu & navigation examples...

  • Page 69: Miscellaneous Menu

    CP44/54 Miscellaneous menu Chapter 6-1 6. Miscellaneous menu MISC Wind - see section 6.1 Speed diagram - see section 6.2 Decca lanes - see section 6.3 Loran C - see section 6.4 Satellites - see section 6.5 DGPS - see section 6.6 SDGPS - see section 6.7 DSC info...
  • Page 70 Chapter 6-2 CP44/54 Miscellaneous menu Load Setup for Wind display Setup for Wind: Damping level: MEDIUM Relative wind scale: NORMAL Wind angle offset: 000° Show wind speed as: RELATIVE Wind speed unit: METERS/SECOND Go to the function you wish to change Toggle between settings, or...

  • Page 71: Speed Diagram

    CP44/54 Miscellaneous menu Chapter 6-3 6.2 Speed diagram MENU Call up the menu bar, and... load “Speed diagram” S= Speed over ground. V= Velocity towards waypoint. W*= Speed through water. SD (Set and drift)*= Speed and direction, true or relative. WIND*= Speed and direction.
  • Page 72 Chapter 6-4 CP44/54 Miscellaneous menu The scale for the speed diagram can be adjusted in this display. Time interval can be set in 8 intervals from 1 minute to 3 hours and freeze. Go to the function you wish to change Key in new figure or change setting Confirm entry and return to Speed diagram...

  • Page 73: Decca Lanes

    CP44/54 Miscellaneous menu Chapter 6-5 6.3 Decca lanes MENU Call up the menu bar, and... load decca chain display Leaf through the available chains - see below. Confirm entry To change the position readouts to decca mode, see section 8.2 under Pilot/Position setup, where ‘Display position as’...

  • Page 74: Loran C

    Chapter 6-6 CP44/54 Miscellaneous menu 6.4 Loran C MENU Call up the menu bar, and... load Loran C chain display Leaf through the available chains - see listing below. If required, go to the slaves, and... Toggle between available slaves (not all chains have more than one slave) ...and it is possible to alter the figures in the time delay If required, go to Offset, and key in a positive or negative offset...

  • Page 75: Satellite Status

    CP44/54 Miscellaneous menu Chapter 6-7 6.5 Satellite status MENU Call up the menu bar, and... load satellite status display The display will show which satellites are currently being used for computation of data. It will show their position together with SNR - Signal to Noise Ratio.
  • Page 76 Chapter 6-8 CP44/54 Miscellaneous menu Position update alarm “Alarm” in the satellite status display is preset to “OFF”. If the received position data is invalid, the position shown in the position display will start to flash. A position update alarm can be set ON/ OFF from the satellite status display [MENU],[4],[5]: Open for change Go to “Alarm”...

  • Page 77: Dgps Information

    CP44/54 Miscellaneous menu Chapter 6-9 6.6 DGPS information (optional) The DGPS - differential position corrections - can be provided from a built-in module, which is preset to full automatic operation, or from connected DGPS receiver - see “Status indicator” in position display.
  • Page 78 Chapter 6-10 CP44/54 Miscellaneous menu Status - can either be: LOCKED = locked on a beacon and receiving differential data. NOT LOCKED = not locked on a becon and receiving no differen- tial data. NOT INSTALLED = there is no built-in DGPS module in unit. NOT IN USE = external DGPS receiver applied.

  • Page 79: Sdgps Information

    CP44/54 Miscellaneous menu Chapter 6-11 6.7 SDGPS information The SDGPS - satellite differential GPS - is preset to full automatic operation, which means that the system will utilize the position cor- rections from either differential GPS stations (refer to section 6.6) or satellite differential GPS signals from WAAS, EGNOS or MSAS (refer to section 6.7.1).
  • Page 80 Chapter 6-12 CP44/54 Miscellaneous menu Uses corrections from - indicates which differential corrections (DGPS or SDGPS) are currently used for position determination. CHANNEL 1: sat.no. - indicates which satellite number and name is currently tracked/searched by channel 1, and what is the tracking state.

  • Page 81: Satellites In Sdgps System

    It is, however, not expected to become fully employed till sometime in 2003. In the meantime, the system will have limited usage but will be available to all users with the latest Simrad equipment, such as the CPXX Chartplotter. Number...

  • Page 82: Dsc Info (Feature Prepared For Future Dsc Vhf)

    6.8 DSC info (feature prepared for future DSC VHF) To receive an iDSC Alarm and Message from VHF will require that the CPXX is connected to a compatible Simrad VHF radiotelephone. The data is transmitted via the NMEA sentence: $PSIMB,1,0,*hh<CR><LF>...

  • Page 83: Waypoints Stored In The Memory

    CP44/54 Waypoint / route menu Chapter 7-1 7. Waypoint / route menu WP/RTE Waypoints - see section 7.1 Routes - see section 7.2 Route calculation - see section 7.3 Lines - see section 7.4 Tracks - see section 7.6 Targets - see section 7.7 MOB data - see section 7.8...

  • Page 84: Delete Waypoints Via Menu

    Chapter 7-2 CP44/54 Waypoint / route menu Insert name of waypoint you wish to edit, or... Leaf through waypoints with +/- keys or up/down cursor Open for editing Place the cursor on the function you wish to change Key in new figures, or... toggle between available values PLOT Move the position to ship’s position...

  • Page 85: Routes Stored In The Memory

    CP44/54 Waypoint / route menu Chapter 7-3 7.2 Routes stored in the memory The route list will keep a record of all the saved routes in the system. It will provide information on number of waypoints in the route etc. Existing routes can be altered via the route list - see further on in this chapter, or directly on the chart via info windows - refer to sec- tions 3.4.4 and 3.4.5.
  • Page 86 Chapter 7-4 CP44/54 Waypoint / route menu This display provides information on course line, XTE line, route legs, routepoints etc. Call up the Edit route display - if you wish to make any changes. Setting the Course line to OFF in this display will make the route invisible on the screen.
  • Page 87 CP44/54 Waypoint / route menu Chapter 7-5 If the XTE distance is not the same in all legs, the value will be *.* instead of the 00.10nm. Navigation mode can be either RHUMB- LINE or GREAT CIRCLE, or... if not set to the same in all legs in a route, the mode will be: COMPOSITE.

  • Page 88: Delete Route Via Menu

    Chapter 7-6 CP44/54 Waypoint / route menu 7.2.1 Delete route via menu MENU Call up the menu bar, and... load route list Select the route you wish to delete Call up the route details on highlighted route Open for editing Delete route Confirm that you want to delete the selected route, if not sure: press [MENU] to exit the display without having made any changes.
  • Page 89 CP44/54 Waypoint / route menu Chapter 7-7 the +/- keys and then press [CLR] to remove the point from the route. Display example: Save the route with [ENT] and go to the Edit display - or leave the function with [MENU] to abandon the route. In the Edit route display you can set up the route preferences you need and also change the name of the route.

  • Page 90: Route Calculation

    Chapter 7-8 CP44/54 Waypoint / route menu 7.3 Route calculation To stay well informed during navigation, the Route calculation display will provide information on how long it takes to go from one point to another, total distance, arrival time etc. MENU Call up the menu bar, and...

  • Page 91: Lines Stored In The Memory

    CP44/54 Waypoint / route menu Chapter 7-9 7.4 Lines stored in the memory The line list will keep a record of all the saved lines in the system. It will provide information on number of line sections in line etc. ‘Lines’...

  • Page 92: Delete Lines Via Menu

    Chapter 7-10 CP44/54 Waypoint / route menu Turning “Line” OFF will make the line drawing invisible on the screen. Put it back on the screen by turning it ON again. Place the cursor on the function you wish to change i.e. name, line type or color Toggle between available values Confirm entry...

  • Page 93: Start / Stop Track

    CP44/54 Waypoint / route menu Chapter 7-11 7.5 Start / stop track The track function will provide a track trailing the movement of your ship. As default from the factory, the first track is stored as TRACK 1, the next as TRACK 2 etc. To start track function: TRACK Load Start track pop-up window...

  • Page 94: Tracks Stored In The Memory

    Chapter 7-12 CP44/54 Waypoint / route menu Type of track line i.e. full, dotted, etc. has 9 different types to choose from in 15 different colors. To stop track: TRACK Load Stop track pop-up window Stop the highlighted track 7.6 Tracks stored in the memory All tracks (of more than 1 trackpoint) will automatically be stored in the memory.

  • Page 95: Delete Tracks Via Menu

    CP44/54 Waypoint / route menu Chapter 7-13 “Display track” can be set ON/OFF, where OFF will make it invis- ible on the screen. Turn ON to put it back on the screen. Toggle between available values Confirm changes 7.6.1 Delete tracks via menu MENU Call up the menu bar, and...

  • Page 96: Targets Stored In The Memory

    Chapter 7-14 CP44/54 Waypoint / route menu 7.7 Targets stored in the memory The CPXX can display the bearing and distance of up to three targets at a time in relation to the vessel e.g. harbors or important navigational points. A target is a fixed point on the chart which can be plotted by the cursor or from the ship’s position - refer to section 3.4.9, or keyed in via the keypad - refer to section 3.4.7.

  • Page 97: Delete Target Via Menu

    CP44/54 Waypoint / route menu Chapter 7-15 Toggle between available values Confirm entry 7.7.1 Delete target via menu MENU Call up the menu bar, and... load target display Select the target you wish to delete Open for editing Delete target Confirm that you want to delete the selected target, if not sure: press [MENU] to exit the display without having made any changes.

  • Page 98: Data Transfer Via Datacard Or Disc

    7.9 Data transfer via DataCard or disc Data transfer to and from external memory can be performed via Simrad DataCard, or with a Simrad TL50 Turbo Loader via an ordi- nary 1.44Mb disc. DataCards and TL50 Turbo Loader are optional equipment available from your local Simrad dealer.
  • Page 99 CP44/54 Waypoint / route menu Chapter 7-17 DataCard status Press [1] to find out what data (if any) is stored on the DataCard The capacity is divided into two databanks: DATABANK 1 and 2 which can hold approx. 2 x 450 Kb data. Toggle between the two databanks with the +/- keys.
  • Page 100 However, it is not immediately accessible to transfer data via Data- Card from the new model CP44/54 to the older model CP42, etc., as this would require an update of the CP42. - For more information, please contact an authorized Simrad dealer. Load from DataCard: DATABANK-1...

  • Page 101: List Of Criteria For Data Transfer In The Action Column

    CP44/54 Waypoint / route menu Chapter 7-19 Press [MENU] to exit and *reboot (only if loading “Setup”) MENU *) When the system makes a ‘reboot’ the screen will turn black for a brief moment, then the system will re-start and automatically return to the active display which was on the screen before you made the transfer.

  • Page 102: Data Transfer Via Pc Interface

    Chapter 7-20 CP44/54 Waypoint / route menu 7.10 Data transfer via PC interface Data transfer to and from a route planning program on a Personal Computer can be made via NMEA connection (Refer to Optional connections in the Installation manual) by means of the standard NMEA0183 sentences WPL and RTE.
  • Page 103 CP44/54 Waypoint / route menu Chapter 7-21 NMEA 1 connection Transmit WPs Transmit routes Receive WPs and routes MENU Exit Transmit WPs Press [1] to start transmission of all waypoints stored in the CPXX WP list to PC When the transmission is completed you will receive a new info window informing of how many waypoints were transferred.
  • Page 104 “Saving completed” in the info window. You are now ready to: Exit function and return to normal NMEA communication MENU NB! PC-based planning systems differ in operation and performance beyond the control of Simrad.

  • Page 105: Setup Menu

    CP44/54 Setup menu Chapter 8-1 8. Setup menu SETUP CHART C-MAP cartridges - see section 8.1 PILOT Pilot/Position setup - see section 8.2 Speed alarm, units & language - see section 8.3 NMEA interface - see section 8.4 Alarm/log output - see section 8.5 Palette setup - see section 8.6...

  • Page 106: C-Map Cartridges

    Chapter 8-2 CP44/54 Setup menu C-MAP cartridges UPPER Name: EAST DENMARK AND WEST SWEDEN Code: EN-C161.4 Date: 14/09/2002 LOWER Name: Code: Date: Exit Test MENU Press [ENT] to test the data on the C-MAP C-card If a C-card is defect, it must be removed before you can exit the dis- play.

  • Page 107: Pilot / Position Setup

    CP44/54 Setup menu Chapter 8-3 8.2 Pilot / Position setup MENU Call up the menu bar, and... open the SETUP menu, and... load Pilot/Position setup display PILOT Pilot/Pos setup: Display position as: LAT/LON Delta position: 0°00.000N 0°00.000E Start position: 56°57.000N 010°25.000E Speed and course filter level: Display speed as: Course and bearing as:...

  • Page 108: Speed Alarm, Units & Language

    Chapter 8-4 CP44/54 Setup menu Display speed as - SOG Speed Over Ground or STW Speed Through Water. Toggle with +/-. To receive STW information from external instrument (via NMEA port) will require that NMEA sentence VHW or “Log speed sensor” are set to ON.
  • Page 109 CP44/54 Setup menu Chapter 8-5 Confirm changes, or... exit function without making any changes MENU Setup for speed: LOG speed sensor - set to ON, the dual speed display will show water speed from external log sensor (via ECHO port). - set to OFF and NMEA sentence VHW set to ON, the readout will show water speed from external water speed instrument (via NMEA port).

  • Page 110: Interface Setup, Nmea

    Chapter 8-6 CP44/54 Setup menu TL50 version - indicates if a TL50 Turbo Loader is connected and which software version is implemented. GPS receiver type - indicates which type is installed in the unit (for technicians only). PAGE rotation interval - can be set to anywhere between 03 to 99 seconds.

  • Page 111: Default Sentences

    CP44/54 Setup menu Chapter 8-7 Toggle between individual settings i.e. NMEA0183, EXT.DGPS, NMEA0180, NMEA0182 Go to any sentence you want to change Toggle between values, and between ON and OFF Confirm entry, and accept warning (press [ENT] again), or... exit function without making any changes MENU 8.4.1 Default sentences ------------------------------------------------------------...

  • Page 112: Description Of Sentences

    Chapter 8-8 CP44/54 Setup menu ------------------------------------------------------------ Interface setup: OUTPUT Port: NMEA1 - NMEA0183. NMEA2 - NMEA0183 Sentence String NMEA1 NMEA2 Position data: Global Position System fixdata: Geographic position, Lat/Lon: WGS84 WGS84 Geographic position, Lat/Lon: Recom. min. specific GPS data: Track made good & ground speed: Time and date: Navigation data: Autopilot sentence ‘B’:...
  • Page 113 CP44/54 Setup menu Chapter 8-9 ZDA Time and date. WPL Waypoint location. RTE Routes, ONC ON Complete route, or... ONW ON Working route. RNN Routes. MTW Water temperature VHW Water speed and heading. Description of NMEA0183 instrument input WPL Waypoint data (will only be updated every 5 seconds). TLL Target data (will only be updated every 5 seconds).

  • Page 114: Interface Setup, Alarm/Log Output

    Chapter 8-10 CP44/54 Setup menu 8.5 Interface setup, alarm output MENU Call up the menu bar, and... load display for Alarm output Interface setup, alarm: Output (pin 1,2): Alarm stand-by level: Interface setup, pos-status: Output (pin 4,6): Pos-status stand-by level: HIGH Interface setup, log: Output (pin 5,6):...

  • Page 115: Palette Setup

    CP44/54 Setup menu Chapter 8-11 8.6 Palette setup MENU Call up the menu bar, and... load the Palette setup Palette 1 to 4 are preset to bright daylight (sunshine) in 1 and 2, normal daylight in 3, and night setting in 4. These four setups are not adjustable.

  • Page 116: Factory Settings

    Chapter 8-12 CP44/54 Setup menu Key in a name for the new palette setup - max. 29 characters, -refer to “Naming of routes, points, etc.” in section 2.6. Toggle between available color settings Confirm new setup 8.7 Factory settings DELETE MEMORY: It will be possible to erase a single category of objects entered into the unit by the user - for example, if moving to a different place in the world you may no longer need the routes etc.
  • Page 117 CP44/54 Setup menu Chapter 8-13 DELETE MEMORY: Delete all WAYPOINTS Delete all ROUTES Delete all LINES Delete all TRACKS Delete all TARGETS Used memory: FACTORY PRESETS: Return to NMEA presets Return to CHART presets Return to all factory presets Show test display MENU Exit If you are absolutely sure, press [ENT] to complete the job...

  • Page 118: Quickguide

    A description of the key functions and general guidance* is avail- able in a QuickGuide, which can be accessed either at start-up in the ‘Welcome to Simrad’ display - press [PAGE], or via the menu: MENU Call up the menu bar, and...

  • Page 119: Troubleshooting

    CP44/54 Troubleshooting, Service and Specifications Chapter 9-1 9.1 Troubleshooting For all fault finding, first check that the supply voltage is between 10-32 VDC Symptom Check Remedy No picture on display Check that the unit is Press the [PWR] key on screen turned on keypad...

  • Page 120: Preventive Maintenance

    The CPXX is sealed and does not contain any user serviceable parts. Opening of this unit will void its warranty. If the CPXX requires servicing or repair, call your authorized SIMRAD dealer, but first check Troubleshooting in sec- tion 9.1.

  • Page 121: Specifications

    2 m incl. fuse F6.3A (153-5000-006) Dimensions: CP44: H:220 mm (8.8”) W:365 mm (14.6”) D:75 mm (3”) CP54: H:330 mm (13”) W:460 mm (18.1”) D:95 mm (3.7”) Weight: CP44: 3.7 kg (8.1 lbs), CP54: 6.6 kg (14.5 lbs) Environment: 0° to +50°C, waterproof USC 46 CFR and IP55...
  • Page 122 Power cable, 2 m, 4-pin female connector, incl. fuse F6.3A (153-5000-006) NMEA2 cable, 1.5 m, 9-pin female connector (153-3002-005) Antenna cable, 10 m RG58 Options Simrad DataCards C-MAP NT+ electronic charts TL50 TurboLoader, external disc drive and NMEA interface 6-channel NMEA Buffer RS5345 NMEA1 cable, 1.5 m, 9-pin male connector (153-3002-004)
  • Page 123 CP44/54 Glossary of terms Appendix A-1 Almanac – a satellite’s almanac data, is data which determines an approxi- mate lane for satellites in orbit. The almanac data is used by the GPS receiver to find and lock onto the satellite signal. CPXX has a built-in basic almanac. Auto trackpoint shift –...
  • Page 124 Appendix A-2 CP44/54 Glossary of terms flow passing the transducer. The correct pulse rate is calculated by: 19000 x indicated speed (e.g. 4kn) = 15.200 pulses/nm actual speed (GPS) (e.g. 5kn) Measurement units – the user may select the displayed units to be one of the following: meters feet...
  • Page 125 CP44/54 Glossary of terms Appendix A-3 flashing once normal position update is resumed. Restart to approaching point – will automatic recalculate the navigation data from current position to approaching point. Rhumbline – is the straight line to a waypoint on a chart. Route name –...
  • Page 126 Appendix A-4 CP44/54 Glossary of terms...
  • Page 127 CP44/54 List of datum Appendix B-1 Select the appropriate datum by 037 Guam 1963 inserting the number prefix: 038 GUX 1 Astro Press [MENU], [3], [2], [ADJ], and 039 Hjorsey 1955 key in the desired number by means 040 Hong Kong 1963 of the numerical keys or the +/- keys, 041 Indian confirm entry by [ENT].
  • Page 128 Appendix B-2 CP44/54 List of datum 081 Southwest Base 082 Timbalai 1948 083 Tokyo 084 Tristan Astro 1968 085 Viti Levu 1916 086 Wake-Eniwetok 1960 087 Wake Island Astro 1952 088 Zanderij 089 Finnish Datum 090 Swedish Datum 091 World Geodetic System 1984 092 World Geodetic System 1984 093 World Geodetic System 1984 094 World Geodetic System 1984...
  • Page 129 CP44/54 C-MAP attributes Appendix C-1 The optional detailed C-MAP NT+ cards can provide numerous of functions which are accessible via symbols presented on the electronic chart. Place the cursor on a C-MAP object e.g. a buoy or light to call up a small data window with details on the object.
  • Page 130 Appendix C-2 CP44/54 C-MAP attributes Press [ENT] to Open/Close for additional information available for the object next to ⌧ symbols. Use the cursor to move up/down in the list of objects in the left column - details on the object will appear in the right column. In case the details overflows the window, use the +/- keys to move up/down in the text lines.
  • Page 131 CP44/54 C-MAP attributes Appendix C-3 The facility information will stay on the screen for about 10 seconds. With the cursor left on the Port/Marina symbol, press [ENT], and [2] to call up the details on the facilities at this location Use the cursor key to scroll up/down in the objects in the left colum, and look in the right column for details on the objects The objects next to ⌧...
  • Page 132 Appendix C-4 CP44/54 C-MAP attributes Tide information Press [ENT] from the chart display to call up the Info window Press [3] to call up the C-MAP symbols with available facilities Use the +/- keys to select the location where you want to know the tide height Press [ENT] to go to the tide symbol on the location With the cursor placed on the tide symbol, press [ENT] to call up...
  • Page 133 CP44/54 C-MAP attributes Appendix C-5 Use the cursor (right side) to go to the year. Toggle to a different year Year with the +/- keys. The last four lines in the tide display will inform of Begin and End Twilight, Sunrise and Sunset for the selected date. Example of Tide height information: Caution - the tide information system is quite accurate.
  • Page 134 Appendix C-6 CP44/54 C-MAP attributes Objects organized in categories The purpose of the C-MAP functions is to select objects, which are to be dis- played on the screen (chart). The objects are organized in categories and each category can be selected as one, without having to decide upon almost 300 objects separately.
  • Page 135 CP44/54 C-MAP attributes Appendix C-7 Ports: Restaurant Tracks, routes: Berthing facility-up area Bank/Exchange office Deep water route part Causeway Pharmacy Deep water route centrel. Checkpoint Port/Marina Fairway Crane Boat hoist Ferry route Fuel station Navigation line Distance mark Water Precautionary area Dock area Electricity Radar line...
  • Page 136 Appendix C-8 CP44/54 C-MAP attributes Attention Areas/ Contiguous zone Military practice area Caution Areas: Continental shelf area National territorial area Fishing facility Custom zone Restricted area Marine farm/culture Dumping ground Sea-plane landing area Cable, submarine Exclusive economic zone Spoil ground Cable area Fishery zone Straight territorial sea...
  • Page 137 CP44/54 Chartplotter Index Agents end of manual Chart quick menu - continued, Alarms, - cursor inactive - anchor - cursor placed on route leg or - circle line section 3-10 - MOB back of front cover, 7-15 - cursor placed on routepoint or - position update linepoint 3-11...
  • Page 138 Index CP44/54 Chartplotter Differential data Lines, - DGPS information - delete all 7-10 - SDGPS information 6-11 - draw new line 3-15 - SDGPS systems 6-11 - edit via chart 3-10,3-11 - status indicator & accuracy - edit via menu 7-10 DOP limit - line list...
  • Page 139 CP44/54 Chartplotter Index Navigation - continued, Routes, - setup - calculation - simulator 8-9,A-2 - delete all 8-12 - track navigation 5-17 - edit via chart 3-10,3-11 - trim & highway display 5-11 - edit via menu 7-4,7-5,7-6 - turn navigation off 3-14,5-15 - make new route from WP list - waypoint navigation...
  • Page 140 Index CP44/54 Chartplotter Track function - continued, - edit via chart 3-12 - edit via menu 7-13 - interval 7-11 - line type 7-12 - navigation 5-17 - navigation setup - start / stop track 7-11 - stored in the memory 7-12 - trackpoints 7-11...

  • Page 142: Eu Declaration Of Conformity

    Article 3(1)(b) EN60945 Equipment Navigational equipment intended for world-wide use category aboard non-SOLAS vessels Model(s) Simrad CP44 and CP54 DGPS Chartplotter Simrad CE44 and CE54 DGPS ChartSounder Remarks Manufacturer Simrad Støvring AS Østre Allé 6, DK-9530 Støvring Denmark Telephone +45 98373499 Telefax +45 98373807 Signed ……………………....…...
  • Page 143 Warranty SIMRAD warrants that every product shall be free of defects in material and workman- ship as specified below: CATEGORY “A”: •Autopilots •Radars •Instruments •Navigators •Radiotelephones •Plotters •Gyro compasses incl. sensitive elements •Sonars •Echosounders •Trawl Instrumentation. These products are warranted for a period of 24 months on parts and 12 months on labor from date of purchase, except for category B items.
