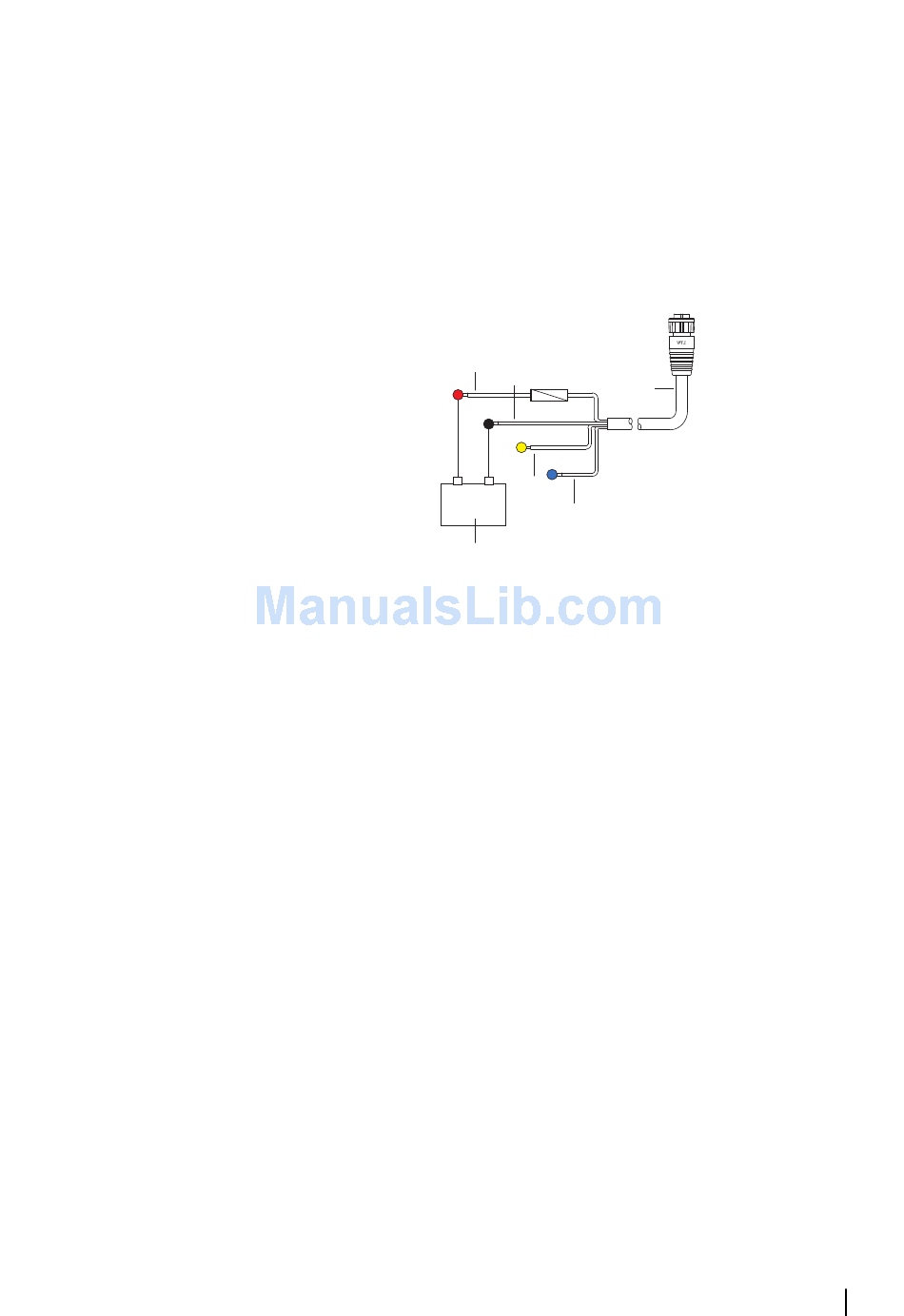

GO7 XSE Power connection
The unit is powered by 12 V DC. It is protected against reverse
polarity, under voltage, and over voltage (for a limited duration).
The supplied power cable has four cores used for:
• Power into the system (Red and Black wires).
• Controlling power state of the unit (Yellow wire).
• Connecting to an external alarm (Blue wire).
1
Power cable
2
12 V positive wire (red) shown with fuse holder fitted
3
12 V negative wire (black)
4
Power control wire (yellow)
5
Alarm wire (blue)
6
Vessel's 12 V DC supply
Connect Red to (+) DC using a 3 amp fuse.
Connect Black to (-) DC.
The unit can be powered on and off using the power button on the
front of the case.

Power control connection

The yellow Power Control wire in the power cable is an input that
will turn on the unit when power is applied.
Wiring | GO XSE Installation Manual
2 3
+ _
4
5
6
1
23
