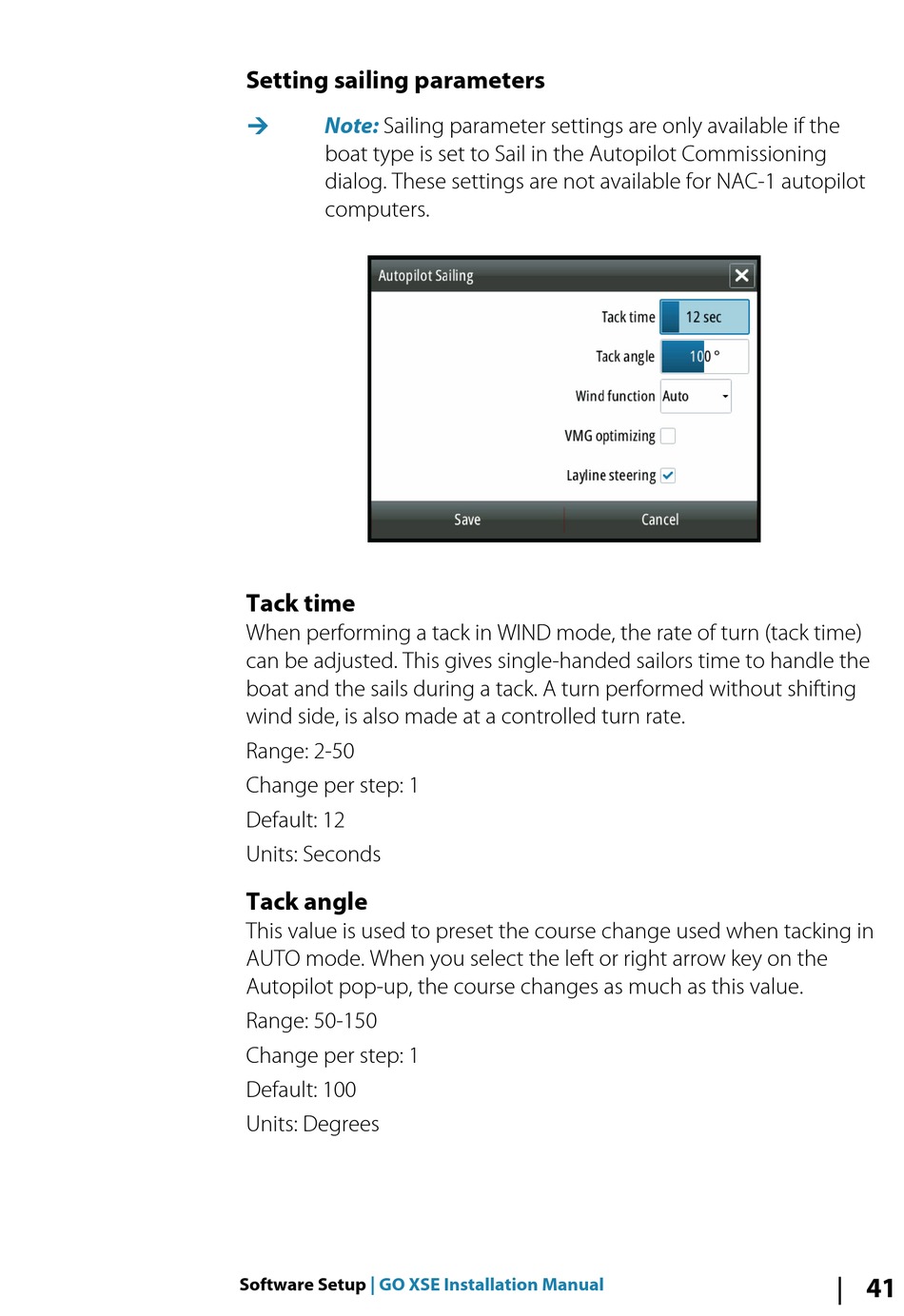

Simrad GO XSE Installation Manual page 41

Setting sailing parameters
Note:
Ú Sailing parameter settings are only available if the
boat type is set to Sail in the Autopilot Commissioning
dialog. These settings are not available for NAC-1 autopilot
computers.
Tack time
When performing a tack in WIND mode, the rate of turn (tack time)
can be adjusted. This gives single-handed sailors time to handle the
boat and the sails during a tack. A turn performed without shifting
wind side, is also made at a controlled turn rate.
Range: 2-50
Change per step: 1
Default: 12
Units: Seconds
Tack angle
This value is used to preset the course change used when tacking in
AUTO mode. When you select the left or right arrow key on the
Autopilot pop-up, the course changes as much as this value.
Range: 50-150
Change per step: 1
Default: 100
Units: Degrees
Software Setup | GO XSE Installation Manual
41
