Note:
Ú Tank data that is output by a compatible engine
gateway can also be displayed, however tank configuration
for such a data source is not possible from this unit.

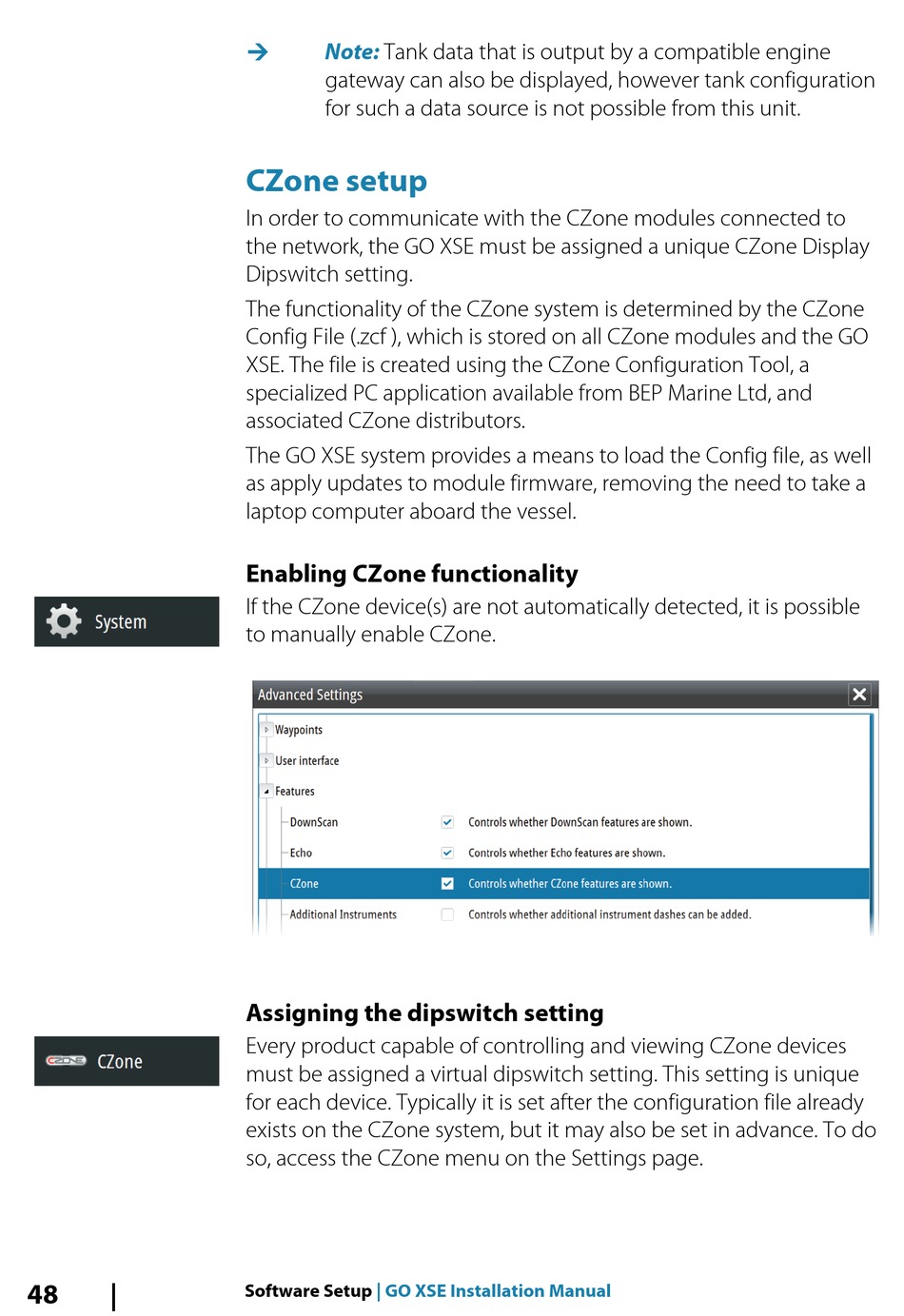

CZone setup

In order to communicate with the CZone modules connected to
the network, the GO XSE must be assigned a unique CZone Display
Dipswitch setting.
The functionality of the CZone system is determined by the CZone
Config File (.zcf ), which is stored on all CZone modules and the GO
XSE. The file is created using the CZone Configuration Tool, a
specialized PC application available from BEP Marine Ltd, and
associated CZone distributors.
The GO XSE system provides a means to load the Config file, as well
as apply updates to module firmware, removing the need to take a
laptop computer aboard the vessel.
Enabling CZone functionality
If the CZone device(s) are not automatically detected, it is possible
to manually enable CZone.
Assigning the dipswitch setting
Every product capable of controlling and viewing CZone devices
must be assigned a virtual dipswitch setting. This setting is unique
for each device. Typically it is set after the configuration file already
exists on the CZone system, but it may also be set in advance. To do
so, access the CZone menu on the Settings page.
