IMPORTANT:
Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference.
Save these Installation Instructions for the local electrical
inspector's use.
Tools Needed:
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Cordless drill
Drill bits
Adjustable wrenches (2)
Phillips screwdriver
Small level
³⁄₃₂" hex key
(panel kits only)
¹¹⁄₃₂" nut driver
Parts Needed:
#8 x 3" (7.6 cm) wood screws (longer screws may be needed) (6)
2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood boards (2)
Custom wood overlay panels—consult a qualified
cabinetmaker or carpenter to make the custom wood panels.
See "Custom Wood Overlay Panels" for more information.
"Panel Kit Installation Requirements" for panel kit information.
Flexible, codes approved water supply tubing, a ferrule, a union
and a ¹⁄₄" (6.35 mm) compression fitting.

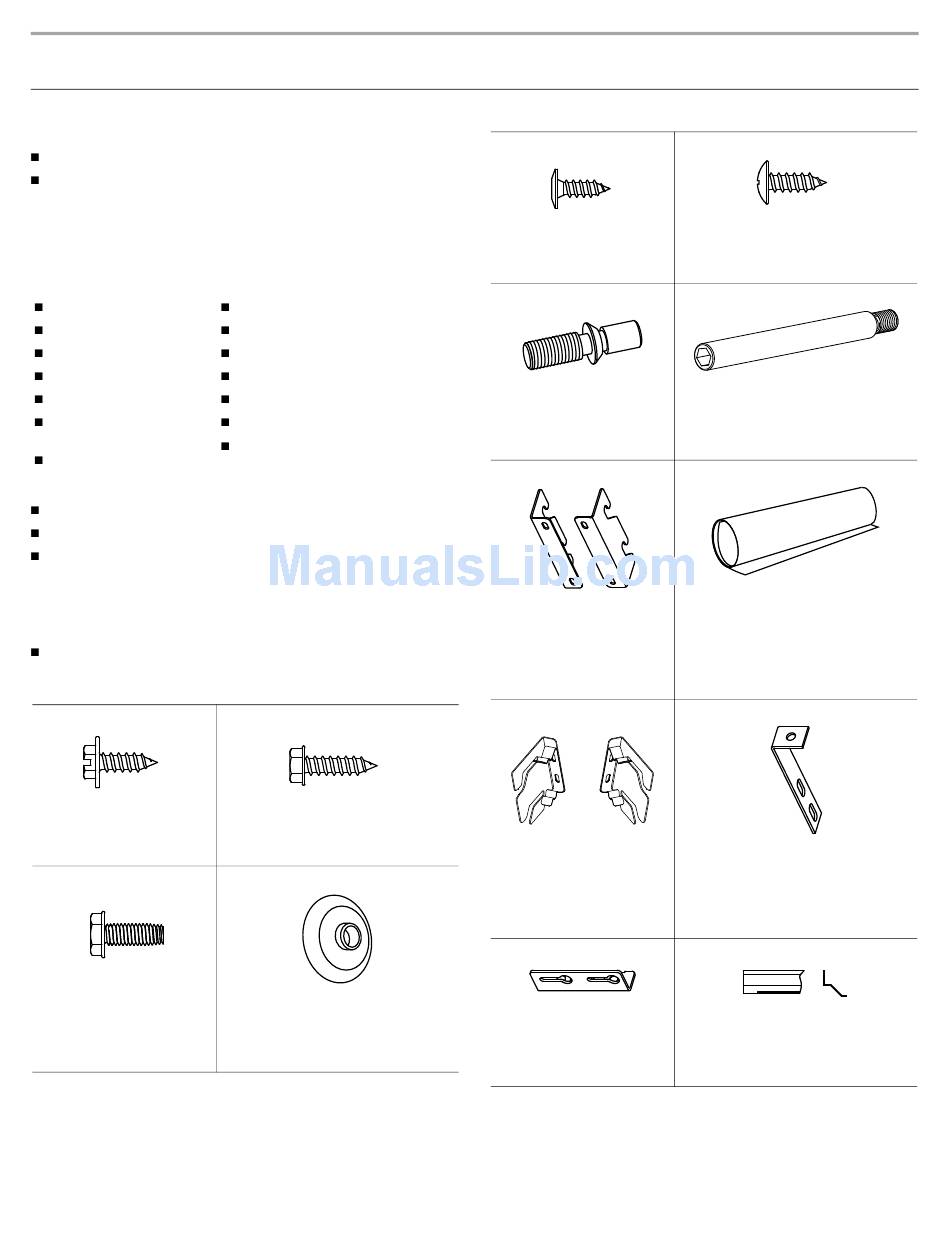

Parts Provided:
Slotted hex-head screw
W10141645 (21)
Hex-head blunt screw
W10142233 (4)
6

INSTALLATION REQUIREMENTS

Tools and Parts

³⁄₈" and ¹⁄₂" open-end wrenches
⁵⁄₃₂" and ³⁄₁₆" hex key
¹⁄₄" and ⁵⁄₁₆" socket drivers
Tape measure
Utility knife
Tape (painters)
Appliance dolly
OR
Hex-head pointed screw
W10141189 (8)
Shoulder washer (use with hex-head
pointed screw)
W10471946 (4)
Phillips-head flat screw
8281252 (28)
Door Adjustment Pin
(preinstalled)
W10234194 (2)
Standard Integrated Grille
Bracket
W10182743—Left (1)
W10182741—Right (1)
Fully Integrated Grille
Bracket
W10260890—Left (1)
W10260891—Right (1)
Panel top bracket
W10667450 (2)
Round-head screw
1163283 (24)
Door Stop Pin
W10234202 (2)
Panel templates
W10488101 - 42" SxS
W10488113 - 48" SxS
W10744761 - Grille
Filler Board "L" Bracket
W10234199 (2)
Top Grille Lower Trim
W10606812—42" SxS (1)
W10740171—48" SxS (1)
