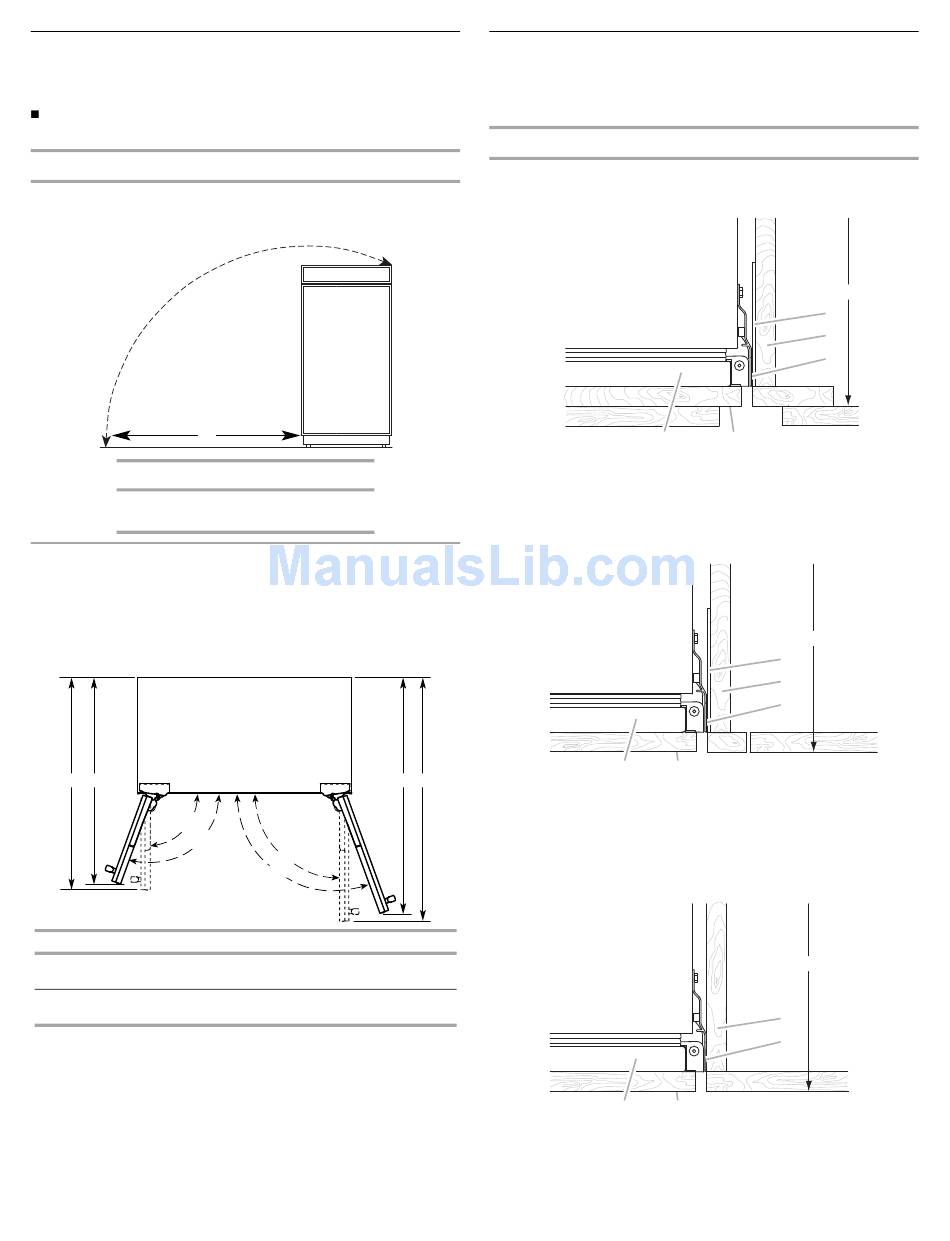

Tipping Radius; Door Swing Dimensions; Cabinet And Panel Installation Options - Jenn-Air JS42NXFXDE Installation Manual

Tipping Radius

Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
The dolly wheel height must be added to the tipping radius
when a dolly is used.
Side Tipping Radius
The side tipping radius varies depending upon the width of the
model. Use the chart provided to determine the side tipping radius.
NOTE: Tip on side only.
A
Model Tipping Radius A
42 91³⁄₈" (232.1 cm)
48 94³⁄₈" (239.7 cm)

Door Swing Dimensions

The location must permit both doors to open to a minimum of 90°.
Allow 4¹⁄₂" (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using wood
overlay panels, custom handles, or extended handles.
A B
90˚
110˚
Model A
42 40³⁄₄"
(103.5 cm)
48 43¹⁄₄"
(109.9 cm)
10
90˚
110˚
B C D
45³⁄₈"
39³⁄₄" 46³⁄₄"
(115.3 cm)
(101.0 cm) (118.8 cm)
48⁵⁄₈"
42" 50¹⁄₄"
(106.7 cm) (123.5 cm) (127.6 cm)

Cabinet and Panel Installation Options

NOTE: Graphics shown below illustrate installation configuration
options given the specified cabinet depths. All possible
configurations are not shown.
Cabinet Depth—25" (63.5 cm)
Framed Cabinetry
Top View
A. Refrigerator door
B. Door panel
C. Side trim
Inset
Top View
C D
A. Refrigerator door
B. Door panel
C. Side trim
Frameless Cabinetry
Top View
A. Refrigerator door
B. Door panel
C. Side trim
A B
D. Adjacent cabinet
E. Flush return filler
F. 25" (63.5 cm)
E
D
C
A B
D. Adjacent cabinet
E. Flush return filler
F. 25" (63.5 cm)
D
C
A B
D. Adjacent cabinet
E. 25" (63.5 cm)
F
E
D
C
F
E
