5. Connect the 7 ft (2.13 m) flexible codes-approved water supply
line to the refrigerator.
NOTE: If the main water shutoff valve is behind the refrigerator,
a secondary water shutoff valve may be installed in line with the
water supply line at the front of the product.

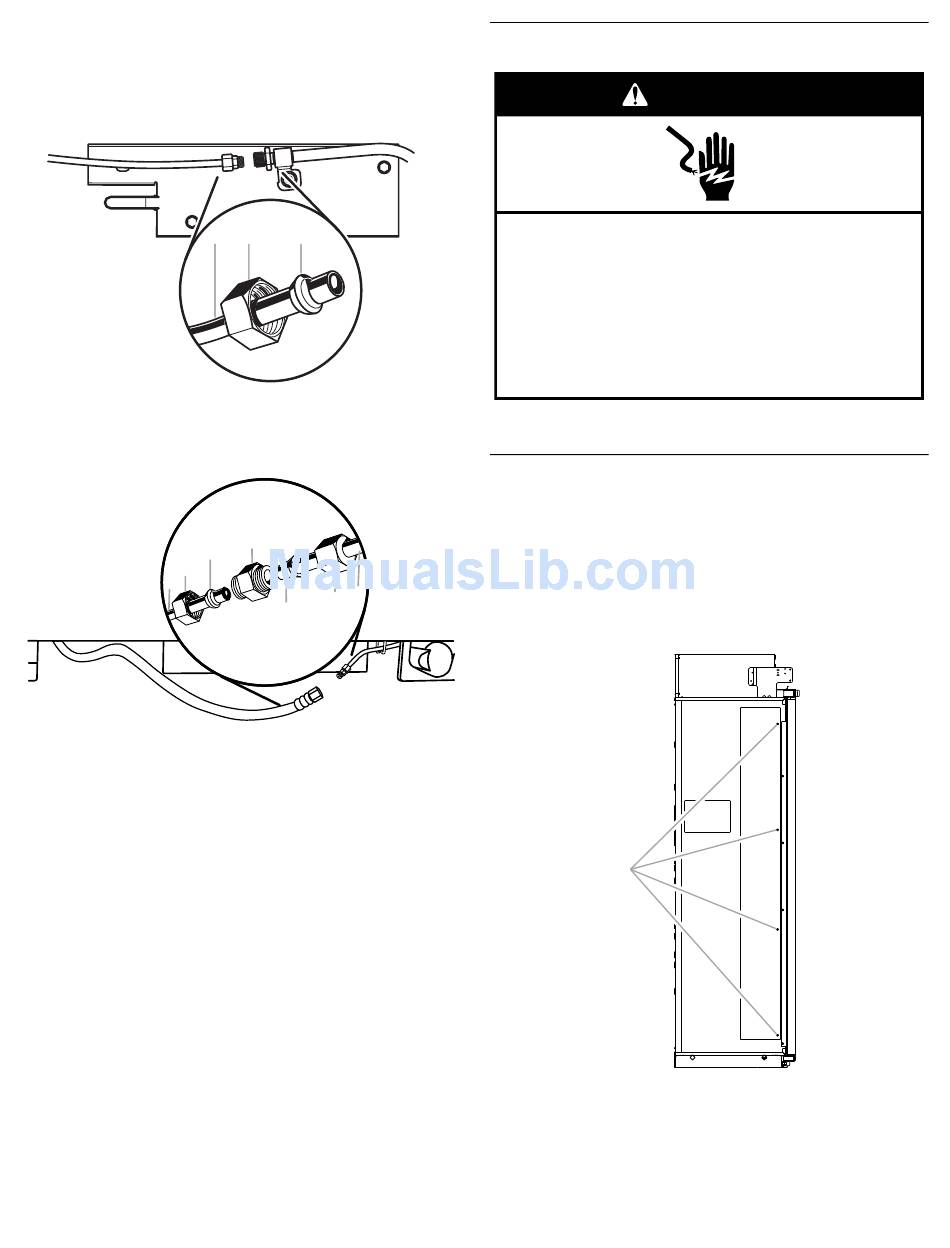

Overmold Coupling (on some models)
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
Discrete Coupling (on some models)
B
A
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Coupling
6. Turn on the water supply valve and check all connections
for leaks.
A B C
D
C
F G
E
E. Bulb
F. Nut
G. Refrigerator water tubing

Plug in Refrigerator

WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Set control switch at top of cabinet to the OFF position.
2. Plug into a grounded 3 prong outlet.

Install Side Trims

The side trims cover the space between the refrigerator and the
adjacent cabinets. There is a trim piece taped to each side of the
refrigerator. Install each trim piece to the side of the refrigerator to
which it is taped.
1. Remove the tape attaching the trim pieces to the sides of the
refrigerator. Set the trim pieces aside.
2. Remove the four screws from the side of the refrigerator
cabinet.
A
A. Side trim screws
3. Using the original holes and the screws removed in Step 2,
fasten the side trim to the refrigerator cabinet.
NOTE: Make sure to fasten each trim piece to the side of the
refrigerator cabinet from which it was removed. The tapered
shaped edge should be forward with the notches aligning with
the door hinges.
