3. Continue adjusting the leveling legs until the top of the
refrigerator is making contact with the bottom of the solid soffit,
or the bottom of the anti-tip boards, if anti-tip boards were
used. Do not crush the compressor cover.
IMPORTANT: Adjust in small increments to keep from
damaging the cabinet trim and causing problems with the door
alignment or top grille fit. To avoid damage to the cabinet or
leveling legs, do not apply more than 50 inch-pounds (5.65 Nm)
of torque to the leveling bolts. The leveling legs can be
extended to a maximum of 1¹⁄₄" (3.18 cm) below the rollers.

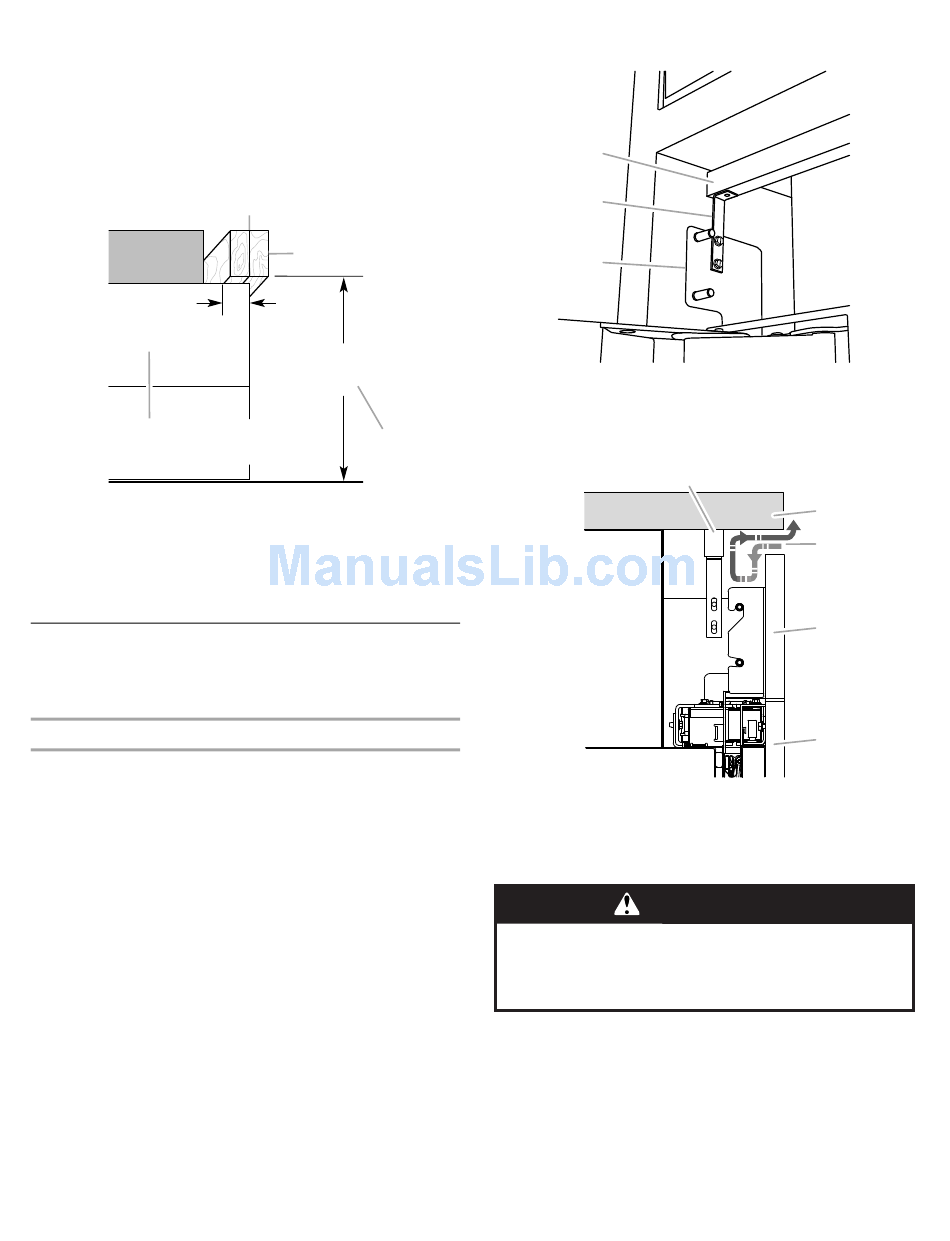

2" (5 cm)
C
A. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
B. Attach to studs with six #8 x 3" (7.6 cm) screws.
C. Compressor cover
D. Distance from bottom of anti-tip board to floor
4. After leveling the refrigerator, again use a straight edge or 4-ft
level across the front of the refrigerator installation blocks to the
cabinets to check that the refrigerator is still flush.

Install Refrigerator and Panels

IMPORTANT: Jenn-Air is not responsible for the removal or
addition of molding or wood overlay panels that would not allow
access to the refrigerator for service.
Install Top Grille Filler (standard installation only)
IMPORTANT: The grille panel height allows the necessary airflow
for refrigerator performance. The top grille filler hides the upper
compartment cover behind the top grille. If you choose to modify
the recommended grille panel dimensions, performance will be
compromised.
Custom Wood Panel Models
1. In the custom made (1" x width of grille panel) wood filler piece,
¹¹⁄₁₆
drill a hole " from each edge.
NOTE: Make sure the hole is centered in the 1" thickness of the
wood piece.
2. Using slotted hex-head screws (provided with refrigerator),
fasten an "L" bracket to each end of the wood filler piece.
3. Using hex-head blunt screws (provided with refrigerator),
attach the "L" brackets to the top grille mounting plates.
A
B
84"
(213.4 cm)
D
4. Adjust the "L" brackets, so that the wood filler piece is flush
with the bottom of the soffit. Completely tighten the screws.
A
B
C
A. Top grille filler
B. "L" bracket
C. Grille mounting plate
Side View
A. Top grille filler
B. Soffit
C. Airflow
Panel Kit Models
WARNING
Excessive Weight Hazard
Use two or more people to move and install panels.
Failure to do so can result in back or other injury.
1. Align top grille vent (provided in the door kit) with the bottom
edge of the soffit. Use as a template, and mark where to drill
the holes.
A
B
C
D
E
D. Grille panel
E. Door panel
19
