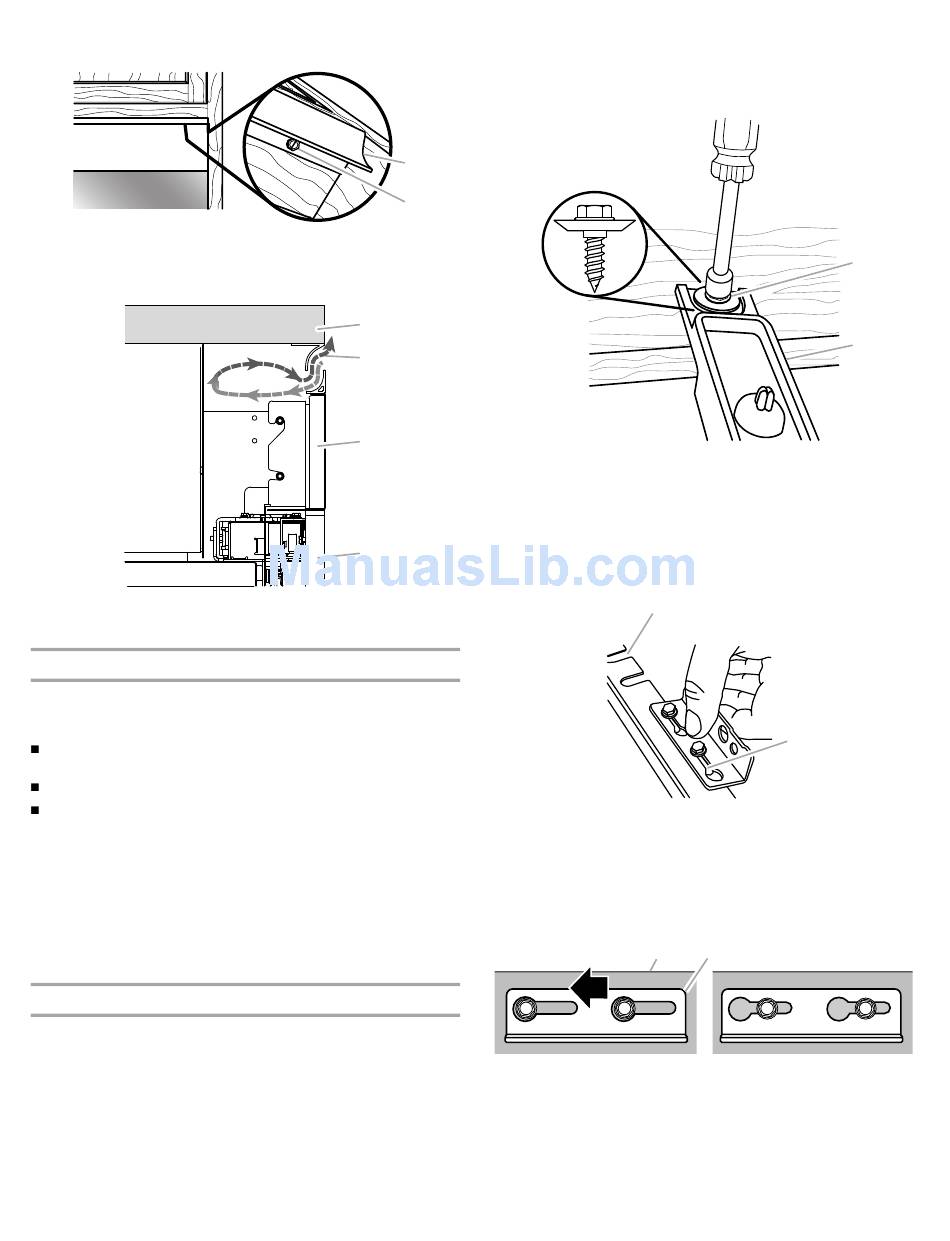

2. Using the slotted hex-head screws (provided with refrigerator),
attach the top grille vent to the soffit.
A. Top grille vent
B. Slotted hex-head screw
Side View
A. Soffit
B. Airflow
Predrill Panels (custom wood panels only)
IMPORTANT: The custom panel template shipped with the
refrigerator can be used for either a ³⁄₈" (0.95 cm) or a
¹⁄₈" (0.32 cm) reveal installation.
The drilling templates are used only for custom wood
overlay panels.
The drilling templates are double-sided.
The drilling holes are precut into the template.
1. On the template, locate the diagram of your refrigerator.
Then, follow the letters and colored arrows to correctly
place the drilling template on the back side panels.
NOTE: Check the direction of the arrows to determine which
holes to mark when the template is aligned at the top of the
panel and which holes to mark when the template is aligned
at the bottom of the panel.
2. Predrill pilot holes into the wood rails bordering the doors
and top grille panels.
Prepare Panels (custom wood panels only)
Door Panels
1. Place panels on a firm, covered, flat surface with the front
facing down.
20
A
B
A
B
C
D
C. Grille panel
D. Door panel
2. Locate the 2 predrilled holes in the handle side edge of the
door panel.
3. Using the installation block as a guide for depth, attach a
shoulder washer with a hex head pointed screw (both provided
with refrigerator) into the predrilled door panel (2 per door).
A. Shoulder washer and
hex head pointed screw
B. Installation block
4. For the mounting bracket, insert the hex-head pointed screws
(provided with refrigerator) into the wood at the top of the door
panels where they were predrilled.
NOTE: It is critical to use the ⁵⁄₈" screw, the longest length
provided, to attach the bracket to the top of the door panel.
A
A. U-shaped hole
B. Slot
5. Attach a mounting bracket to the top edge of each door panel
by placing the large end of the keyhole slot over the screws and
sliding the bracket so that the screws are centered in the slots.
NOTE: Start with the screws in the center of the slots as
shown, then move the door panel, as necessary, to align.
A
A. Door panel
B. Mounting bracket
Top Grille Panel
1. Using the slotted hex-head screws (provided with refrigerator),
attach a mounting bracket to each side of the top grille panel.
IMPORTANT: See the "Parts Provided" section to select the
brackets designated for your installation.
A
B
B
B
