Option 2—False Front (cabinet face only)

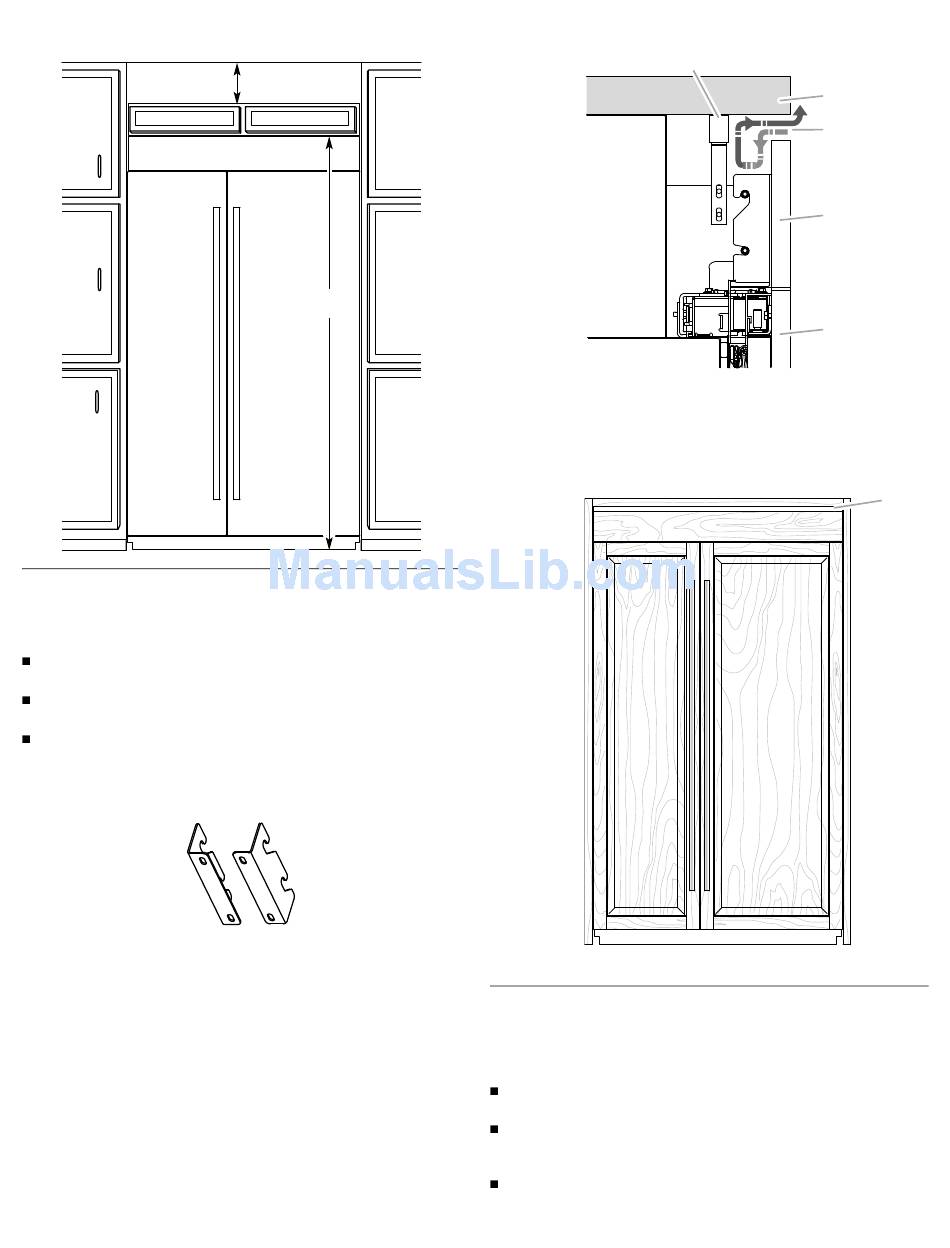

Standard Integrated Grille
Installation Requirements
IMPORTANT:
A Standard Integrated Grille installation can be achieved with
either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.
Use the standard grille bracket (provided with refrigerator) to
attach the standard grille.
The grille panel height, shown in the "Standard Integrated Grille
Installation—Side View" graphic, allows for an air gap critical to
refrigerator performance.
Standard Grille Bracket
12
6" (15.24 cm)
min.
84"
(213.4 cm)
Standard Integrated Grille Installation—Side View
A. Top grille filler
B. Soffit
C. Airflow
Standard Integrated Grille Installation—Full Product View

Panel Kit Installation Requirements

See the "Models" section to see the panel kit options available for
your model.
IMPORTANT:
A panel kit installation can be achieved with either a
24" (60.9 cm) or 25" (63.5 cm) deep opening.
A standard grille is used to achieve a panel kit installation.
Use the standard grille bracket (provided with refrigerator)
to attach the standard grille.
The grille panel height, shown in the "Panel Kit Installation—
Side View" graphic, allows for an air gap critical to refrigerator
performance.
A
B
C
D
E
D. Grille panel
E. Door panel
C. Airflow
C
