TOOLS AND PARTS

IMPORTANT :
Installer: Leave Installation Instructions with the
homeowner.
Homeowner: Keep Installation Instructions for future
reference. Save these Installation Instructions for the
local electrical inspector's use.
TOOLS NEEDED:
Gather the required tools and parts before starting
installation. Read and follow the instructions provided
with any tools listed here.
Cordless drill
Drill bits
Adjustable wrenches (2)
Phillips screwdriver
Small level
3/32" hex key (panel kits only)
11/32" nut driver
3/8" and 1/2" open-end wrenches
5/32" and 3/16" hex key
1/4" and 5/16" socket drivers
Tape measure
Utility knife
Tape (painters)
Appliance dolly
PARTS NEEDED:
#8 x 3" (7.6 cm) wood screws (longer screws may be
needed) (6)
2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood boards (2)
Custom wood overlay panels—consult a qualified
cabinetmaker or carpenter to make the custom wood
panels. See "Custom Wood Overlay Panels" for more
information.
"Panel Kit Installation Requirements" for panel kit
information.
Flexible, codes approved water supply tubing, a
ferrule, a union and a 1/4" (6.35 mm) compression
fitting.

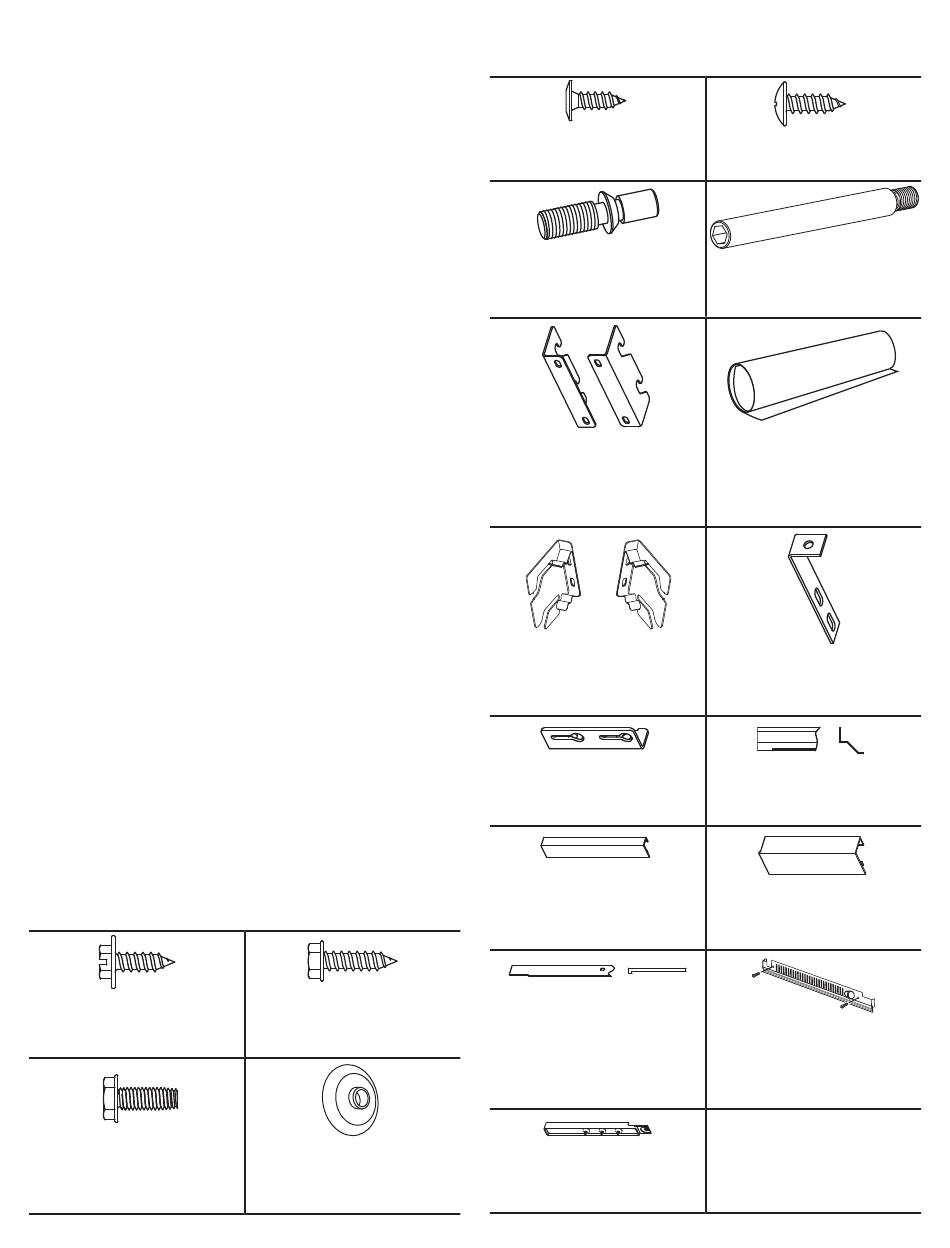

PARTS PROVIDED:
Slotted hex-head screw
W10141645 (21)
Hex-head blunt screw
W10142233 (4)
6

INSTALLATION REQUIREMENTS

OR
Hex-head pointed screw
W10141189 (8)
Shoulder washer (use with
hex-head pointed screw)
W10471946 (4)
Phillips-head flat screw
8281252 (28)
Door Adjustment Pin
(preinstalled)
W10234194 (2)
Standard Integrated
Grille Bracket
W10182743 - Left (1)
W10182741 - Right (1)
Fully Integrated
Grille Bracket
W10260890 - Left (1)
W10260891 - Right (1)
Panel top bracket
W10667450 (2)
RC Hinge Cover Trim
W10775725 - 42" SxS
W10775726 - 48" SxS
Handle Side Door Trim
W10749614 - SxS Freezer
W10755284 - SxS
Refrigerator
Installation block
W10234156
Round-head screw
1163283 (24)
Door Stop Pin
W10234202 (2)
Panel templates
W10488101 - 42" SxS
W10488113 - 48" SxS
W10744761 - Grille
Filler Board "L" Bracket
W10234199 (2)
Top Grille Lower Trim
W10606812 - 42" SxS (1)
W10740171 - 48" SxS (1)
FC Hinge Cover Trim
W10775727 - 42" SxS
W10775728 - 48" SxS
Grille - Bottom / Skirt - Grille
W10182718 / W10188551 -
48" SxS
W10182717 / W10188549 -
42" SxS
