PANEL DESCRIPTION

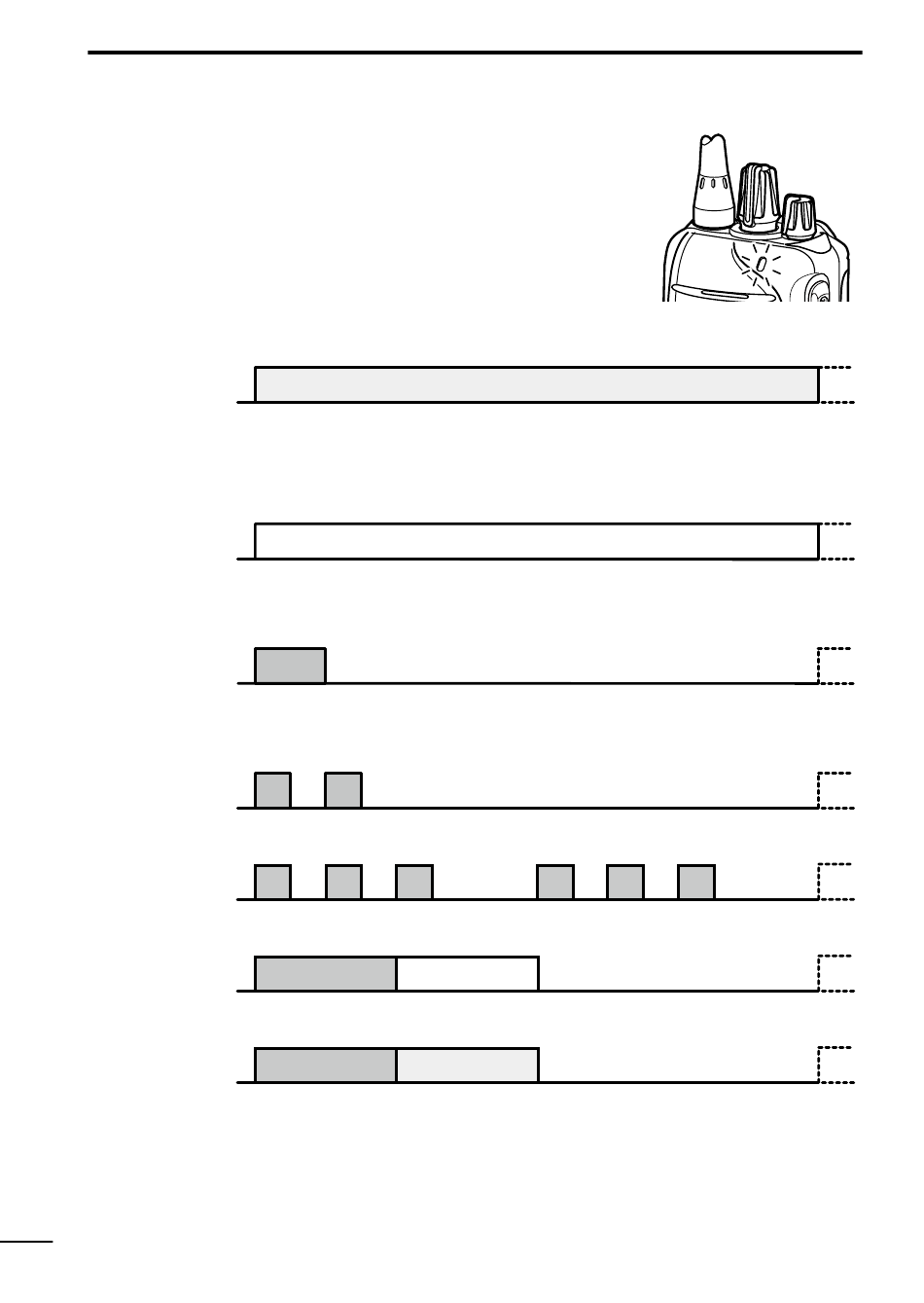

■ LED indicator

The LED indicator indicates the status of various
parameters of the transceiver as follows;
(Reference: R=Red, G=Green, O=Orange)
• TX: Lights Red while transmitting a signal.
• RX busy: In the Analog CH, lights Green while in the noise squelch
• Call LED: Turns ON while receiving a matched 2/5-tone, or receiv-
• Call LED: Blinks while receiving a matched 2/5-tone, or receiving
• Call LED: Blinks while waiting an acknowledgement.
• Success: Blinks slowly when your call was successful.
• Call error: Blinks slowly when your call failed, or it was refused.
* Lights (or blinks) orange when the optional battery case is attached.
7
opens. In the Digital CH or Mixed CH, lights Green while
detecting a frame synchronization.
ing Status or SDM call.
O
Status or SDM call.
O O
O O
O
O
R *
G
O O
G
R
O O
