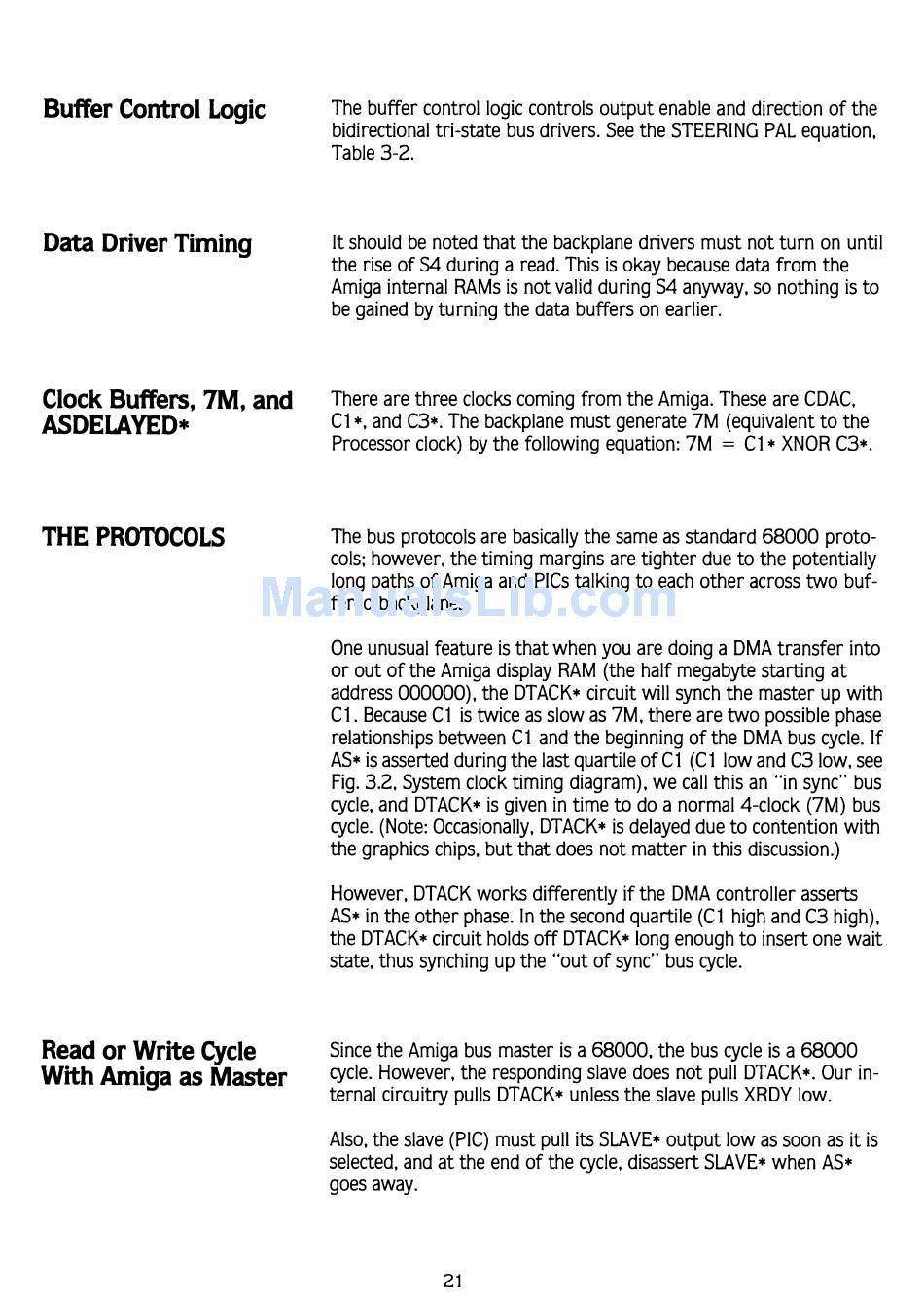

Buffer Control Logic
The buffer control logic controls output enable and direction of the
bidirectional tri-state bus drivers. See the STEERING PAL equation.
Table 3-2.
Data Driver Timing
It should be noted that the backplane drivers must not turn on until
the rise of S4 during a read. This is okay because data from the
Amiga internal RAMS is not valid during S4 anyway, so nothing is t o
be gained by turning the data buffers on earlier.
Clock Buffers, 7M, and
There are three clocks coming from the Amiga. These are CDAC,
ASDELAYED*
C1
*, and C3*. The backplane must generate 7M (equivalent t o the
Processor clock) by the following equation: 7 M
=
C1
*
XNOR C3*.
THE PRUI"I'COLS
The bus protocols are basically the same as standard 68000 proto-
cols; however, the timing margins are tighter due t o the potentially
long paths of Amiga and PlCs talking to each other across two buf-
fered backplanes.
One unusual feature is that when you are doing a DMA transfer into
or out of the Amiga display RAM (the half megabyte starting a t
address 000000), the DTACK* circuit will synch the master up with
C l . Because C1 is twice as slow as 7M, there are two possible phase
relationships between C1 and the beginning of the DMA bus cycle. If
AS* is asserted during the last quartile of C1 (C1 low and C3 low, see
Fig. 3.2, System clock timing diagram), we call this an "in sync" bus
cycle, and DTACK* is given in time t o do a normal 4-clock (7M) bus
cycle. (Note: Occasionally, DTACK* is delayed due t o contention with
the graphics chips, but that does not matter in this discussion.)
However, DTACK works differently if the DMA controller asserts
AS* in the other phase. In the second quartile (C1 high and C3 high),
the DTACK* circuit holds off DTACK* long enough t o insert one wait
state, thus synching up the "out of sync" bus cycle.
Read or Write Cycle
Since the Amiga bus master
is
a 68000, the bus cycle is a 68000
With
Amiga as Master
cycle. However, the responding slave does not pull DTACK*. Our in-
ternal circuitry pulls DTACK* unless the slave pulls XRDY low.
Also, the slave (PIC) must pull its SLAVE* output low as soon as it is
selected, and at the end of the cycle, disassert SLAVE* when AS*
goes away.
