1.3.

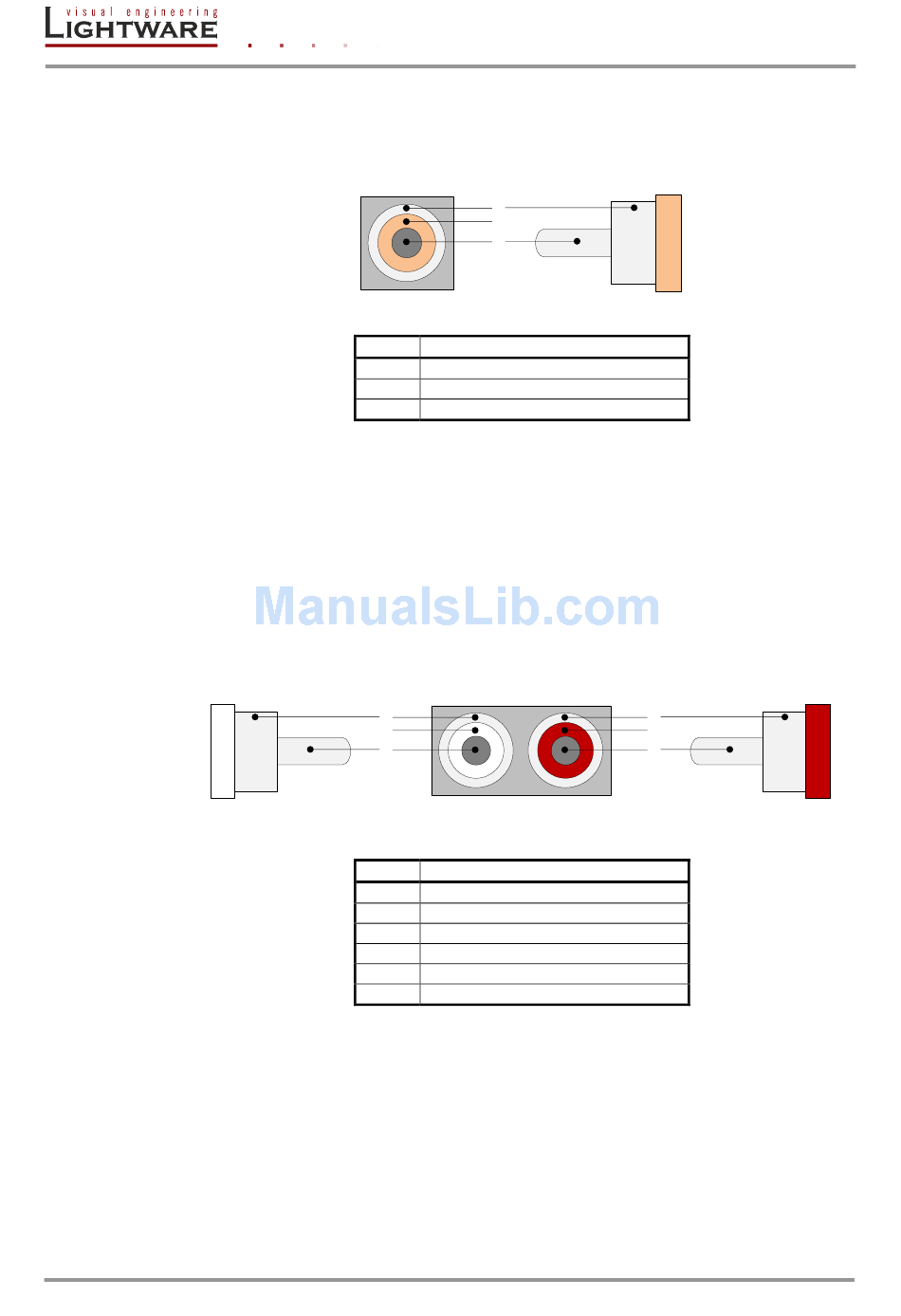

Digital audio input connector
UMX-TP-TX100R has standard RCA receptacles for digital coaxial audio input.
Info:
Plugs and sockets on consumer equipment are conventionally color-coded by
CEA/CEDIA-863-B (ANSI) to aid correct connections. According to the standard
Lightware uses orange colored RCA connectors for S/PDIF signals.
1.4.
Analog stereo audio input connectors
UMX-TP-TX100R has standard RCA receptacle for analog stereo audio input. Input
works with standard line-in voltage levels.
RCA plug (left channel)
Info:
Plugs and sockets on consumer equipment are conventionally color-coded by
CEA/CEDIA-863-B (ANSI) to aid correct connections. According to the standard
Lightware uses red colored RCA connectors for right channel of analog stereo audio
signals and white colored RCA connectors for left channel of analog stereo audio signals.
Page 8 / 43
000
0
RCA receptacle
Nr.
Name
1
S/PDIF input or output
2
Plastic insulator
3
GND
Table 1-3. RCA connector pin assignments for digital audio
6
5
4
RCA receptacles
Nr.
Name
1
Right channel input or output
2
Plastic insulator
3
GND
4
Left channel input or output
5
Plastic insulator
6
GND
Table 1-4. RCA connector pin assignments for analog audio
3
2
1
RCA plug
000
000
0
0
RCA plug (right channel)
Section 1. Electrical connections
