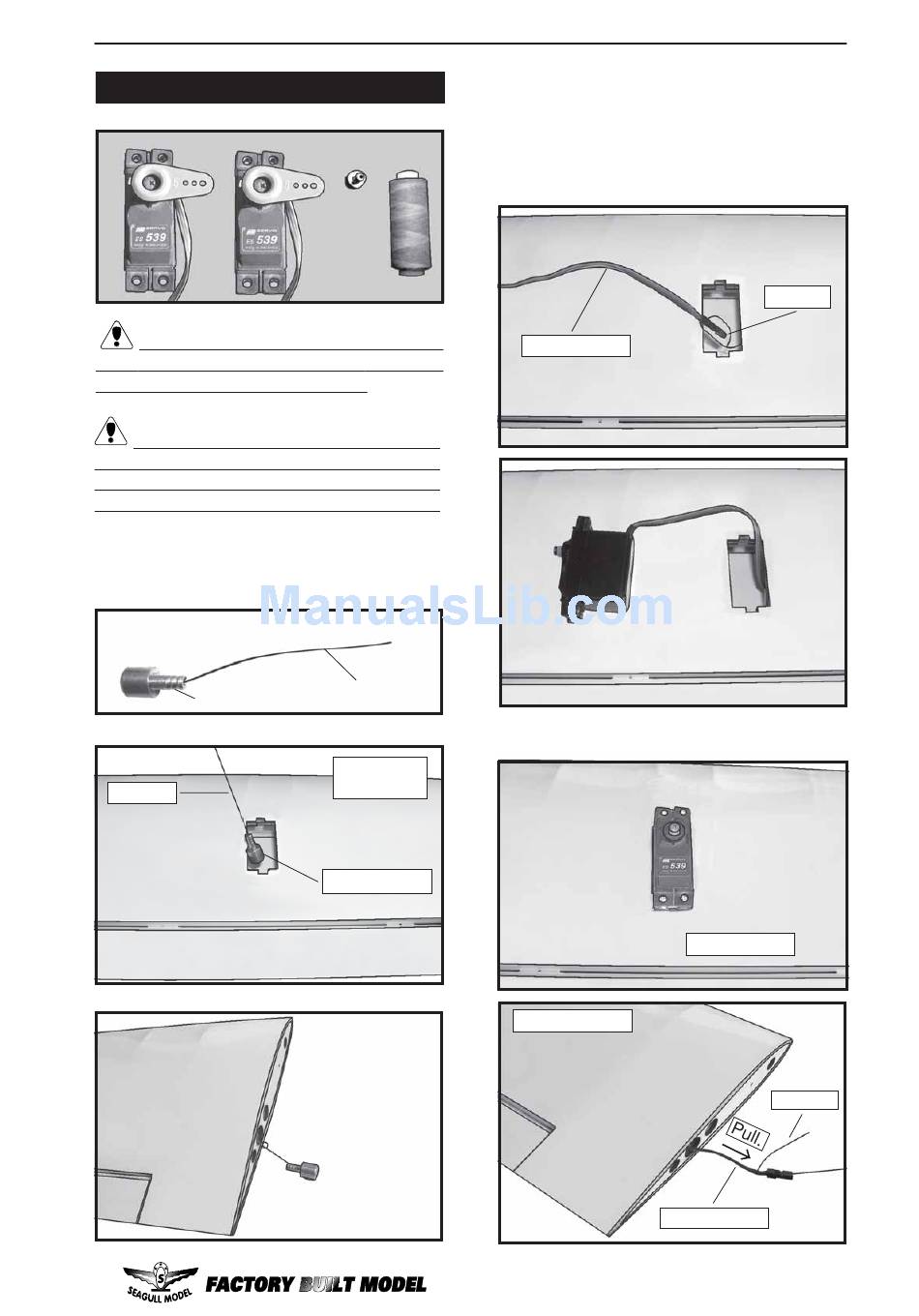

INSTALLING THE AILERON SERVOS.

Servos.
Install the rubber grommets and brass
collets onto the aileron servo. Test fit the
servo into the aileron servo mount.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
Using a small weight (
) and thread, feed the string through
works well
the wing as indicated.
Small weight.
Thread.
www.seagullmodels.com
Small weight.
Thread.
Weighted fuel pick-up
String.
Lower wing
bottom.
Small weight.
Attach the string to the servo lead and
carefully thread it though the wing. Once you
have thread the lead throught the wing, remove
the string so it can use for the other servo
lead. Tape the servo lead to the wing to prevent
it from falling back into the wing.
Electric wire.
Secure the servos with the screws pro-
vided with your radio system.
Wing bottom.
Electric wire.
String.
wing bottom.
Thread.
