SPACE WALKER II

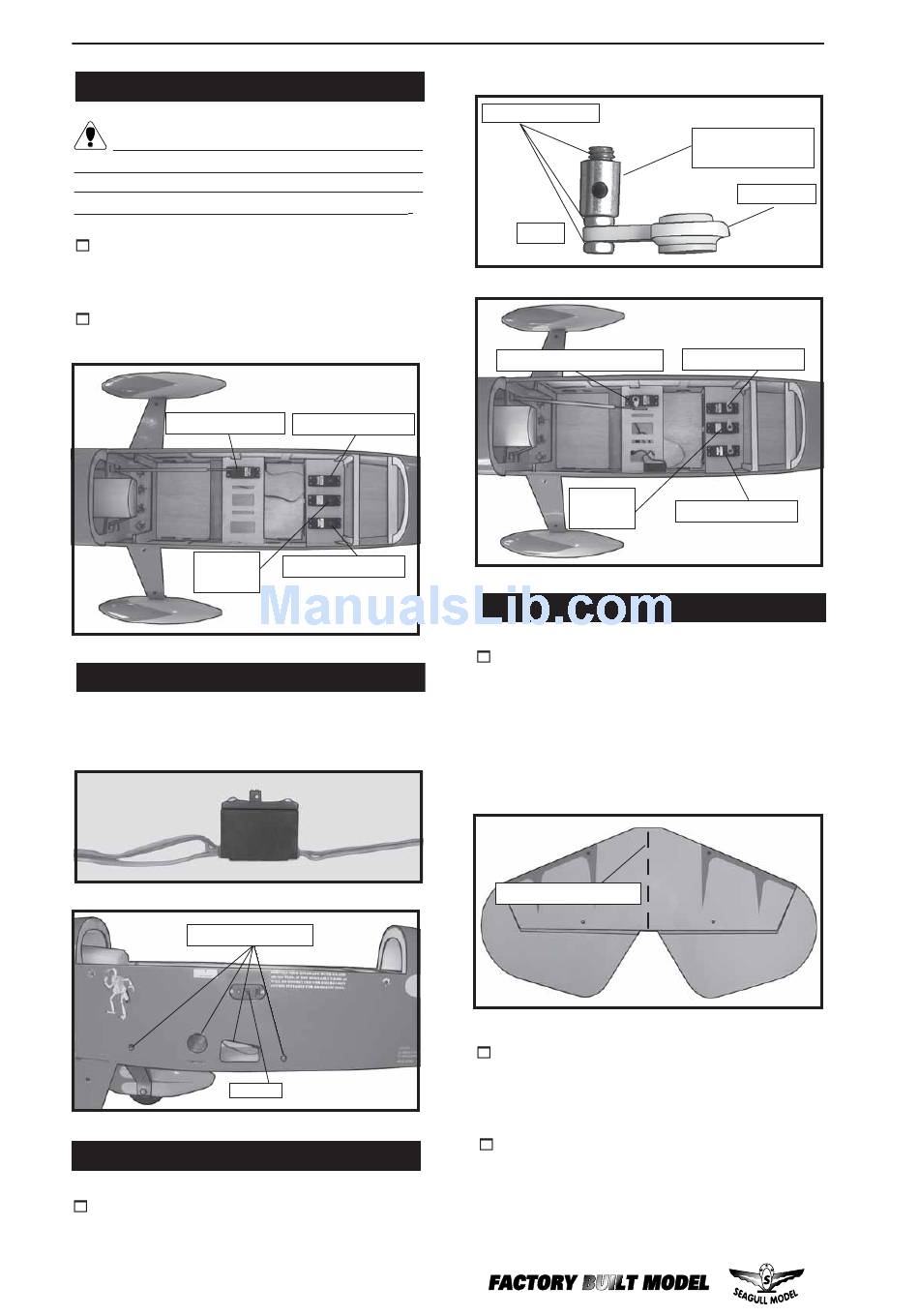

INSTALLING THE FUSELAGE SERVO.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Throttle servo.
Rudder
servo.

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side of fuselage.
Remove covering
Switch
THROTTLE SERVO ARM INSTALLATION.
) Install adjustable servo connector in
1
the servo arm .
10
Elevator servo.
Elevator servo.
.
.
Instruction Manual
Loctite secure.
1 pcs.
Throttle servor arm .
Rudder
servo.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
Draw center line.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal sta-
bilizer ( both side of fuselage).
3) Slide the stabilizer into place in the pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.
Adjustable Servo
connector.
Servo arm.
Elevator servo.
Elevator servo.
