Repeat the procedure for the other wing.

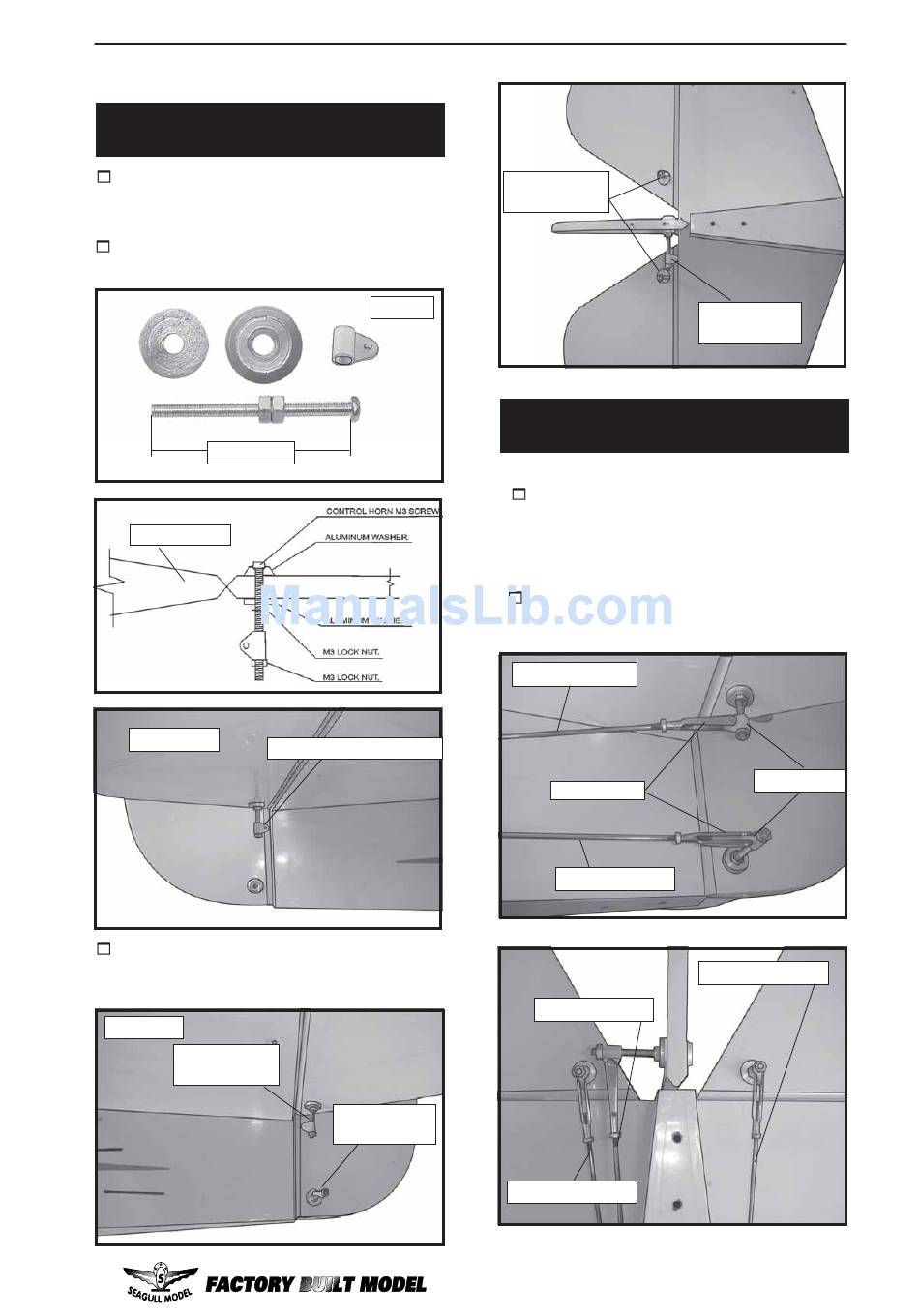

ELEVATOR - RUDDER CONTROL HORN
INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on
the both side of elevator.
3x35mm.
Horizontal fin.
Right side.
3) Install the rudder control horn using the
same method as with the elevator control
horns.
Left side.
Elevator
control horn.
www.seagullmodels.com
2 sets.
Elevator.
Elevator control horn.
Rudder
control horn.
Elevator
control horn.
ELEVATOR - RUDDER PUSHROD
INSTALLATION.
1) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
2) Elevator and rudder pushrods assembly
follow pictures below.
Elevator pushrod.
Metal clevis.
Rudder pushrod.
Rudder pushrod.
Elevator pushrod.
Rudder
control horn.
Control horn.
Elevator pushrod.
