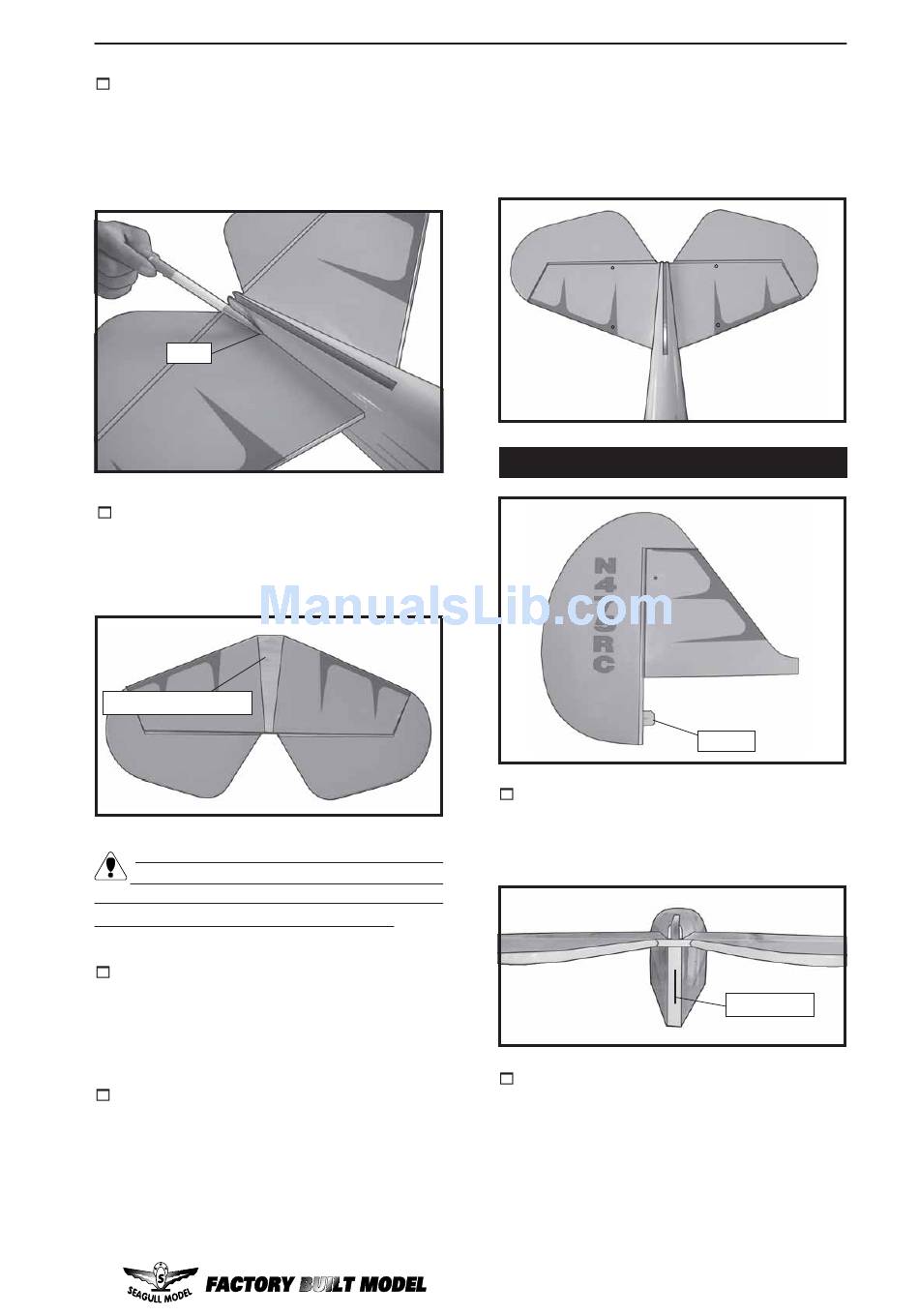

Vertical Stabilizer Installation - Seagull Models SPACE WALKER II Assembly Manual

4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
Pen.
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
Remove covering.
When cutting through the covering to re-
move it, cut with only enough pressure
to only cut through the covering itself. Cutting
into the balsa structure may weaken it.
6) Using a modeling knife, carefully re-
move the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Re-
move the covering from both the top and the
bottom of the platform sides.
7) When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
top and bottom of the stabilizer mounting area
and to the stabilizer mounting platform sides
in the fuselage. Put the stabilizer in place and
realign.
www.seagullmodels.com
Double check all of your measurements once
more before the epoxy cures. Hold the stabi-
lizer in place with T-pins or masking tape and
remove any excess epoxy using a paper towel
and rubbing alcohol.

VERTICAL STABILIZER INSTALLATION.

covering from over the precut hinge slot cut
into the lower rear portion of the fuselage. This
slot accepts the lower rudder hinge.
in the top of the fuselage. The rear edge of
the stabilizer should be flush with the rear edge
of the fuselage and the lower rudder hinge
should engage the precut hinge slot in the
lower fuselage. The bottom edge of the stabi-
lizer should also be firmly pushed against the
top of the horizontal stabilizer.
1) Using a modeling knife, remove the
2) Slide the vertical stabilizer into the slot
Hinge.
Hinge slot.
11
