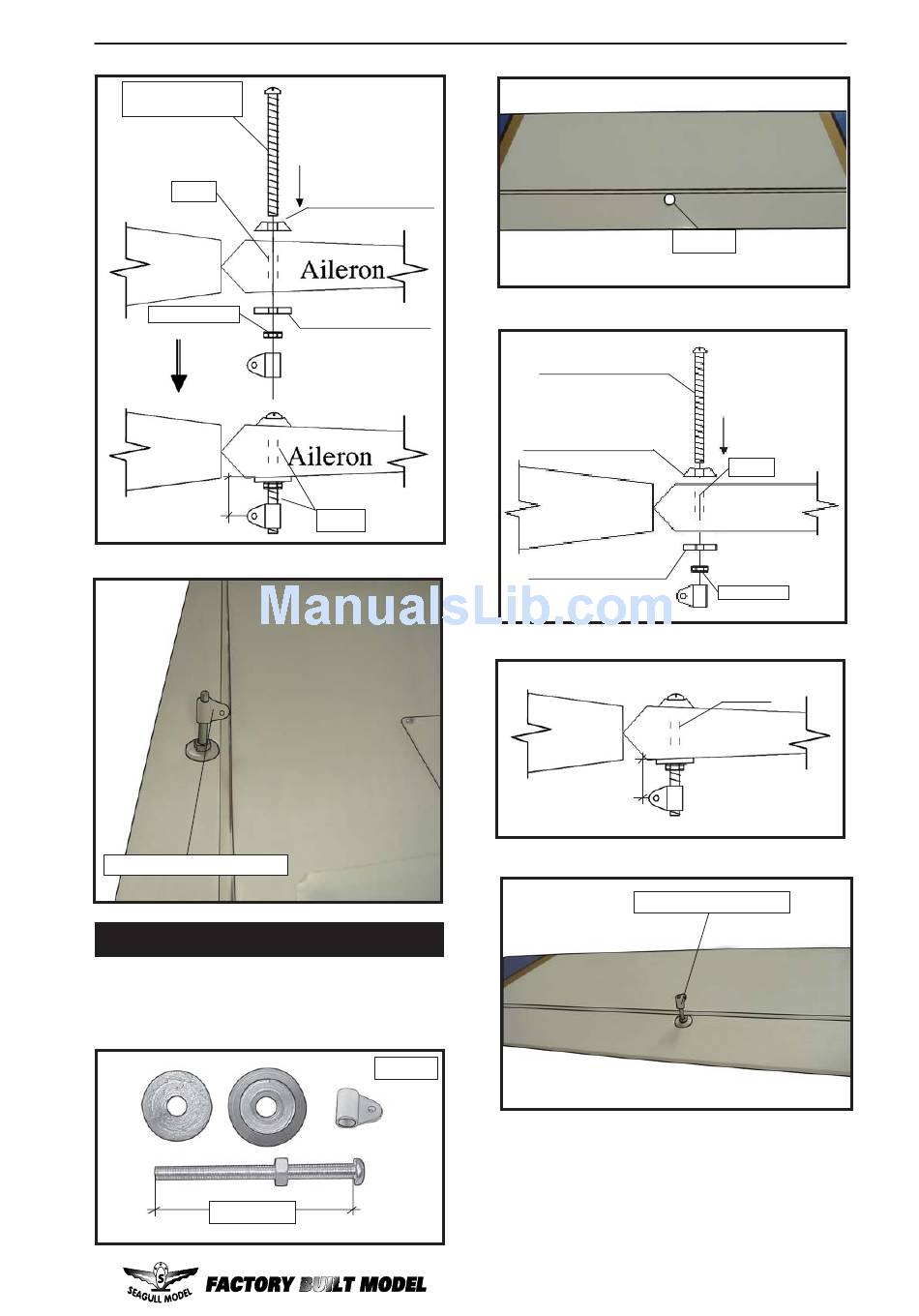

Seagull Models CHEROKEE Instruction Manual page 7

CONTROL HORN
M3 SCREW.
Epoxy.
Wing
.
M3 LOCK NUT
Wing
.
18mm
Aileron control horn .
INSTALL ELEVATOR CONTROL HORN.
Install the elevator control horn using the
same method as same as the aileron control
horns.
3x30mm.
www.seagullmodels.com
.
ALUMINUM WASHER
.
ALUMINUM WASHER
.
Epoxy
2 sets.
3mm.
CONTROL HORN M3
Aluminum Washer.
Horizontal
Stabilizer.
Aluminum Washer.
Horizontal
Stabilizer.
18mm
.
Elevator control horn.
.
Epoxy
Elevator.
.
M3 LOCK NUT
Epoxy.
Elevator.
7
