4115T Thin Line Industrial Flat Panel PC
Installation
Mounting Options
The 4115T can be mounted to a panel, to the wall, or to an arm. The following
sections describe each mounting option for the 4115T.
Panel Mounting
The 4115T is designed for panel mounting. Before mounting the 4115T to the panel,
check the cut out dimensions as shown in Figure 2-2. Then, mount it to the panel
using ten supporters, as shown in the Figure 2-3 (see next page).

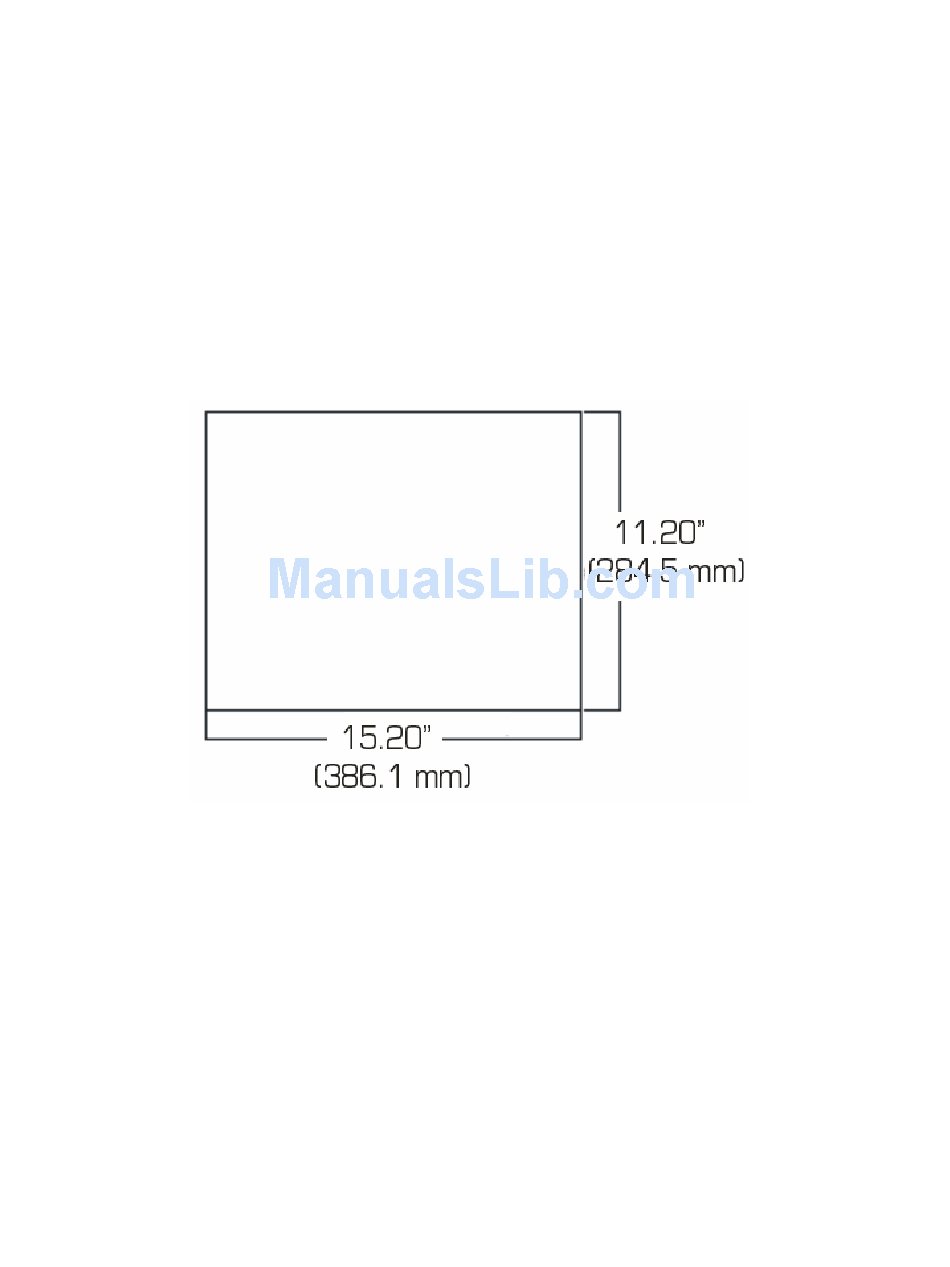

Figure 2-2. Panel Cutout Dimensions
9
Chapter 2 –
143926(A)
