4115T Thin Line Industrial Flat Panel PC
Installation
Arm Mounting
The 4115T also accommodates 75/100 mm interface pads for arm mounting. Figure
2–6 gives the dimensions for arm mounting.
All dimensions in inches (mm)

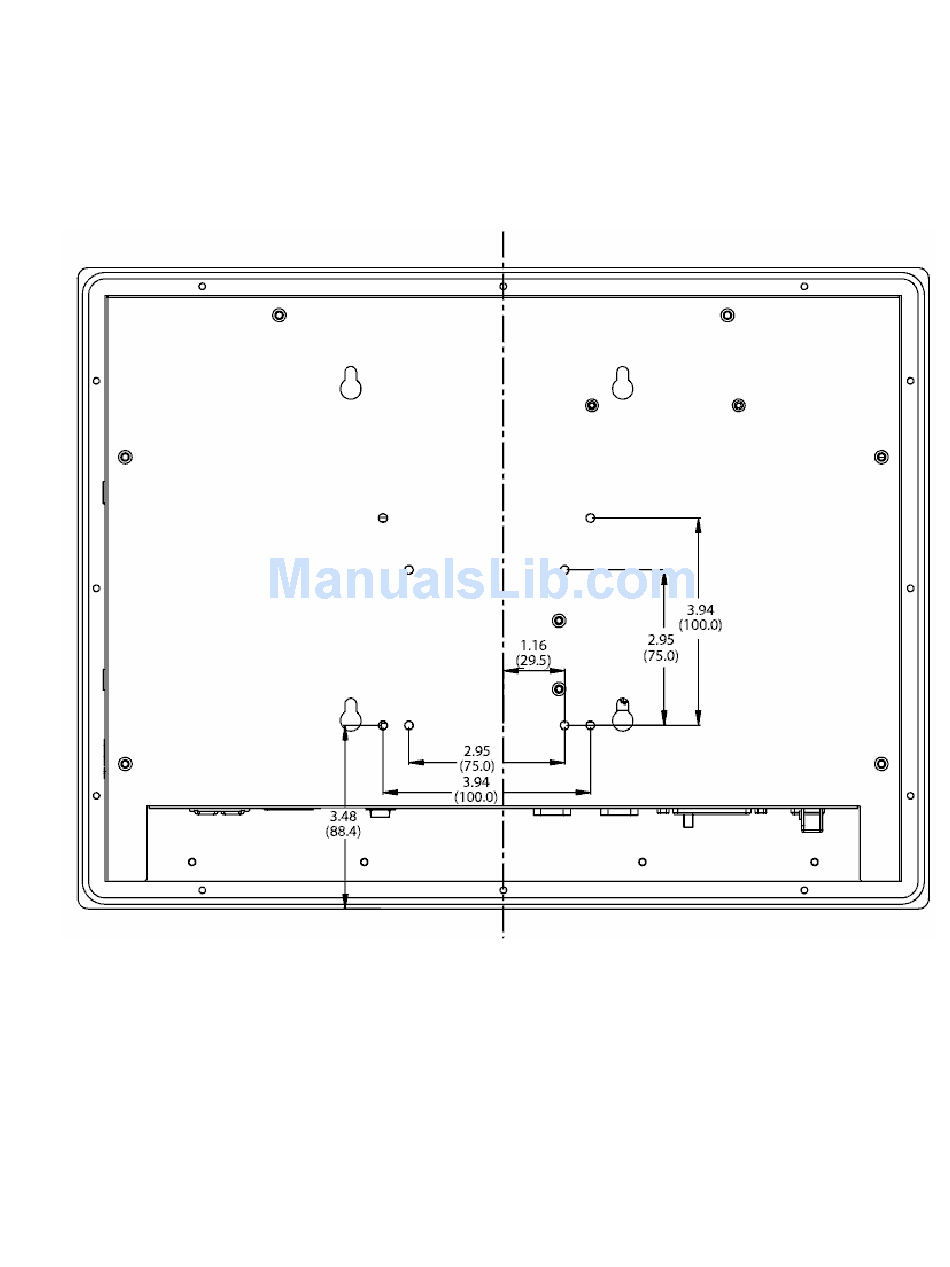

Figure 2-6. Arm Mounting Dimensions
