4115T Light Duty Industrial PC
CN23B (Green): Extended Mouse 6-pin Mini Din Connector
External Switches and Indicators
There are several external switches and indicators for monitoring and controlling
your CPU board. All the functions are in the CN8 connector.
PIN Description
1 SPEAKER
2 ACPI LED
3 N/C
4 +5V
5 RESET SW
6 GND
7 IDE LED -
8 IDE LED+
9 ATX POWER BUTTON
10 GND
USB Port Connector
Chapter 3 – POS-478 CPU Control Board and BIOS Setup

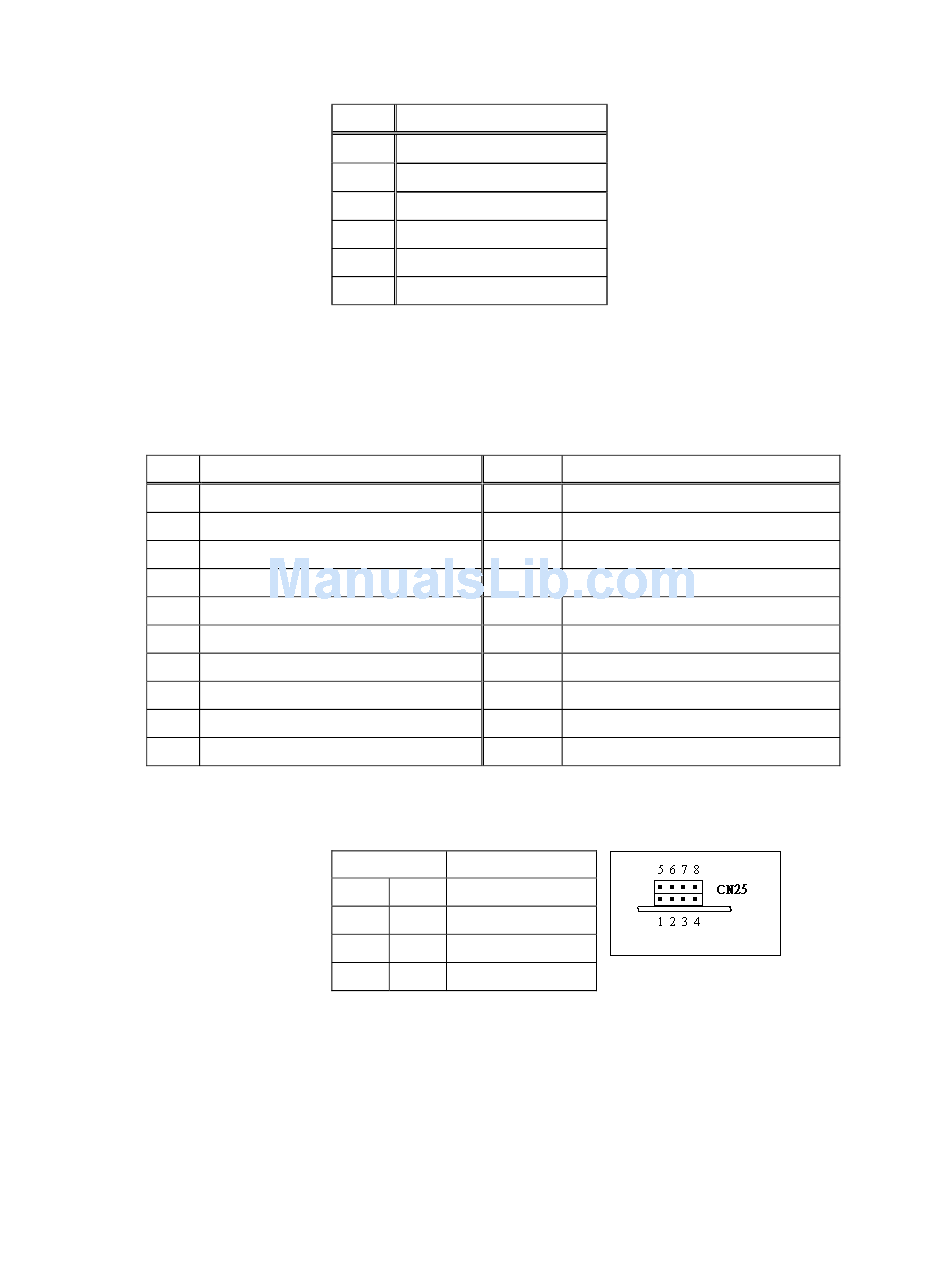

PIN Description
1 MS DATA
2 NC
3 GND
4 VCC
5 MS CLOCK
6 NC
CN8: Multi Panel
PIN
11
12
13
14
15
16
17
18
19
20
N25A: 2 External USB Connectors
PIN Description
1 5 VCC
2 6 USBD0-
3 7 USBD0+
4 8 GND
25
Description
POWER-VCC
N/C
GND
KEYLOCK
GND
GND
N/C
ATX POWER CONTROL
ATX 5VSB
ATX 5VSB
