4115T Light Duty Industrial PC
•
AC'97 Audio CODEC
•
Compact Flash operates with a passive adapter (True IDE Mode) in a Type I/II
Socket
•
Wake-Up Function: Supports Wake-On-Lan and Wake-On-Ring.
•
Mouse & Keyboard PS/2 Connectors

POS-478E CPU Board Layout

Note: JP17 is not populated on the POS-478 motherboard.
Chapter 3 – POS-478 CPU Control Board and BIOS Setup

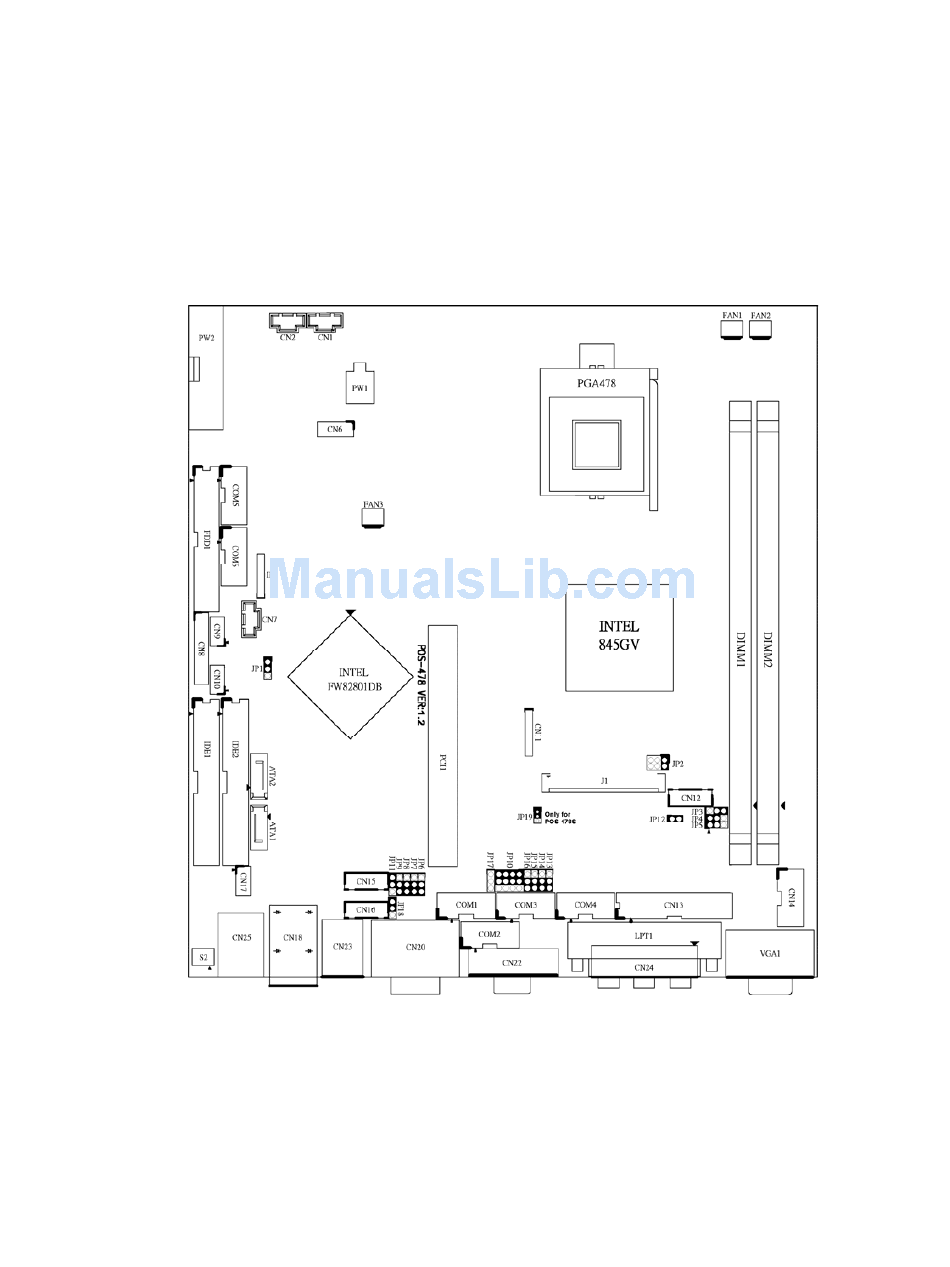

Figure 3-1. POS-478E Board Layout
15 143926(A)
