Peripheral Setup

The Peripheral Setup allows you to configure you system to most effectively save
energy while operating in a manner consistent with your own style of computer use.
Item
OnBoard LAN
OnBoard AC'97 Audio
OnBoard FDC.
OnBoard Serial Port 1 /Port 2 /Port
C /Port D
Serial Port2 Mode
OnBoard Parallel Port1 /Port2
Chapter 3 – POS-478 CPU Control Board and BIOS Setup
Table 3-8. PCI/Plug and Play Setup Options
Description
device installed in the PCI expansion slot. The
settings are Auto, (IRQ) 3, 4, 5, 7, 9, 10, and 11,
in priority order.

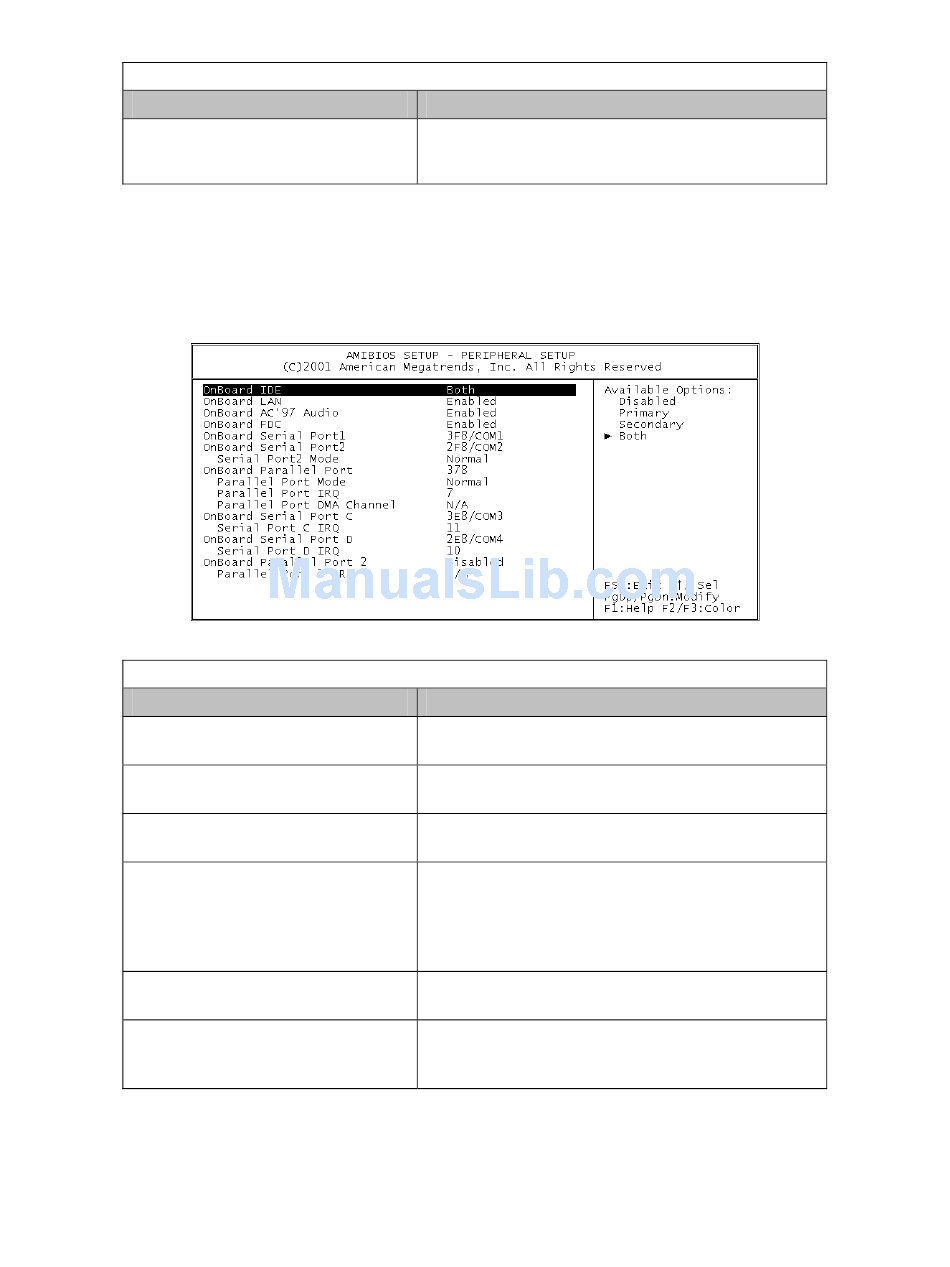

Figure 3-8. Peripheral Setup Options
Table 3-9. Peripheral Setup Options
Description
This option is setting to enable or disable
Onboard LAN Function.
This option is setting to enable or disable
Onboard AC'97 Audio Function
This option is setting to enable or disable
Onboard FDC Function.
This option specifies the base I/O port address of
serial port 1. The settings are Auto (AMIBIOS
automatically determines the correct base I/O
port address), Disabled, 3F8h, 2F8h, 2E8h, or
3E8h.
This option specifies the IR active pulse or
inverting clock of serial port B.
This option specifies the base I/O port address of
parallel port on the motherboard. The settings
are Disabled, 378h, 278h, or 3BCh.
43 143926(A)
