Power Type Select

PCI / Plug and Play Setup

Item
Clear NVRAM
PCI Latency Timer (PCI Clocks)
Init. Graphics Adapter Priority
Allocate IRQ to PCI VGA
OffBoard PCI IDE Card
OffBoard PCI IDE Primary IRQ
OffBoard PCI IDE Secondary IRQ
PCI Slot1 / Slot2 / Slot3 / Slot4 IRQ
Chapter 3 – POS-478 CPU Control Board and BIOS Setup
Table 3-7. Power Management Setup Options
Description
This feature is switch of Power Type function.
Configuration options: [AT] [ATX]

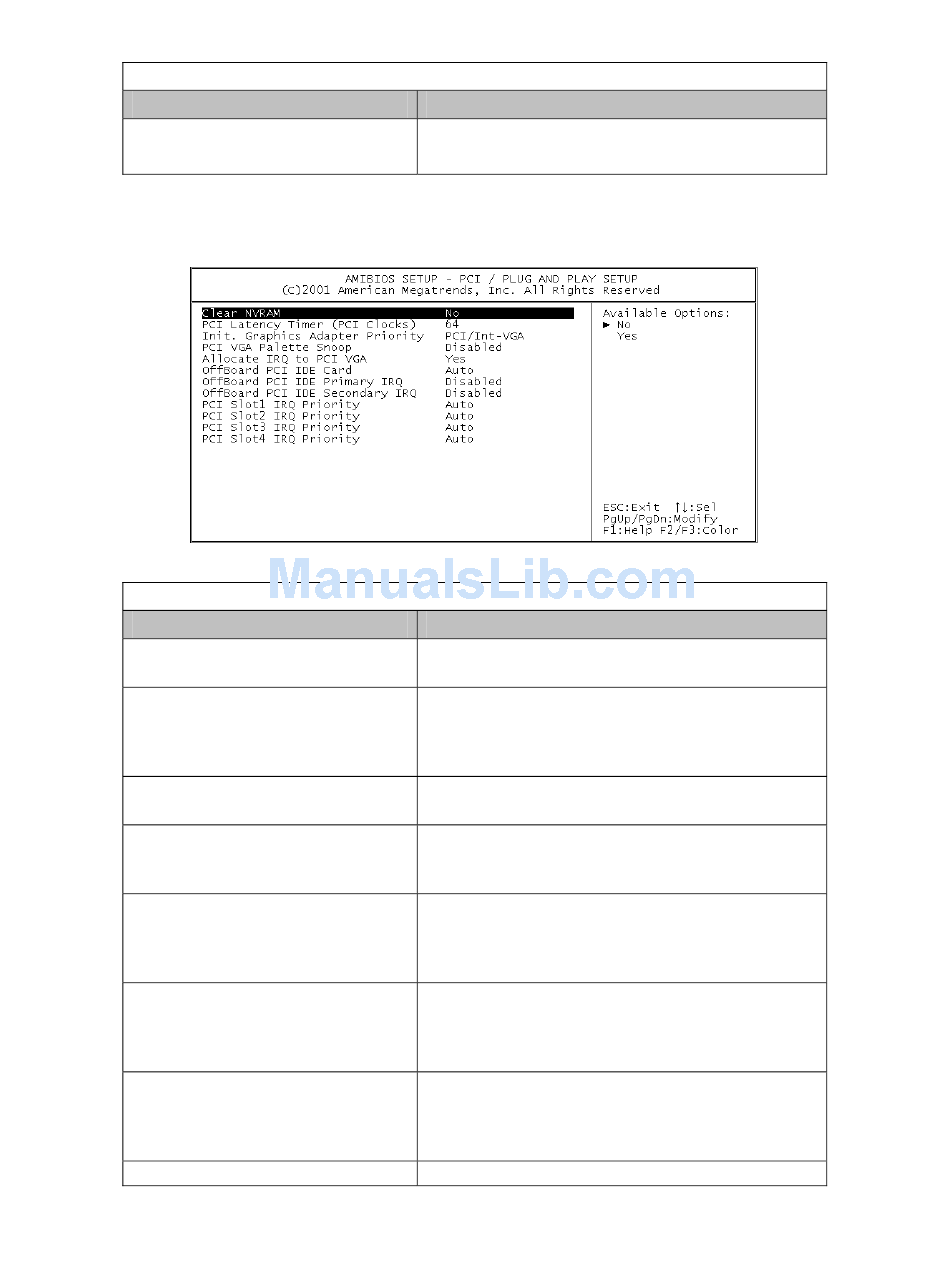

Figure 3-7. PCI/Plug and Play Setup
Table 3-8. PCI/Plug and Play Setup Options
Description
When this option is set to Yes, system can auto
clear NVRAM. The settings are Yes or No.
This option specifies the latency timings (in PCI
clocks) for PCI devices installed in the PCI
expansion slots. The settings are 32, 64, 96,
128, 160, 192, 224, or 248.
This setting is to select primary graphic by PCI or
AGP Adapter.
Set this option to Yes to allocate an IRQ to the
VGA device on the PCI bus. The settings are
Yes or No.
This question is needed for off-board non-
compliant PCI IDE card. If present, BIOS needs
to know which slot it is in and how the IRQ is
used by the card.
This option specifies the PCI interrupt used by the
primary IDE channel on the offboard PCI IDE
controller. The settings are Disabled, Hardwired,
INTA, INTB, INTC, or INTD.
This option specifies the PCI interrupt used by the
secondary IDE channel on the offboard PCI IDE
controller. The settings are Disabled, Hardwired,
INTA, INTB, INTC, or INTD.
The option specifies the IRQ priority for PCI
42 143926(A)
