Installing The Stopper Assembly - Seagull Models SPARROW HAWK 62 CC Assembly Manual

SPARROW HAWK
Pushrod wire.
2) Insert the 4 bolts Through the engine
mount,Spacess and Washers.Insert the bolts
Through the firewall and washell and lock
nits.Tighten use loctite to secure.
3) Attach the Z-Bend in the pushrod wire to
the throttle arm on the carburetor.
10
170 MM.
Instruction Manual

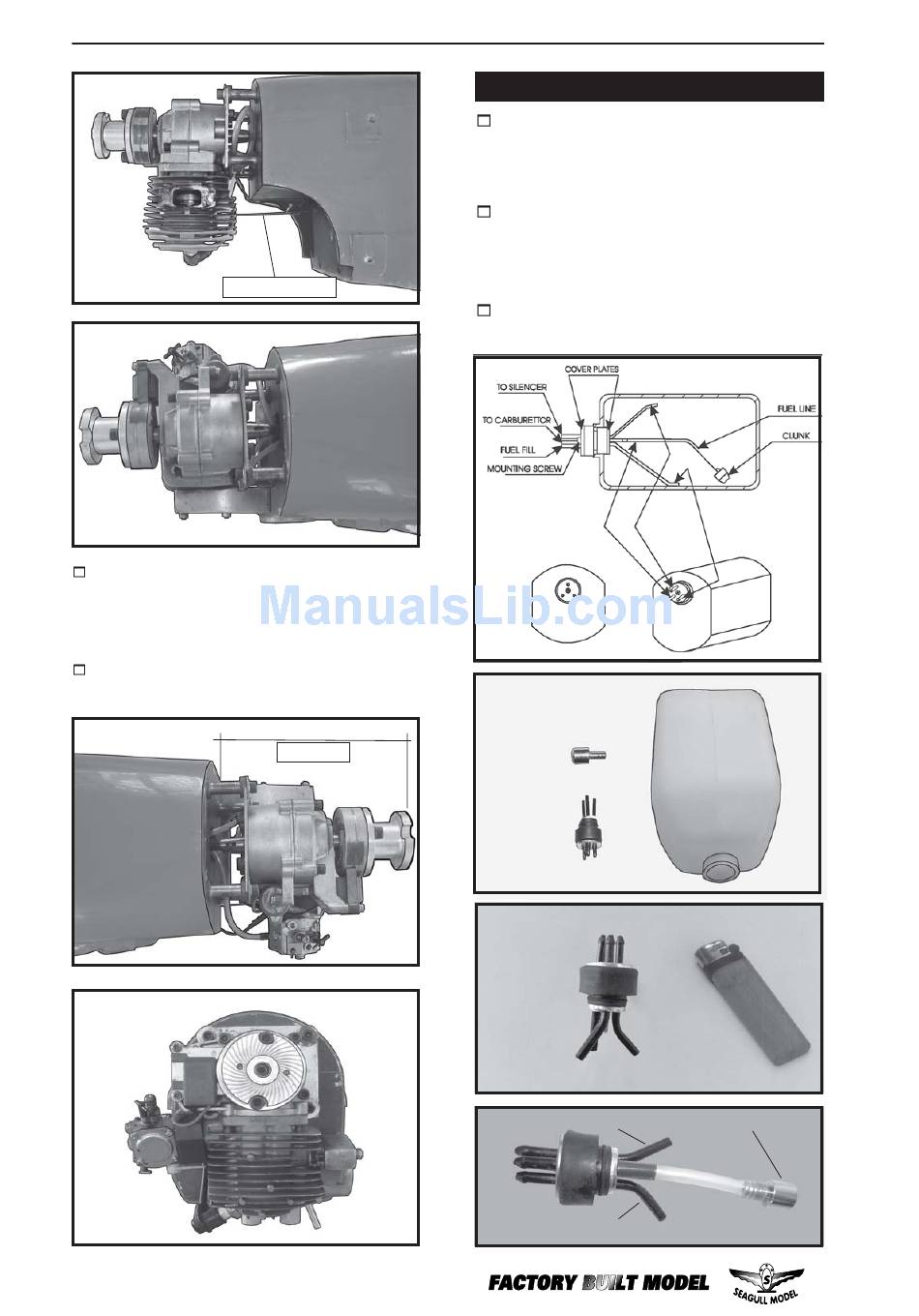

INSTALLING THE STOPPER ASSEMBLY.

1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length
of fuel line. Connect one end of the line to the
weighted fuel pick up and the other end to the
nylon pick up tube.
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
Vent tube.
Fuel fill tube.
Fuel pick up tube.
