SPARROW HAWK

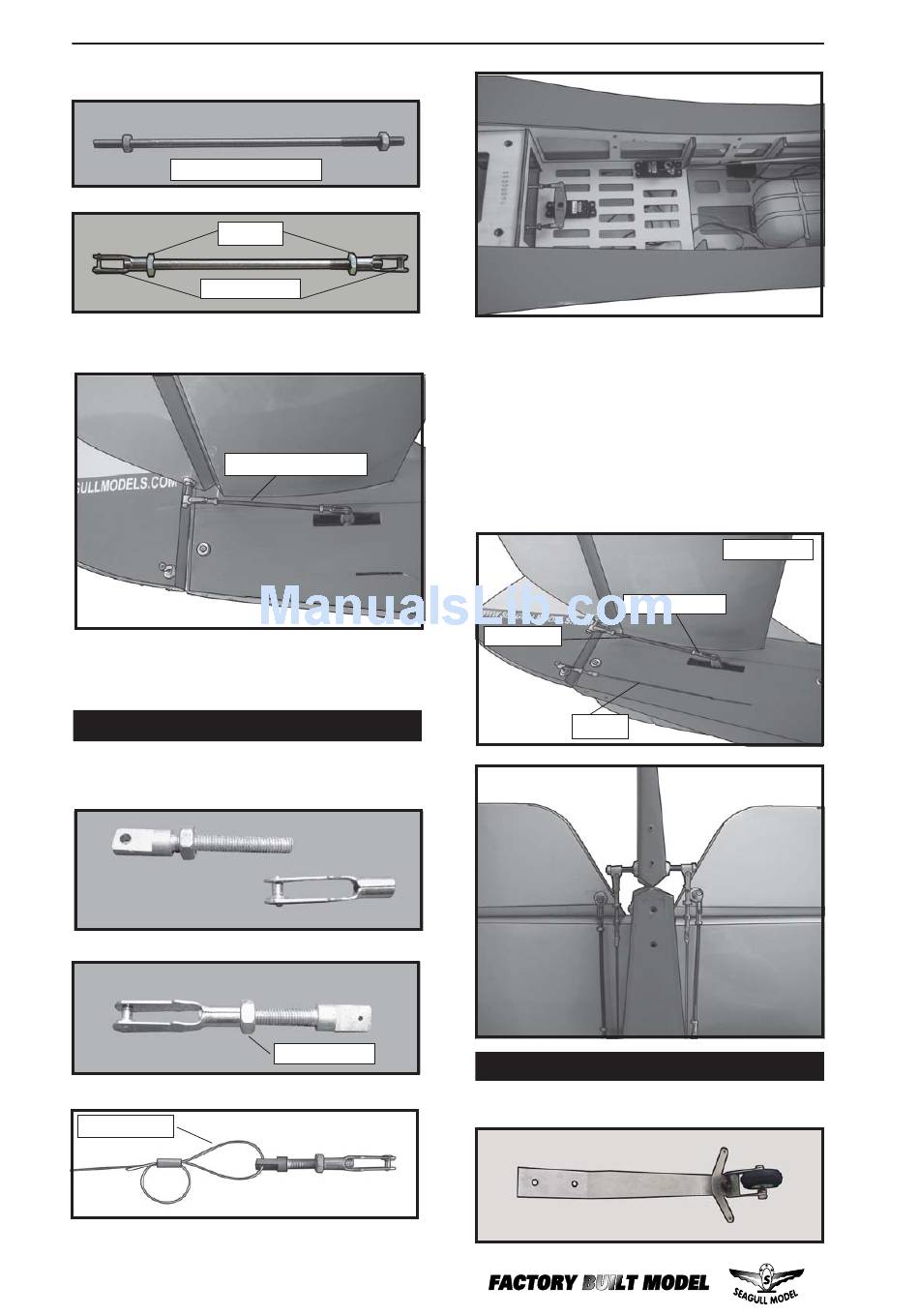

Pushrod L= 114mm.
M lock
3
Metal Levis.
Center the servo using the radio system.
Elevator pushrod.
Repeat the procedure for other elevator.
RUDDER PULL - PULL CABLE SYSTEM.
See pictures below.
Cable wire.
16
M3 lock nut.
Instruction Manual
With the radio on, check the operation of the
rudder. Adjust the cables so when the rudder
servo is centered, the rudder is centered as
well. There will be tension on the cables.
Adjustments can be made at the rudder control
horn and at the servo arm. Once adjustments
are made, secure the servo arm to the rudder
arm servo using the screw that came with the
servo.
Metal clevis.
Pushrod.
Cable.

MOUNTING THE TAIL WHEEL.

See picture below.
Right side.
