Chapter 2 - Blade Installation and Startup
2.7.3.2

Connector Pin-Outs on DIOPU Blade

2.7.3.3

Installing the Direct Inward Dial Blade:

1.
2 - 64
12345678
Install the DIOPU blade into a slot.
●
With normal operation, the status LED will flash fast. If trouble was found during the self
diagnostics routine, the status LED will flash slowly.

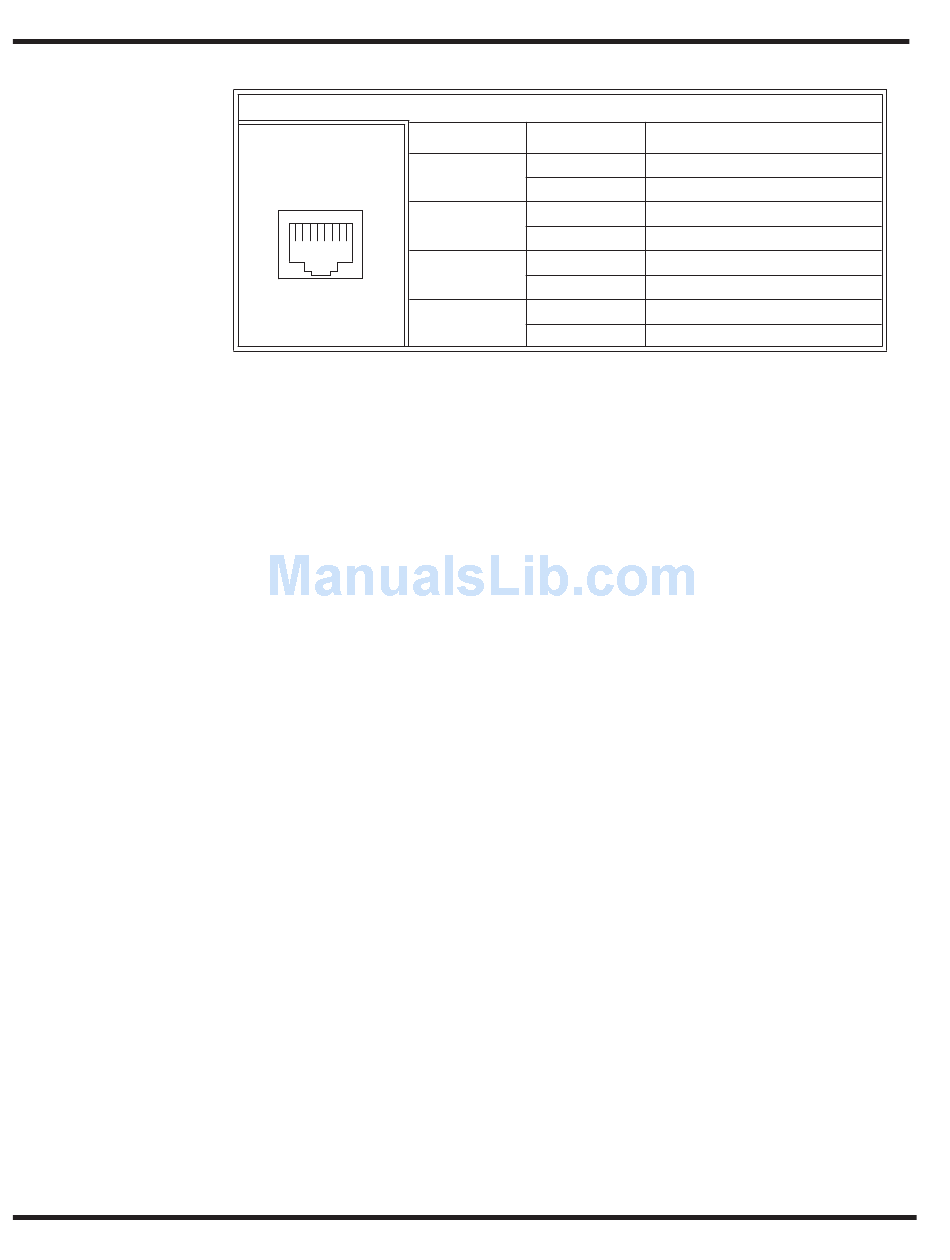

RJ61 Cable Connector - CN2
Line No. Pin No.
1 5
4
2 3
6
3 2
7
4 1
8
Connection
Tip
Ring
Tip
Ring
Tip
Ring
Tip
Ring
