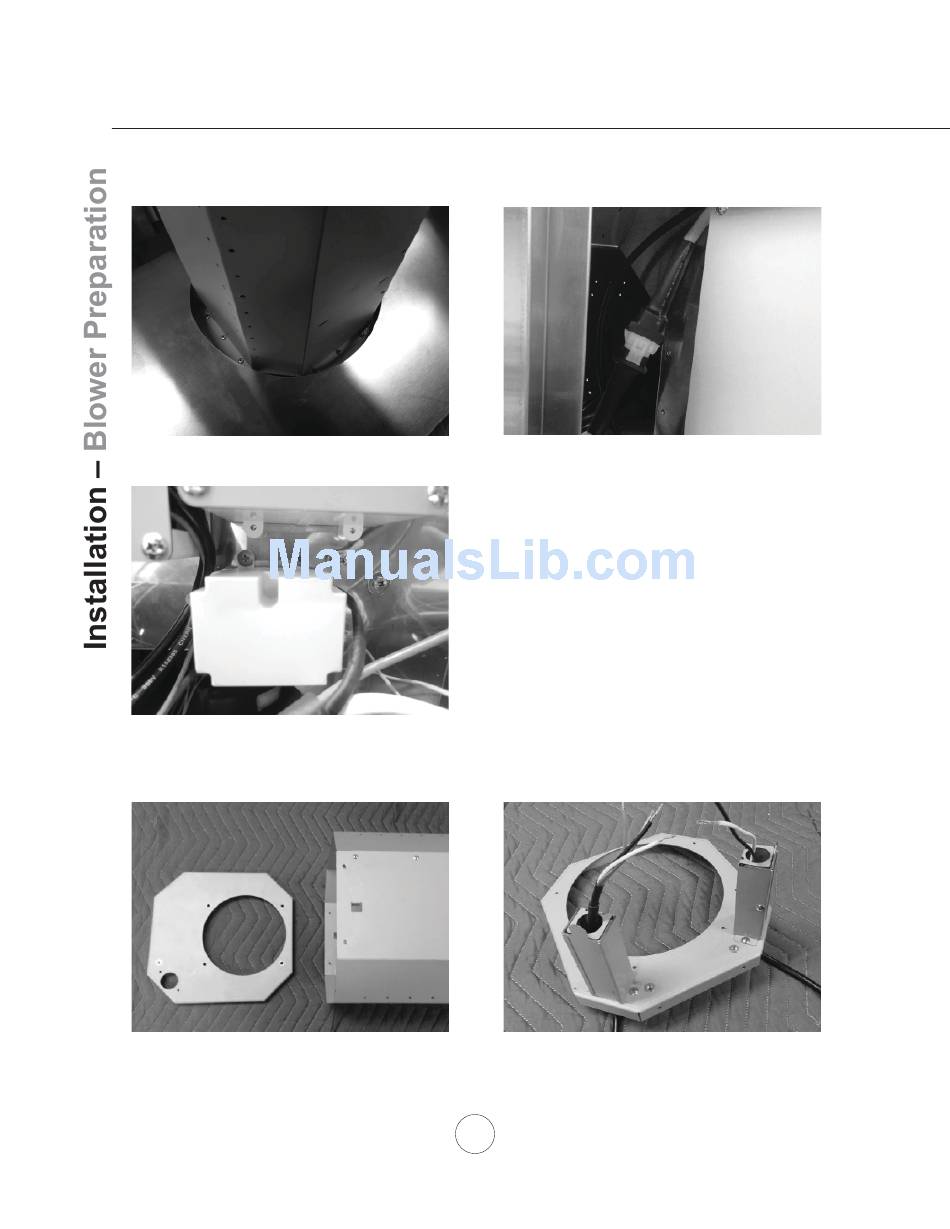

INTERNAL BLOWER PREPARATION CONT.
7. Secure motor housing to hood body by (12) M4*6
screws.
9. Secure capacitor box to internal hood body by
(2) M4*8 screws and secure ground wire by (1)
3/16*3/8 screws.
REMOTE BLOWER PREPARATION
1. Remove internal blower fl ange from motor
housing by (6) screws.
8. Connect 6 pin molex connector from capacitor
cable to 6 pin molex connector from control box.
Connect 2 pin plug from AC power cable to 2 pin
plug from control box. Secure cables to hood
interior with zip ties and zip tie holders.
2. Secure AC power box and remove blower
wiring box to remote blower fl ange by (2) M4*8
screws each.
