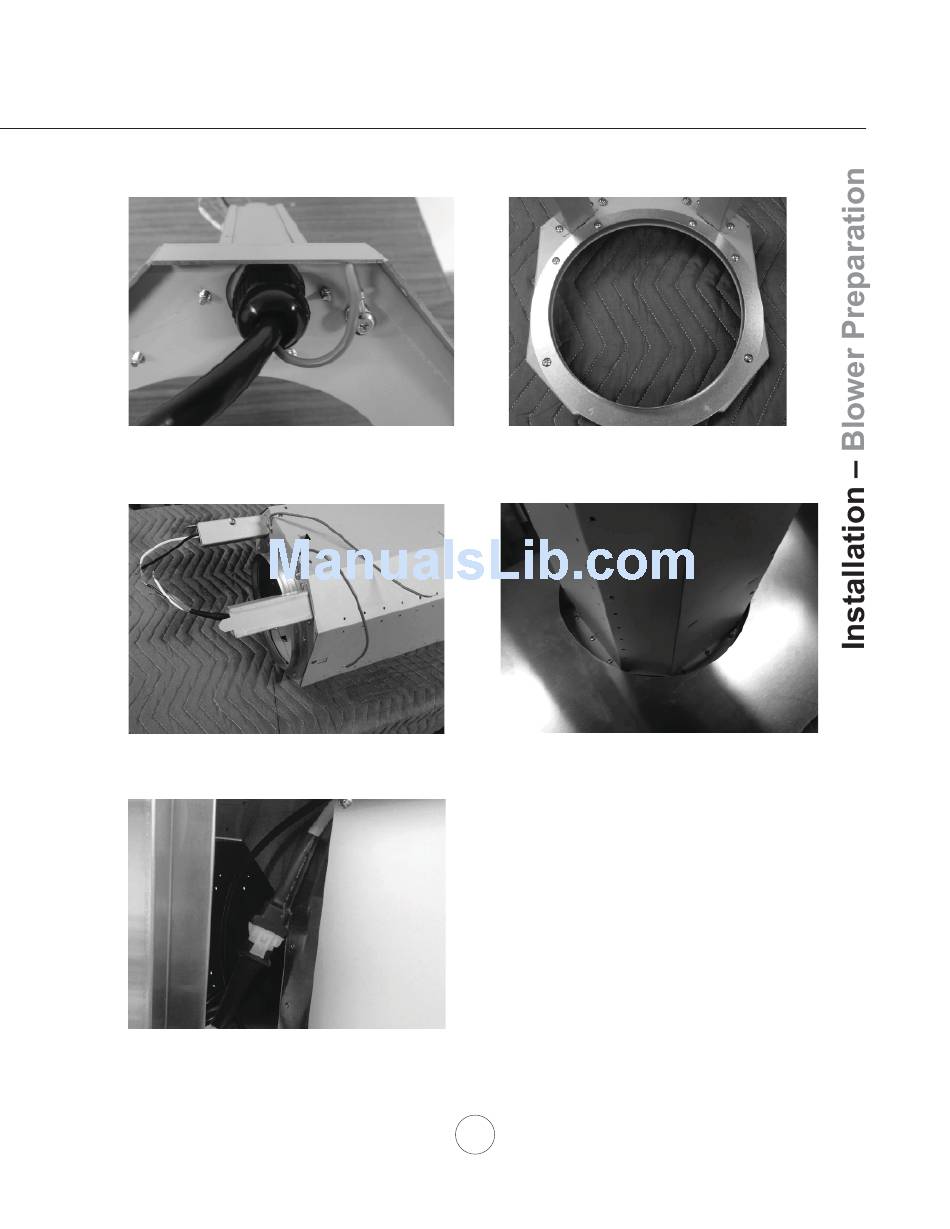

REMOTE BLOWER PREPARATION CONT.
3. Secure AC power ground wire and remote
blower ground wire to underside of remote
blower fl ange by (1) 3/16*3/8 screw and (1)
washer each.
5. Secure remote blower fl ange to motor housing
using (6) screws previously removed from step 1.
7. Connect 6 pin molex connector from remote
blower wiring box to 6 pin molex connector from
control box. Connect 2 pin plug from AC power
cable to 2 pin plug from control box. Secure
cables to hood interior with zip ties and zip tie
holders.
4. Secure remote blower 8" round collar to remote
blower fl ange by (8) M4*8 screws.
6. Secure motor housing to hood body by (12)
M4*6 screws.
NOTE: For instructions on mounting the remote
blower please refer to the CBE-1000 or PBN-
1000A remote blower manual included in the
remote blower packaging or on our website at
www.zephyronline.com
