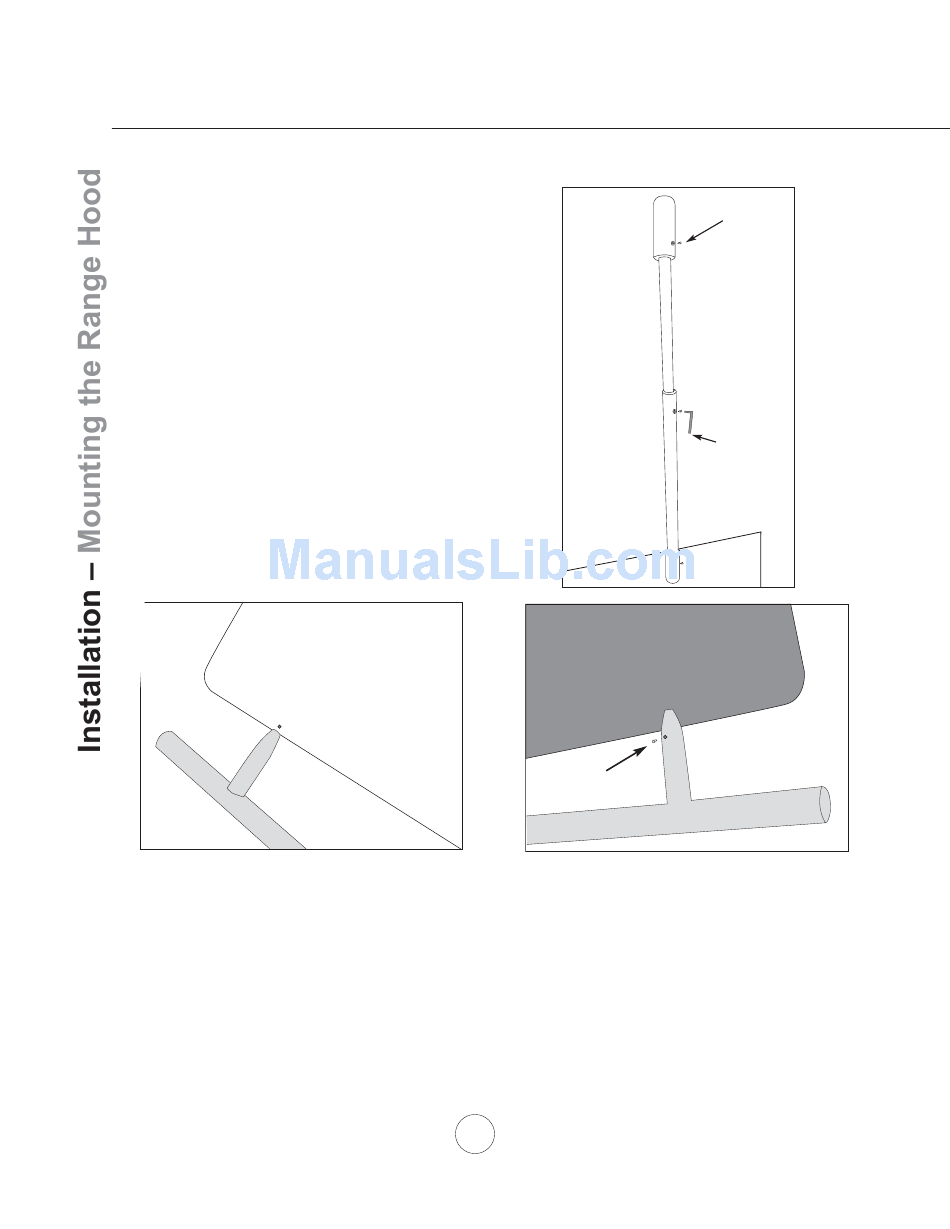

Telescopic Rod Installation
1. Install telescopic rod (thicker end down) into coupler on top of
hood and secure by (1) M4*4 set screw for each rod.
2. Extend inner telescopic rod to ceiling coupler and attach by (1)
M4*4 set screw for each rod.
3. Secure telescopic rods together at top of outer rod by (1) M4*4
set screw for each rod set.
FRONT
Utensil Rail Installation
1. Attach utensil rail to long side of hood canopy. A small hole has been pre-drilled into the canopy to provide a starting
point to attach the fi rst utensil rail post. After the fi rst post is lined up with the hole, gently slide the rest of the rail
onto the canopy. Use caution and be careful not to scratch the stainless steel of the canopy when performing this
step.
2. Secure utensil rail to hood canopy by (1) M4*4 set screw pre-installed into each post. Repeat step for other side of
canopy.
Set
screw
14
