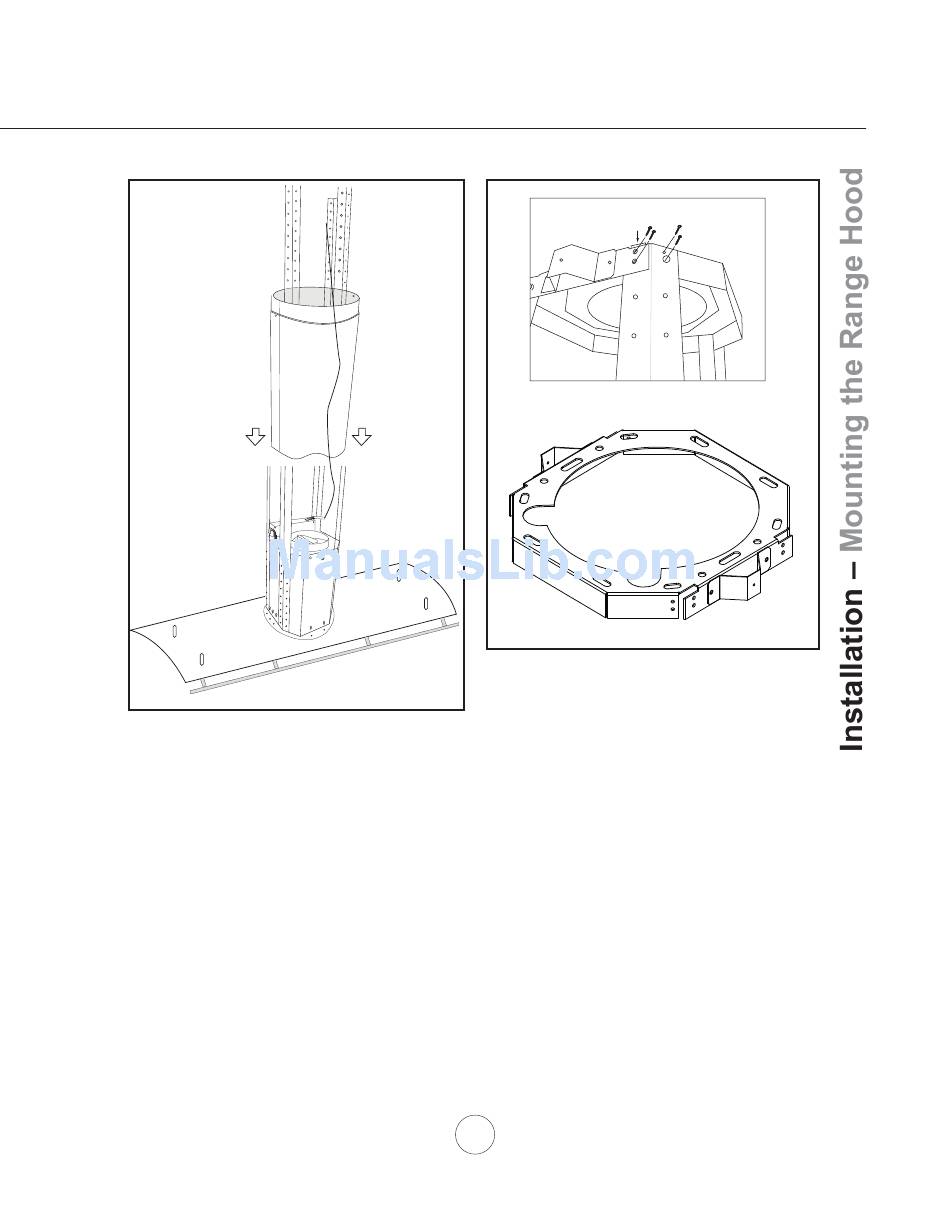

7. Determine desired height of hood, measure and select either 27 3/8" or 35 3/8" angle brackets. Position
and attach angle brackets type A and B to the motor housing as shown using (8) M4*6 screws, (2) for each
angle bracket. FIG. 3.
8. Slide duct covers over motor housing. Make sure bottom duct cover with cut-out is facing the front and back
of hood. FIG. 3.
9. Lift assembled unit and attach all (4) angle brackets to ceiling bracket. Make sure the tabs on each angle
bracket fi t between the slots on the ceiling bracket. One half of the angle bracket will be outside the ceiling
bracket and the other half outside the ceiling bracket. Attach angle brackets to ceiling brakcet using (16)
M4*6 screws, (4) for each angle bracket. FIG. 4.
10. Connect duct work and electrical wiring.
11. Slide up upper duct cover and attach to ceiling bracket using (2) M3*5 screws.
A
B
FIG. 4
FIG. 3
13
Tab
A
B
B
A
