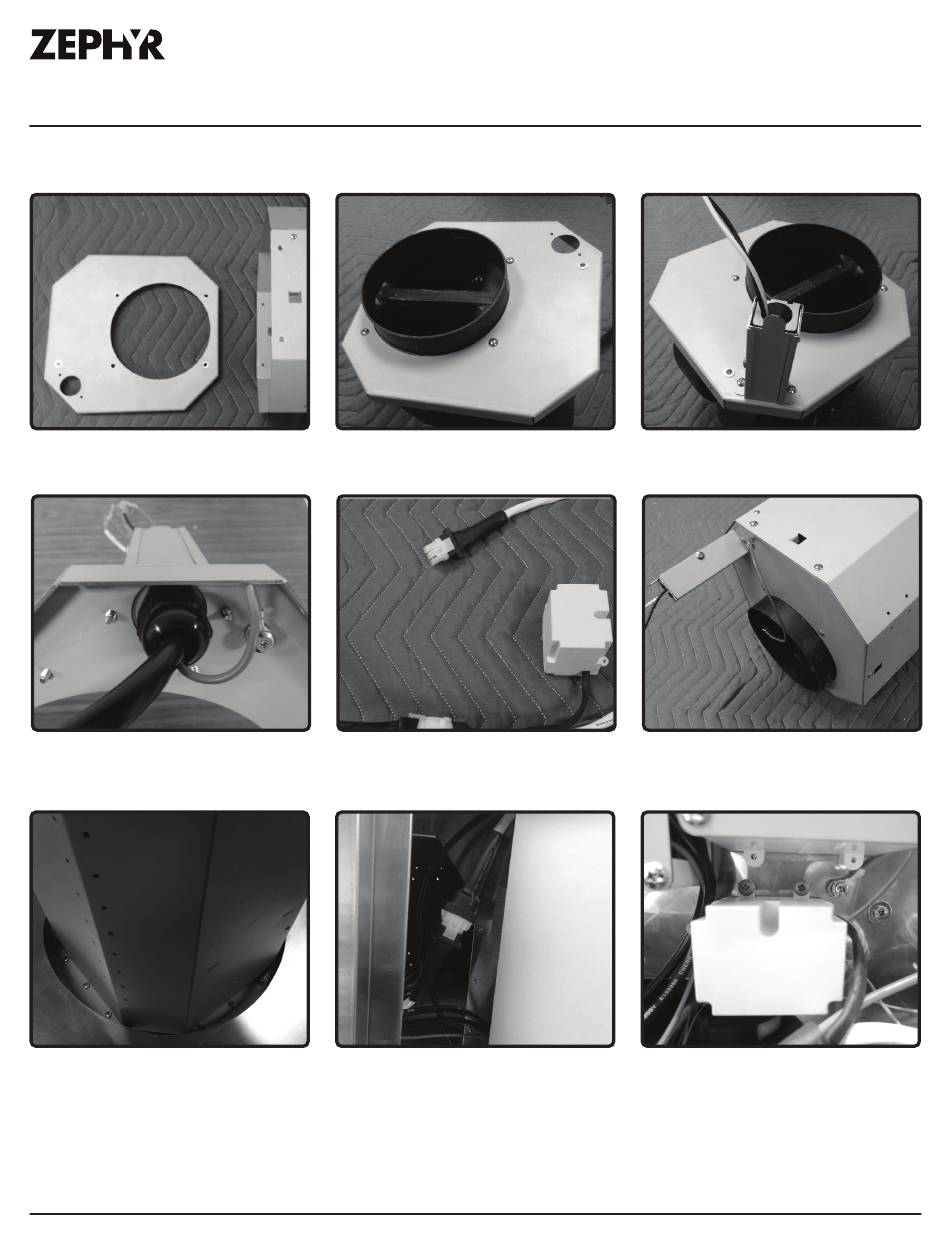

Internal Blower Preparation

1. Remove internal blower flange
from motor housing by (6) screws.
4. Secure ground wire to underside
of internal blower flange by (1)
3/16*3/8 screw and (1) washer.
7. Secure motor housing to hood
body by (12) M4*6 screws.
Trapeze Use, Care, and Installation Guide
Installation Instructions
2. Secure internal blower to internal
blower flange by (4) M4*16 screws
from internal blower hardware.
5. Connect 9 pin molex connector
from capacitor cable to 9 pin
molex connector from internal
blower.
8. Connect 6 pin molex connector
from capacitor cable to 6 pin
molex connector from control
box. Connect 2 pin plug from AC
power cable to 2 pin plug from
control box. Secure cables to
hood interior with zip ties and zip
tie holders.
3. Secure AC power wiring box to
internal blower flange by (2) M4*8
screws.
6. Re-install internal blower flange
to motor housing by (6) screws
previously removed from step 1.
9. Secure capacitor box to internal
hood body by (2) M4*8 screws
and secure ground wire by (1)
3/16*3/8 screws.
