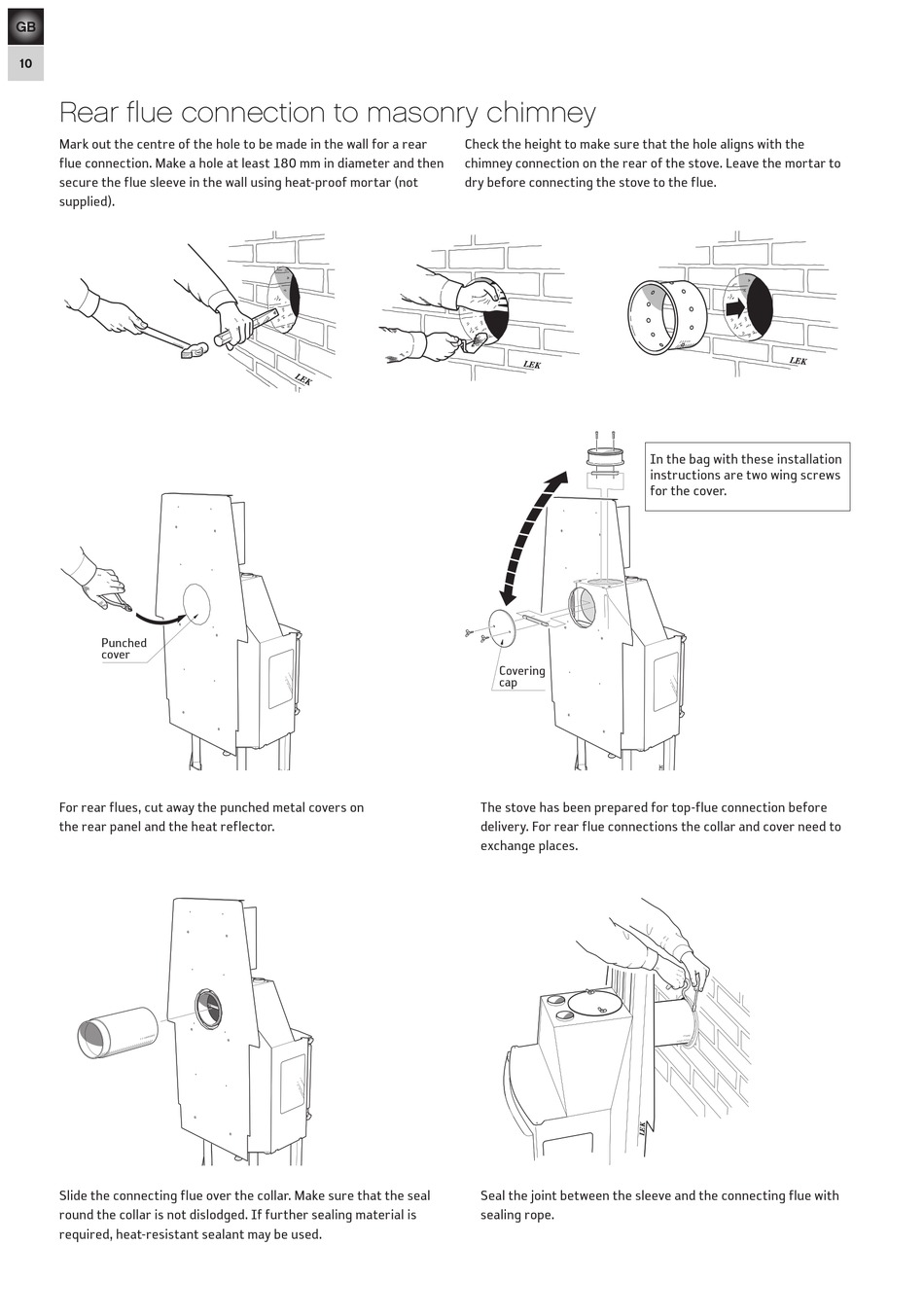

Rear flue connection to masonry chimney

Mark out the centre of the hole to be made in the wall for a rear
flue connection. Make a hole at least 180 mm in diameter and then
secure the flue sleeve in the wall using heat-proof mortar (not
supplied).
Punched
cover Brytlock
For rear flues, cut away the punched metal covers on
the rear panel and the heat reflector.
Slide the connecting flue over the collar. Make sure that the seal
round the collar is not dislodged. If further sealing material is
required, heat-resistant sealant may be used.
Check the height to make sure that the hole aligns with the
chimney connection on the rear of the stove. Leave the mortar to
dry before connecting the stove to the flue.
Covering
Täcklock
cap
The stove has been prepared for top-flue connection before
delivery. For rear flue connections the collar and cover need to
exchange places.
Seal the joint between the sleeve and the connecting flue with
sealing rope.
In the bag with these installation
instructions are two wing screws
for the cover.
