Connection to chimney

• The stove meets the requirements for connecting to chimneys
dimensioned for flue gas temperatures of 350°C.
• The external diameter of the connection sleeve is 150 mm.
• The stove requires a draft in the chimney of at least –12 Pa. The
draft is affected both by the length and area of the chimney, and
by how well sealed it is. The minimum recommended chimney
length is 3.5 m and suitable cross sectional area is 150-200 cm²
(140-160 mm in diameter).

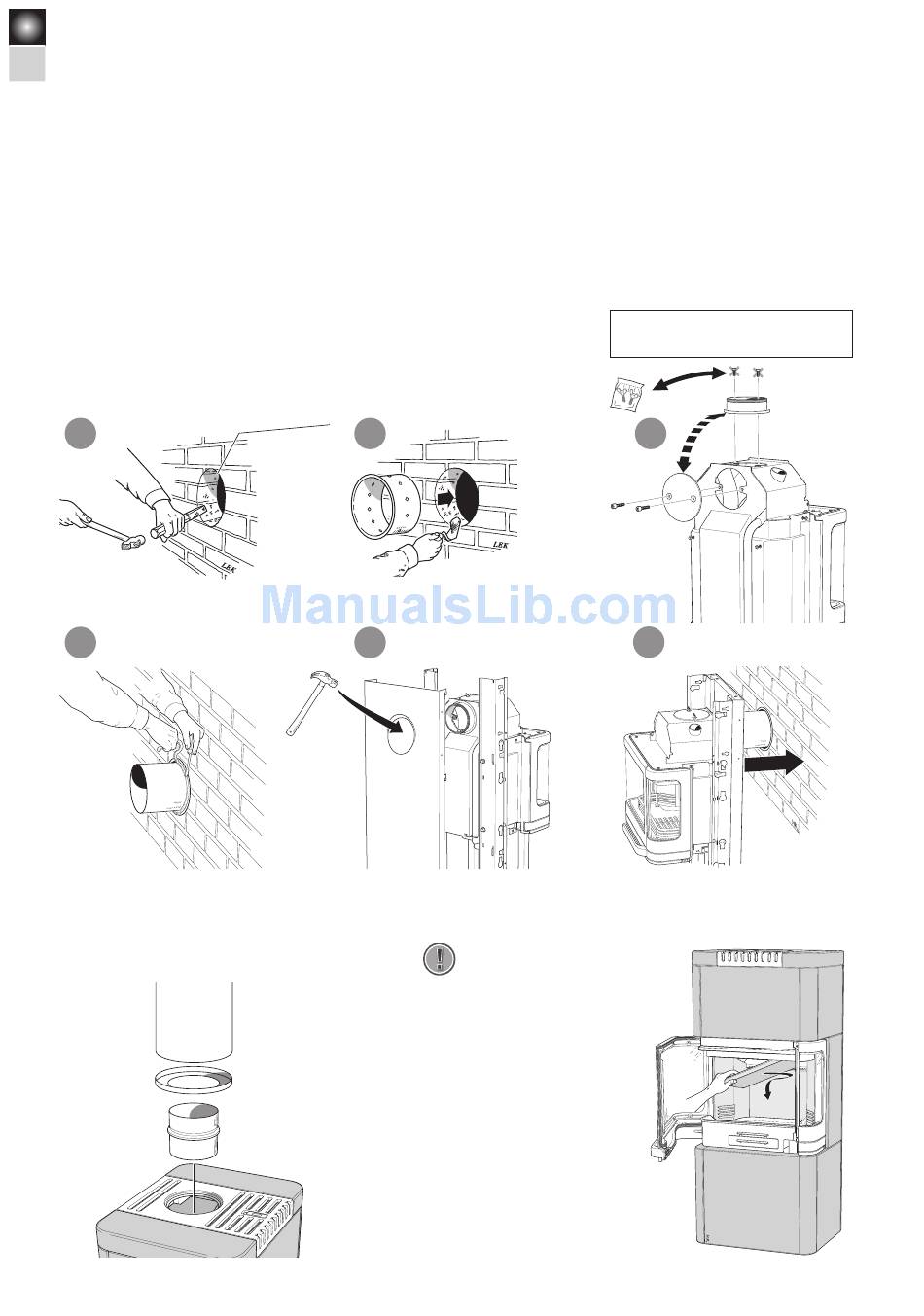

Rear connection to a masonry chimney
The back panel must be installed before the stove is connected at the
rear.
Ø
c a 1 8 0 m m
1
4
Top connection to the chimney
The hot air grille must be installed before the chimney
is connected to the top.
Ø
c a 1 8 0 m m
2
5
• A flue with sharp bends and horizontal routing reduces the
draught in the chimney. The maximum horizontal flue is 1 m, on
the condition that the vertical flue length is at least 5 m.
• It must be possible to sweep the full length of the flue and the
soot doors must be easily accessible.
• Carefully check that the chimney is sealed and that there is no
leakage around soot doors and flue connections.
Make sure that the connector
!
gasket does not come loose
when the connection pipe is
placed on the sleeve. If further
sealing material is required, heat-
resistant sealant may be used.
Sweeping
When sweeping, the smoke
baffle must be removed; on the
Contura 20 series this is easily
done by lifting and then pushing
the baffle to the side.
In the bag with these installation instructions
are two wing screws for the cover.
3
6
