Configuration Manual
Ascom d81 DECT Handset
Element
Vibration
Repeat
1
( ( *6 *6vibeon vibeonc3

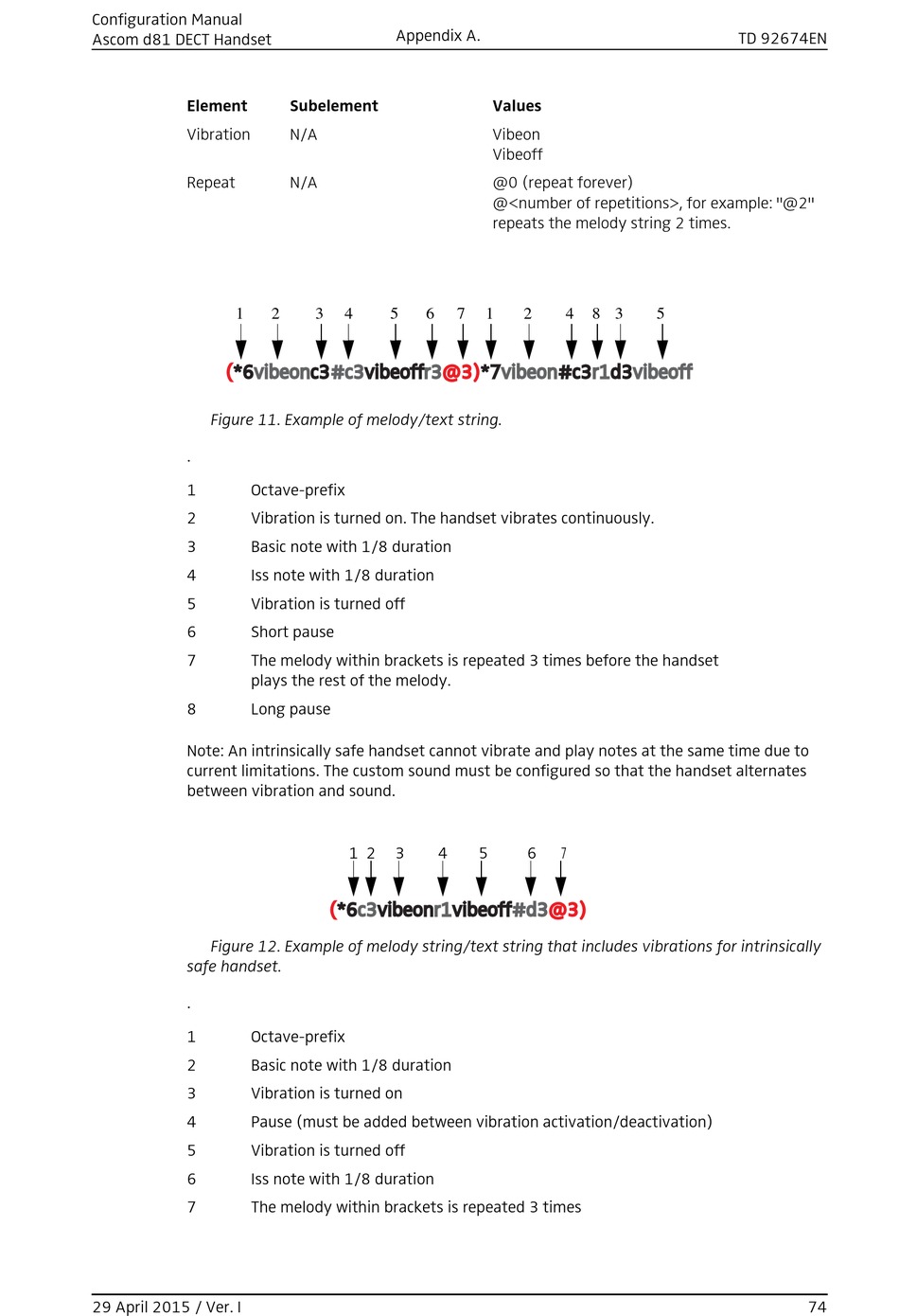

Figure 11. Example of melody/text string.
.
1 Octave-prefix
2 Vibration is turned on. The handset vibrates continuously.
3 Basic note with 1/8 duration
4 Iss note with 1/8 duration
5 Vibration is turned off
6 Short pause
7 The melody within brackets is repeated 3 times before the handset
plays the rest of the melody.
8 Long pause
Note: An intrinsically safe handset cannot vibrate and play notes at the same time due to
current limitations. The custom sound must be configured so that the handset alternates
between vibration and sound.
Figure 12. Example of melody string/text string that includes vibrations for intrinsically
safe handset.
.
1 Octave-prefix
2 Basic note with 1/8 duration
3 Vibration is turned on
4 Pause (must be added between vibration activation/deactivation)
5 Vibration is turned off
6 Iss note with 1/8 duration
7 The melody within brackets is repeated 3 times
29 April 2015 / Ver. I
Appendix A.
Subelement
N/A
N/A
2 3 4 5 6
c3#c3 #c3vibeoff vibeoffr3 r3@3)
1 2 3 4
( ( *6 *6c3 c3vibeon vibeonr1 r1vibeoff
Values
Vibeon
Vibeoff
@0 (repeat forever)
@<number of repetitions>, for example: "@2"
repeats the melody string 2 times.
7 1 2 4 8 3
@3)*7 *7vibeon vibeon#c3 #c3r1 r1d3 d3vibeoff
5 6 7
vibeoff#d3 #d3@3) @3)
TD 92674EN
5
vibeoff
74
