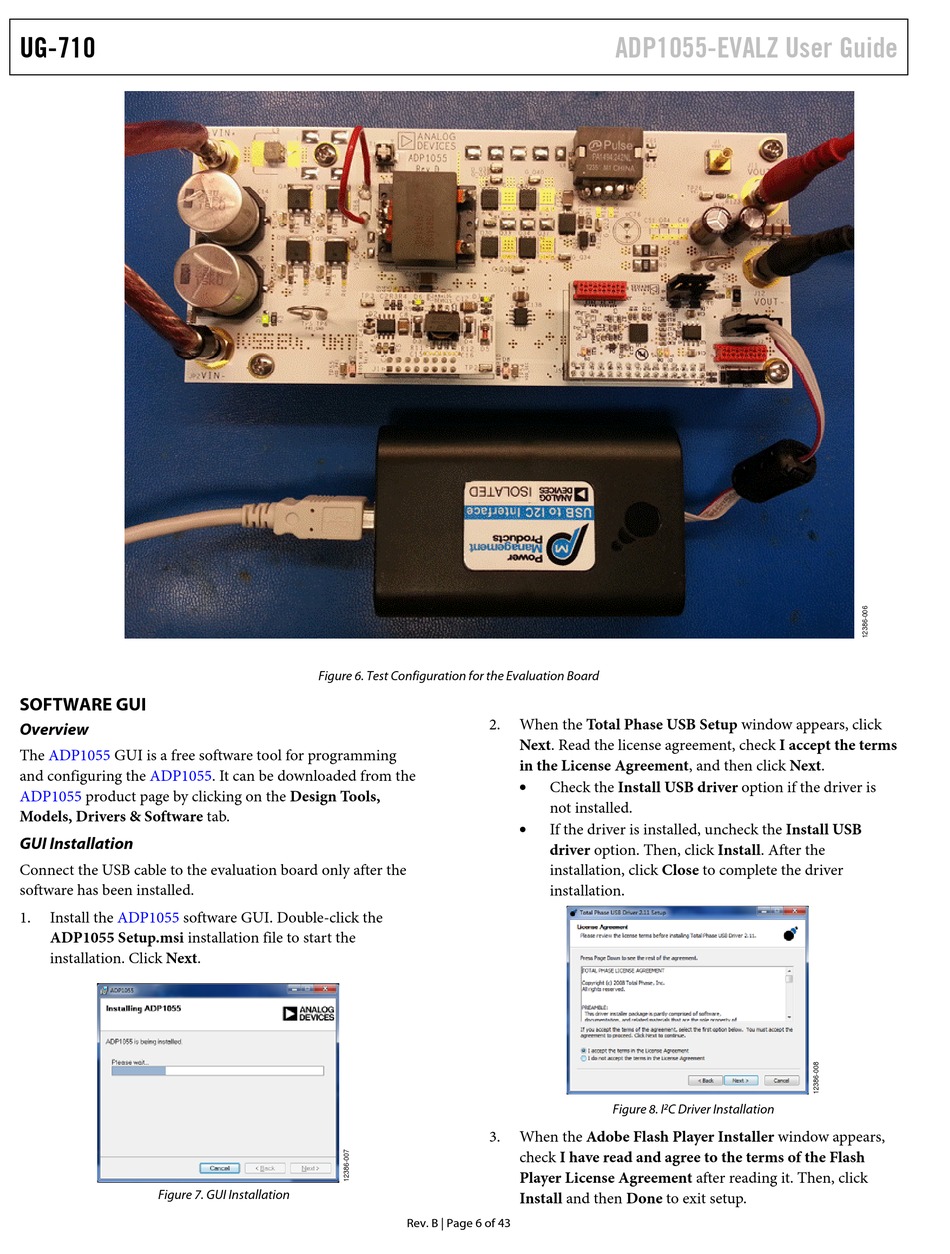

Software Gui - Analog Devices ADP1055-EVALZ User Manual

UG-710

SOFTWARE GUI

Overview
The ADP1055 GUI is a free software tool for programming
and configuring the ADP1055. It can be downloaded from the
ADP1055 product page by clicking on the Design Tools,
Models, Drivers & Software tab.
GUI Installation
Connect the USB cable to the evaluation board only after the
software has been installed.
1. Install the ADP1055 software GUI. Double-click the
ADP1055 Setup.msi installation file to start the
installation. Click Next.
Figure 7. GUI Installation
Figure 6. Test Configuration for the Evaluation Board
2.
3.
Rev. B | Page 6 of 43
ADP1055-EVALZ User Guide
When the Total Phase USB Setup window appears, click
Next. Read the license agreement, check I accept the terms
in the License Agreement, and then click Next.

Check the Install USB driver option if the driver is
not installed.

If the driver is installed, uncheck the Install USB
driver option. Then, click Install. After the
installation, click Close to complete the driver
installation.
2
Figure 8. I C Driver Installation
When the Adobe Flash Player Installer window appears,
check I have read and agree to the terms of the Flash
Player License Agreement after reading it. Then, click
Install and then Done to exit setup.
